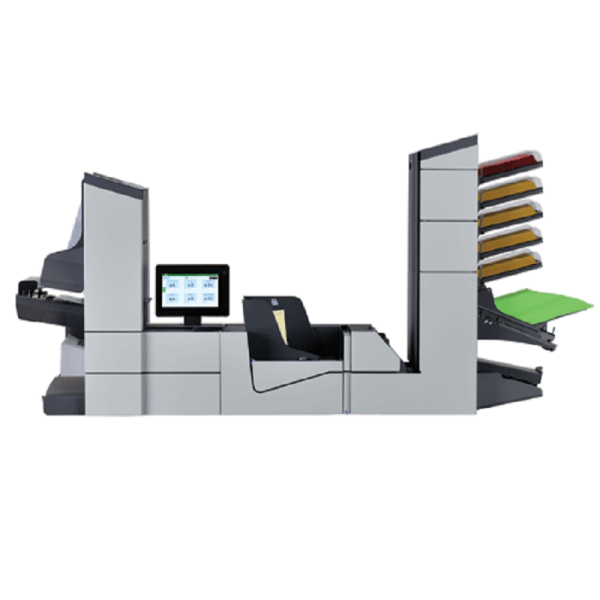

Formax FD 6608-Standard 2 Folder Inserter, Two Station w/ 2 Standard Feeders
secure transaction
- Folder Inserter, Two Station w/ 2 Standard Feeders
- Feeder Capacity Up to 325 sheets, 20# paper (each feeder) / 725 (Production Feeder)
- Envelope Hopper Capacity Up to 500 envelopes, top-loading
- Vertical Output Stacker Up to 500 filled envelopes
- Fold Types C, Half, Z, Double Parallel and no fold
- Max Number of Full Page Inserts 10 Sheets (half fold), 8 sheets (tri fold)
- Speed Up to 4,300 pieces per hour, #10 envelopes
- Duty Cycle Up to 80,000 pieces per month
- Programmable Jobs Up to 50
- Paper Size 3.5” - 14” L x 5.1” - 9” W
- Envelope Size 6.3” - 9.7” L x 3.5” - 6.3” W
- Voltage 100 Volts AC 50/60Hz
Formax FD 6608-Standard 2 Folder Inserter, Two Station w/ 2 Standard Feeders
Product Type Folder Inserter Model No. FD 6608-Standard 2 Feeder Capacity Up to 325 sheets, 20# paper (each feeder) / 725 (Production Feeder) Envelope Hopper Capacity Up to 500 envelopes, top-loading Vertical Output Stacker Up to 500 filled envelopes Fold Types C, Half, Z, Double Parallel and no fold Max Number of Full Page Inserts 10 Sheets (half fold), 8 sheets (tri fold) Speed Up to 4,300 pieces per hour, #10 envelopes Duty Cycle Up to 80,000 pieces per month Programmable Jobs Up to 50 Paper Size 3.5” - 14” L x 5.1” - 9” W Envelope Size* 6.3” - 9.7” L x 3.5” - 6.3” W Dimensions 60” L x 31” H x 18” D Dimensions with Thin Booklet Feeder 79” L x 31” H x 18” D Weight Approx. 242 lbs Voltage 100 Volts AC 50/60Hz
Popup Text
No Expert Install
$349.00 Expert Install
Installation Service for equipment includes the following:
JTF will schedule an appointment with one person per site. Unless otherwise requested and/or scheduled, the standard practice is to start all installation services within one week the delivery of the hardware to the customer’s location.
Unpacking: JTF will inventory the shipment against the packing list, unpack and install all delivered products.
Setup/Installation: JTF will physically assemble, connect peripherals, network cables, and power cords that were purchased from JTF.
a. This service provides installation of drivers on a single PC workstation (not server), network setup, including the programming of the IP address and network settings and verification of the network functionality, wireless connection setup and verification of the functionality over the Internet.
b. For configuration networking, the Customer can choose between automatic configuration using BOOTCP or Dynamic Host Configuration Protocol (DHCP), or manual configuration with IP address, default gateway, and subnet mask.
c. For multifunction products, the service provides setup of the ‘send to email configuration’ and configuration of the SMTP or LDAP.
d. This service provides the Customer-identified key operator with a basic overview on how to install consumables, plus explanations of basic features and functionality such as drivers, control panel features, embedded Web server, and alerts.
