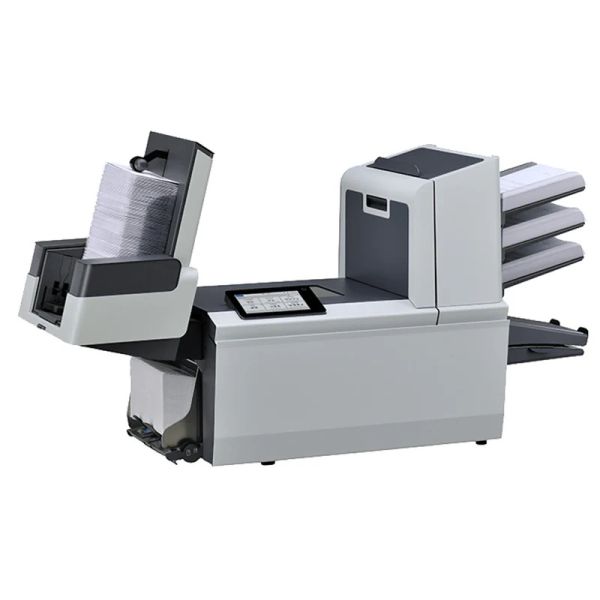

Formax FD 6308 ProFold Standard 3i Inserter
secure transactionFormax FD 6308 ProFold Standard 3i Inserter
The Formax FD 6308 ProFold Standard 3i Inserter is an advanced, fully automated folder inserter engineered for high-volume mailing environments. Featuring three standard feeders, it provides exceptional flexibility for handling multiple documents and paper types simultaneously. This model is equipped with advanced reading hardware and a Multi-Read License 2, allowing reliable reading of OMR, 1D and 2D barcodes, and other document identifiers to ensure accurate job processing. With a 7” full-color touchscreen for intuitive control and easy job setup, the FD 6308 Standard 3i streamlines complex mailing workflows. Designed for businesses such as financial institutions, healthcare providers, and corporate mailrooms, it offers a perfect blend of speed, accuracy, and versatility.
Formax FD 6308 - Comes Standard With:
- Three standard feeders (each holds up to 325 sheets of 20# bond paper)
- OMR, 1D, and 2D barcode reading hardware
- Multi-Read License 2 for advanced document reading
- 7” full-color touchscreen interface for easy setup and operation
- Top-loading envelope hopper (up to 325 envelopes)
- Vertical output stacker (holds up to 500 filled envelopes)
- Supports C, V, Z, Double Parallel, and No Fold types
- Double document detection system to ensure accuracy
- Eco mode for energy savings
- Sealing and non-sealing options available
- Clamshell design for easy maintenance
- Up to 50 programmable jobs
- Media compatibility: Sheets (3.5"–14" H x 5"–9" W) and Envelopes (3.5"–6.4" H x 5.5"–9.8" W)
Formax FD 6308 ProFold Standard 3i Inserter
| Product Name | Formax FD 6308 ProFold Standard 3i Inserter |
| Processing Speed | Up to 3,800 pieces per hour |
| Monthly Duty Cycle | Up to 40,000 pieces |
| Fold Types Supported | C, V, Z, Double Parallel, No Fold |
| Standard Feeders | 3 standard feeders (each holds up to 325 sheets of 20# bond paper) |
| Reading Hardware | OMR, 1D, and 2D barcode reading system |
| Multi-Read License | Multi-Read License 2 included for advanced reading capabilities |
| Envelope Hopper Capacity | Up to 325 envelopes (top-loading) |
| Vertical Stacker Capacity | Up to 500 filled envelopes |
| Sheet Size Range | 3.5"–14" Height x 5"–9" Width |
| Envelope Size Range | 3.5"–6.4" Height x 5.5"–9.8" Width |
| Programmable Jobs | Up to 50 programmable jobs |
| Maximum Insert Thickness | 1 mm |
| Maximum Set Thickness | 2.5 mm |
| Control Interface | 7" full-color touchscreen graphical interface |
| Energy Efficiency | Eco mode available |
| Sealing Capability | Supports both sealing and non-sealing operations |
| Document Detection | Double document detection system |
| Clamshell Design | Easy access to paper path for maintenance |
Popup Text
No Expert Install
$349.00 Expert Install
Installation Service for equipment includes the following:
JTF will schedule an appointment with one person per site. Unless otherwise requested and/or scheduled, the standard practice is to start all installation services within one week the delivery of the hardware to the customer’s location.
Unpacking: JTF will inventory the shipment against the packing list, unpack and install all delivered products.
Setup/Installation: JTF will physically assemble, connect peripherals, network cables, and power cords that were purchased from JTF.
a. This service provides installation of drivers on a single PC workstation (not server), network setup, including the programming of the IP address and network settings and verification of the network functionality, wireless connection setup and verification of the functionality over the Internet.
b. For configuration networking, the Customer can choose between automatic configuration using BOOTCP or Dynamic Host Configuration Protocol (DHCP), or manual configuration with IP address, default gateway, and subnet mask.
c. For multifunction products, the service provides setup of the ‘send to email configuration’ and configuration of the SMTP or LDAP.
d. This service provides the Customer-identified key operator with a basic overview on how to install consumables, plus explanations of basic features and functionality such as drivers, control panel features, embedded Web server, and alerts.
