Formax FD 6308 ProFold Standard 2F Inserter
secure transactionFormax FD 6308 ProFold Standard 2F Inserter

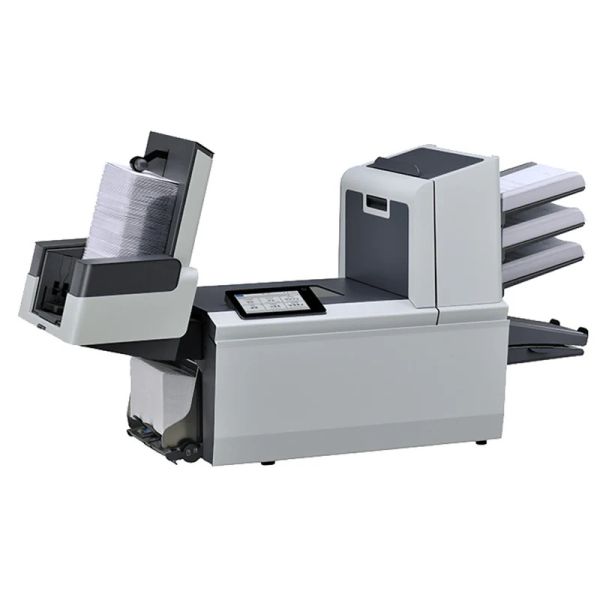

The Formax FD 6308 ProFold Standard 2F Inserter is a robust and efficient folder inserter solution designed for mid-volume mailing operations. It features two feeder stations: one high-capacity document feeder and one standard feeder, allowing seamless handling of large batch jobs with diverse media types. The unit supports multiple fold types (C, V, Z, Double Parallel, and No Fold) and is equipped with a 7” full-color touchscreen for easy programming and control. With a high-capacity envelope hopper and vertical output stacker, the FD 6308 Standard 2F maximizes productivity while maintaining precision with its double document detection system. Ideal for businesses needing reliable document handling in corporate, financial, and healthcare environments.
Formax FD 6308 - Comes Standard With:
- One high-capacity document feeder (holds up to 500 sheets of 20# bond paper)
- One standard feeder (325 sheets capacity)
- 7” full-color touchscreen graphical interface
- Top-loading envelope hopper (325 envelope capacity)
- Vertical output stacker (up to 500 filled envelopes)
- Supports C, V, Z, Double Parallel, and No Fold types
- Double document detection system for accurate feeding
- Eco mode for energy efficiency
- Sealing and non-sealing operational modes
- Clamshell design for easy path access and maintenance
- Up to 50 programmable jobs
- Wide media size support: Sheets (3.5"–14" H x 5"–9" W) and Envelopes (3.5"–6.4" H x 5.5"–9.8" W)
Formax FD 6308 ProFold Standard 2F Inserter
| Product Name | Formax FD 6308 ProFold Standard 2F Inserter |
| Processing Speed | Up to 3,800 pieces per hour |
| Monthly Duty Cycle | Up to 40,000 pieces |
| Fold Types Supported | C, V, Z, Double Parallel, No Fold |
| High-Capacity Document Feeder | Holds up to 500 sheets of 20# bond paper |
| Standard Feeder | Holds up to 325 sheets of 20# bond paper |
| Envelope Hopper Capacity | Up to 325 envelopes (top-loading) |
| Vertical Stacker Capacity | Up to 500 filled envelopes |
| Sheet Size Range | 3.5"–14" Height x 5"–9" Width |
| Envelope Size Range | 3.5"–6.4" Height x 5.5"–9.8" Width |
| Programmable Jobs | Up to 50 programmable jobs |
| Maximum Insert Thickness | 1 mm |
| Maximum Set Thickness | 2.5 mm |
| Control Interface | 7" full-color touchscreen graphical interface |
| Energy Efficiency | Eco mode available |
| Sealing Capability | Supports both sealing and non-sealing operations |
| Document Detection | Double document detection system |
| Clamshell Design | Easy access to paper path for maintenance |
Popup Text
No Expert Install
$349.00 Expert Install
Installation Service for equipment includes the following:
JTF will schedule an appointment with one person per site. Unless otherwise requested and/or scheduled, the standard practice is to start all installation services within one week the delivery of the hardware to the customer’s location.
Unpacking: JTF will inventory the shipment against the packing list, unpack and install all delivered products.
Setup/Installation: JTF will physically assemble, connect peripherals, network cables, and power cords that were purchased from JTF.
a. This service provides installation of drivers on a single PC workstation (not server), network setup, including the programming of the IP address and network settings and verification of the network functionality, wireless connection setup and verification of the functionality over the Internet.
b. For configuration networking, the Customer can choose between automatic configuration using BOOTCP or Dynamic Host Configuration Protocol (DHCP), or manual configuration with IP address, default gateway, and subnet mask.
c. For multifunction products, the service provides setup of the ‘send to email configuration’ and configuration of the SMTP or LDAP.
d. This service provides the Customer-identified key operator with a basic overview on how to install consumables, plus explanations of basic features and functionality such as drivers, control panel features, embedded Web server, and alerts.
