Formax FD 6308 ProFold Special 2F Inserter
secure transactionFormax FD 6308 ProFold Special 2F Inserter

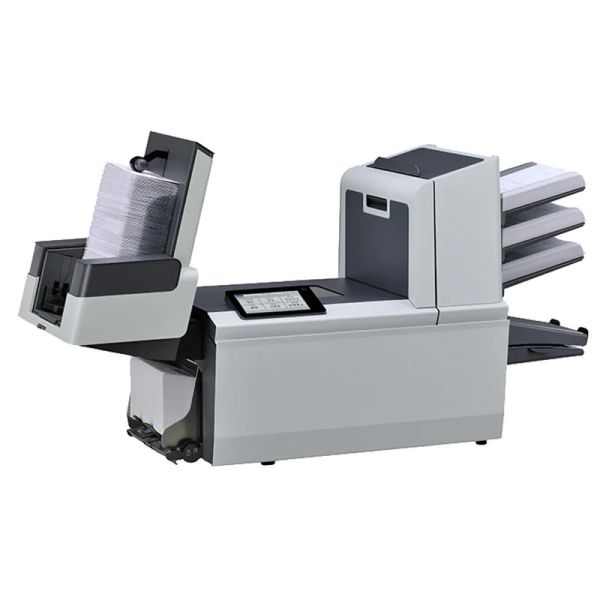

The Formax FD 6308 ProFold Special 2F Inserter is a high-efficiency folder inserter designed to meet the demanding needs of mid to high-volume mailing operations. This powerful machine features two feeder stations: one high-capacity document feeder and one special feeder located at the bottom, enabling flexible media handling for complex jobs. Supporting a wide range of fold types (C, V, Z, Double Parallel, No Fold), the unit is built for accuracy and speed. A 7" full-color touchscreen makes operation easy and intuitive, while the integrated double document detection system prevents misfeeds. Ideal for businesses such as financial institutions, healthcare providers, and corporate mailrooms, the FD 6308 Special 2F ensures reliable, efficient document processing.
Formax FD 6308- Comes Standard With:
- One high-capacity document feeder (up to 500 sheets of 20# bond paper)
- One special feeder on the bottom for inserts, cards, or labels
- 7” full-color touchscreen interface for easy programming
- Top-loading envelope hopper (up to 325 envelopes)
- Vertical output stacker (holds up to 500 completed envelopes)
- Supports C, V, Z, Double Parallel, and No Fold types
- Double document detection system for precise processing
- Eco mode to reduce power usage
- Sealing and non-sealing modes available
- Clamshell design for easy access to the paper and envelope path
- Up to 50 programmable jobs
- Wide media support: Sheets (3.5"–14" H x 5"–9" W) and Envelopes (3.5"–6.4" H x 5.5"–9.8" W)
Formax FD 6308 ProFold Special 2F Inserter
| Product Name | Formax FD 6308 ProFold Special 2F Inserter |
| Processing Speed | Up to 3,800 pieces per hour |
| Monthly Duty Cycle | Up to 40,000 pieces |
| Fold Types Supported | C, V, Z, Double Parallel, No Fold |
| High-Capacity Document Feeder | Holds up to 500 sheets of 20# bond paper |
| Special Feeder | Bottom-positioned special feeder (ideal for inserts, cards, or labels) |
| Envelope Hopper Capacity | Up to 325 envelopes (top-loading) |
| Vertical Stacker Capacity | Up to 500 filled envelopes |
| Sheet Size Range | 3.5"–14" Height x 5"–9" Width |
| Envelope Size Range | 3.5"–6.4" Height x 5.5"–9.8" Width |
| Programmable Jobs | Up to 50 programmable jobs |
| Maximum Insert Thickness | 1 mm |
| Maximum Set Thickness | 2.5 mm |
| Control Interface | 7" full-color touchscreen graphical interface |
| Energy Efficiency | Eco mode available |
| Sealing Capability | Supports both sealing and non-sealing operations |
| Document Detection | Double document detection system |
| Clamshell Design | Easy access to paper path for maintenance |
Popup Text
No Expert Install
$349.00 Expert Install
Installation Service for equipment includes the following:
JTF will schedule an appointment with one person per site. Unless otherwise requested and/or scheduled, the standard practice is to start all installation services within one week the delivery of the hardware to the customer’s location.
Unpacking: JTF will inventory the shipment against the packing list, unpack and install all delivered products.
Setup/Installation: JTF will physically assemble, connect peripherals, network cables, and power cords that were purchased from JTF.
a. This service provides installation of drivers on a single PC workstation (not server), network setup, including the programming of the IP address and network settings and verification of the network functionality, wireless connection setup and verification of the functionality over the Internet.
b. For configuration networking, the Customer can choose between automatic configuration using BOOTCP or Dynamic Host Configuration Protocol (DHCP), or manual configuration with IP address, default gateway, and subnet mask.
c. For multifunction products, the service provides setup of the ‘send to email configuration’ and configuration of the SMTP or LDAP.
d. This service provides the Customer-identified key operator with a basic overview on how to install consumables, plus explanations of basic features and functionality such as drivers, control panel features, embedded Web server, and alerts.
