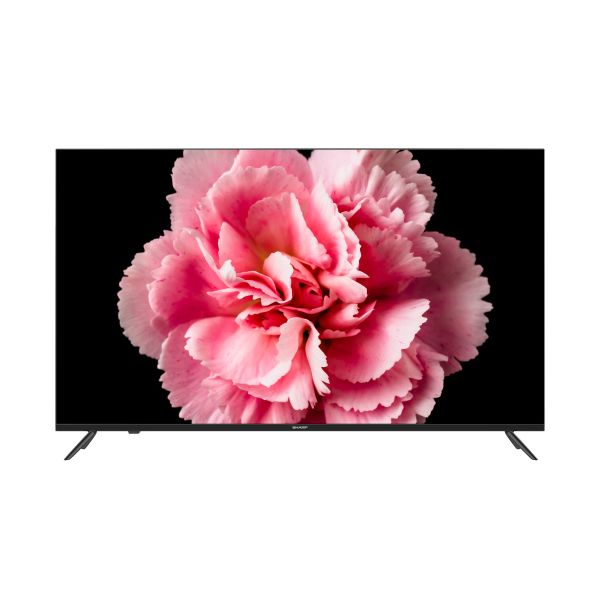

Sharp PN-E559 – 55" 4K UHD ADS Commercial Display with USB-C & Anti-Glare
secure transactionSharp PN-E559 – 55" 4K UHD ADS Commercial Display with USB-C & Anti-Glare
The Sharp PN-E559 is a 55-inch 4K UHD large format display engineered for stunning visual performance in education, business, retail, and signage applications. Featuring a 3840 × 2160 ADS LCD panel, it delivers sharp detail, vibrant colors, and a wide 178° viewing angle, ensuring clear visuals from any position. The 25% high haze anti-glare coating minimizes reflections for superior readability, even in bright spaces.
This display’s slim, uniform bezel design enhances aesthetics and allows for flexible portrait or landscape installation. With USB-C (DP-Alt Mode) and HDMI 2.0 ports, the PN-E559 offers simple, adapter-free connections to laptops, tablets, and modern devices. The integrated media player enables direct playback of videos, images, and audio via USB, while the 24-hour scheduler automates display operation for improved efficiency.
For high-traffic environments, the PN-E559 features Key Lock and IR Lock functions to prevent unauthorized settings changes. Remote control is simplified through RS-232C, LAN connectivity, and compatibility with NaViSet Administrator 2 for network-wide display management. Backed by a 3-year Limited Commercial Warranty, this display delivers professional-grade reliability, flexibility, and exceptional picture quality.
Sharp PN-E559 – 55" 4K UHD ADS Commercial Display Comes Standard With:
-
AC Power Cord (3m)
-
Cord Clamp
-
USB Port Cover
-
Infrared (IR) Remote Control
-
Two AAA Batteries for Remote
-
Factory-Integrated 10W × 10W Stereo Speakers
-
RS-232C Control Port
-
LAN (Ethernet) Connectivity
-
NaViSet Administrator 2 Software Support
-
3-Year Limited Commercial Warranty
Sharp PN-E559 – 55" 4K UHD ADS Commercial Display with USB-C & Anti-Glare
| Panel Technology | ADS LCD |
| Viewable Image Size | 54.6" (138.7 cm) |
| Native Resolution | 3840 × 2160 (4K UHD) |
| Brightness (Typical) | 350 cd/m² |
| Contrast Ratio (Typical) | 1200:1 |
| Viewing Angle | 178° Horizontal / 178° Vertical |
| Aspect Ratio | 16:9 |
| Color Gamut | 70% |
| Displayable Colors | 1.07 billion |
| Panel Haze | 25% (Anti-Reflective) |
| Orientation | Landscape / Portrait |
| Inputs | HDMI 2.0 ×1, USB-C ×1 (DP-Alt Mode Supported) |
| USB Ports | USB-A ×1 (5V/500mA), USB-C ×1 (5V/3000mA) |
| External Control | LAN (100Mbit), IR Remote, RS-232C IN (9-pin D-sub) |
| Audio Output | 3.5mm Mini Jack |
| Speakers | Integrated 10W × 10W |
| Power Consumption | 125W (Typ) / 170W (Max) |
| Standby Power | <0.5W (Normal), 2W (Network) |
| Dimensions (W×H×D) | 1234 × 707 × 58.9 mm (49.58 × 27.83 × 2.32 in) |
| Weight | 16.5 kg (36.38 lbs) |
| Bezel Width | 12.9 mm (All sides) |
| VESA Mount | 4 × M6 × 14mm (400 × 200 mm) |
| Operating Temp | 0° – 40°C |
| Operating Humidity | 20% – 80% |
| Warranty | 3-Year Limited Commercial Warranty |
| Included Accessories | AC Power Cord (3m), Cord Clamp, USB Cover, IR Remote Control, AAA Batteries |
Onsite Service
Following your purchase, JTF will assign an authorized service partner in your area to your account. Your service calls are processed and dispatched in just minutes after they are received, thus minimizing your downtimes. All service partners are authorized, factory trained and 100% endorsed by JTF Network Partners, with over 600 service dealers nationwide*
Same Day Onsite Service:
Same Day Service is provided at your business or home during the contracted Maintenance period.
Exceptions:
1) Your offices are 40 miles away from the closest service providers.
2) Service in HI, AK & PR.
Convenient Assistance:
Having device issues?
Experts are here 8am -6pm weekly to help solve your technical problems.
Fast, free replacements:
If we can’t fix your printer, we’ll try to replace it by the next business day.
No hidden fees:
Parts and labor, replacements, even return shipping — it’s all covered by your JTF Warranty.
Optional extra coverage:
Additional coverage to include supplies are available for purchase.
No Expert Install
$149.00 Expert Install
Installation Service for equipment includes the following:
JTF will schedule an appointment with one person per site. Unless otherwise requested and/or scheduled, the standard practice is to start all installation services within one week the delivery of the hardware to the customer’s location.
Unpacking: JTF will inventory the shipment against the packing list, unpack and install all delivered products.
Setup/Installation: JTF will physically assemble, connect peripherals, network cables, and power cords that were purchased from JTF.
a. This service provides installation of drivers on a single PC workstation (not server), network setup, including the programming of the IP address and network settings and verification of the network functionality, wireless connection setup and verification of the functionality over the Internet.
b. For configuration networking, the Customer can choose between automatic configuration using BOOTCP or Dynamic Host Configuration Protocol (DHCP), or manual configuration with IP address, default gateway, and subnet mask.
c. For multifunction products, the service provides setup of the ‘send to email configuration’ and configuration of the SMTP or LDAP.
d. This service provides the Customer-identified key operator with a basic overview on how to install consumables, plus explanations of basic features and functionality such as drivers, control panel features, embedded Web server, and alerts.
