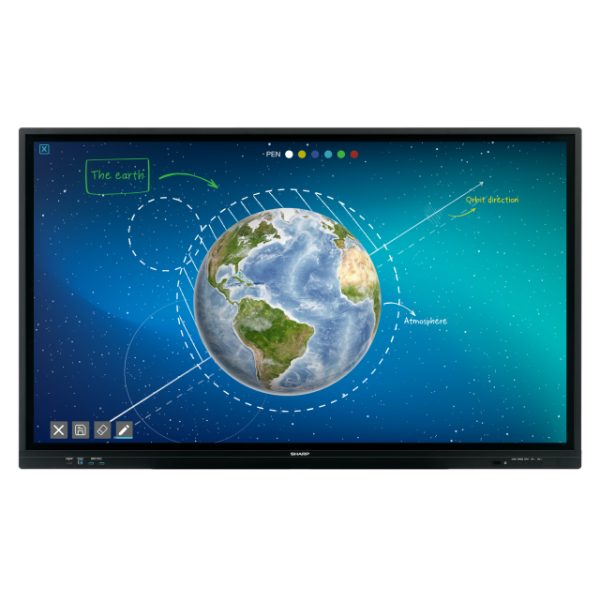

Sharp PN-E869 – 86" 4K UHD ADS Commercial Display with USB-C
secure transactionSharp PN-E869 – 86" 4K UHD ADS Commercial Display with USB-C
The Sharp PN-E869 is a flagship 86-inch 4K UHD professional display designed to deliver unmatched clarity and reliability for large-scale digital signage and corporate environments. With its ADS (Advanced Super Dimension Switch) panel, the display produces vivid colors, sharp details, and consistent brightness across a 178° wide viewing angle. Its high haze anti-glare surface ensures optimal visibility even in brightly lit areas, making it ideal for showrooms, conference halls, and control rooms.
This display comes equipped with advanced connectivity, including USB-C, HDMI, DisplayPort, RS-232C, and LAN, allowing seamless integration into modern AV systems. Its built-in 10W × 10W stereo speakers provide powerful sound output without external equipment. Designed for continuous 24/7 operation, the PN-E869 combines a slim-bezel modern design with durability for demanding commercial applications.
Sharp’s NaViSet Administrator 2 compatibility makes remote monitoring and management simple and efficient. Offering superior performance, robust construction, and flexible installation, the PN-E869 is the ultimate solution for impactful visual communication on a large scale.
Sharp PN-E869 – 86" 4K UHD ADS Commercial Display Comes Standard With:
- AC Power Cord (3m)
- Cord Clamp
- USB Port Cover
- Infrared (IR) Remote Control
- Two AAA Batteries for Remote
- Built-in 10W × 10W Stereo Speakers
- RS-232C Control Port
- LAN (Ethernet) Connectivity
- NaViSet Administrator 2 Software Compatibility
- 3-Year Limited Commercial Warranty
Sharp PN-E869 – 86" 4K UHD ADS Commercial Display with USB-C
| Viewable Image Size | 85.6" |
| Native Resolution | 3840 × 2160 (4K UHD) |
| Brightness (Typical) | 350 cd/m² |
| Contrast Ratio | 4000:1 |
| Viewing Angle | 178° (V) / 178° (H) |
| Aspect Ratio | 16:9 |
| Color Gamut | 70% |
| Displayable Colors | 1.07 billion |
| Orientation | Landscape / Portrait |
| Panel Haze | 25% (Anti-Reflective) |
| Inputs | HDMI 2.0 ×1, USB-C ×1 (DP-Alt Mode) |
| Control Ports | LAN (100 Mbit), IR Remote, RS-232C IN |
| USB Ports | USB-A ×1 (5V/500 mA), USB-C ×1 (5V/3000 mA) |
| Audio Output | 3.5 mm mini jack |
| Power Consumption | 245 W (Typical) / 320 W (Max) |
| Network Standby | 2 W |
| Normal Standby | <0.5 W |
| Speakers | Integrated 10 W × 10 W |
| Bezel Width | 12.9 mm (All sides) |
| Dimensions (W × H × D) | 1927 × 1098 × 60.0 mm (75.87" × 43.26" × 2.36") |
| Weight | 32.5 kg / 71.65 lbs |
| VESA Mount | 600 × 400 mm (M8 × 14 mm) |
| Operating Temp | 0–40 °C |
| Operating Humidity | 20–80% |
| Altitude | Up to 5000 m |
| Warranty | 3-year Advanced Replacement |
| Included Accessories | 3 m AC power cord, cord clamp, USB cover, IR remote, AAA batteries |
Onsite Service
Following your purchase, JTF will assign an authorized service partner in your area to your account. Your service calls are processed and dispatched in just minutes after they are received, thus minimizing your downtimes. All service partners are authorized, factory trained and 100% endorsed by JTF Network Partners, with over 600 service dealers nationwide*
Same Day Onsite Service:
Same Day Service is provided at your business or home during the contracted Maintenance period.
Exceptions:
1) Your offices are 40 miles away from the closest service providers.
2) Service in HI, AK & PR.
Convenient Assistance:
Having device issues?
Experts are here 8am -6pm weekly to help solve your technical problems.
Fast, free replacements:
If we can’t fix your printer, we’ll try to replace it by the next business day.
No hidden fees:
Parts and labor, replacements, even return shipping — it’s all covered by your JTF Warranty.
Optional extra coverage:
Additional coverage to include supplies are available for purchase.
No Expert Install
$199.00 Expert Install
Installation Service for equipment includes the following:
JTF will schedule an appointment with one person per site. Unless otherwise requested and/or scheduled, the standard practice is to start all installation services within one week the delivery of the hardware to the customer’s location.
Unpacking: JTF will inventory the shipment against the packing list, unpack and install all delivered products.
Setup/Installation: JTF will physically assemble, connect peripherals, network cables, and power cords that were purchased from JTF.
a. This service provides installation of drivers on a single PC workstation (not server), network setup, including the programming of the IP address and network settings and verification of the network functionality, wireless connection setup and verification of the functionality over the Internet.
b. For configuration networking, the Customer can choose between automatic configuration using BOOTCP or Dynamic Host Configuration Protocol (DHCP), or manual configuration with IP address, default gateway, and subnet mask.
c. For multifunction products, the service provides setup of the ‘send to email configuration’ and configuration of the SMTP or LDAP.
d. This service provides the Customer-identified key operator with a basic overview on how to install consumables, plus explanations of basic features and functionality such as drivers, control panel features, embedded Web server, and alerts.
