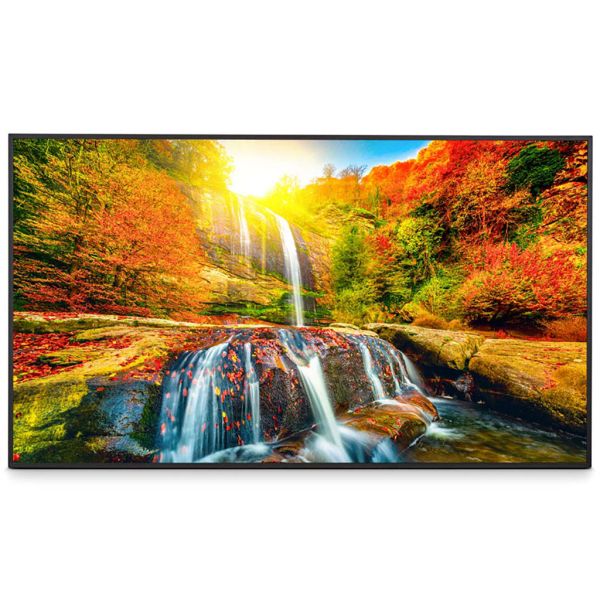

Sharp PN-E509 – 50" 4K UHD Professional Display with ADS Panel, USB-C Connectivity
secure transactionSharp PN-E509 – 50" 4K UHD Professional Display with ADS Panel, USB-C Connectivity
The Sharp PN-E509 is a 50-inch 4K UHD large format display engineered for high-impact visuals in education, business, retail, and signage environments. With its 3840 × 2160 ADS panel, it delivers crisp, vibrant images and a wide 178° viewing angle, making it perfect for presentations and public displays. The 25% high haze anti-glare coating ensures clear, easy-to-read visuals even under bright lighting conditions.
Designed for modern workspaces, the PN-E509 features USB-C (DP-Alt Mode) and HDMI 2.0 inputs for quick, adapter-free connections to laptops, tablets, and other devices. Its slim, uniform bezels enhance aesthetics, while portrait and landscape orientation support allows for flexible installation. The integrated media player supports direct playback of videos, images, and audio from USB storage, and the 24-hour scheduler automates display operation for energy efficiency.
Built for demanding environments, the PN-E509 includes Key Lock and IR Lock for security in public spaces and offers RS-232C and LAN control for easy remote management. It is fully compatible with NaViSet Administrator 2 for multi-display network setups. Backed by a 3-year Limited Commercial Warranty, this display delivers professional-grade performance, reliability, and flexibility.
Sharp PN-E509 – 50" 4K UHD Professional Display Comes Standard With:
- 3m AC Power Cord for reliable power connection
- Cord Clamp for secure and tidy cable management
- USB Cover to protect unused ports
- IR Remote Control for easy operation
- AAA Batteries for the remote control
- Integrated 10W × 10W Stereo Speakers for built-in audio
- RS-232C and LAN Connectivity for system integration
- NaViSet Administrator 2 Remote Management Software compatibility
- 24-Hour On/Off Scheduler function for automated operation
- 3-Year Limited Commercial Warranty for professional reliability
Sharp PN-E509 – 50" 4K UHD Professional Display with ADS Panel, USB-C Connectivity
| Panel Technology | ADS LCD |
| Viewable Image Size | 49.5" (126 cm) |
| Native Resolution | 3840 × 2160 (4K UHD) |
| Brightness (Typical) | 350 cd/m² |
| Contrast Ratio (Typical) | 1200:1 |
| Viewing Angle | 178° Horizontal / 178° Vertical |
| Aspect Ratio | 16:9 |
| Color Gamut | 70% |
| Displayable Colors | 1.07 billion |
| Panel Haze | 25% (Anti-Reflective) |
| Orientation | Landscape / Portrait |
| Inputs | HDMI 2.0 ×1, USB-C ×1 (DP-Alt Mode Supported) |
| USB Ports | USB-A ×1 (5V/500mA), USB-C ×1 (5V/3000mA) |
| External Control | LAN (100Mbit), IR Remote, RS-232C IN (9-pin D-sub) |
| Audio Output | 3.5mm Mini Jack |
| Speakers | Integrated 10W × 10W |
| Power Consumption | 100W (Typ) / 140W (Max) |
| Standby Power | <0.5W (Normal), 2W (Network) |
| Dimensions (W×H×D) | 1120 × 641 × 59.9 mm (44.09 × 25.24 × 2.36 in) |
| Weight | 12 kg (26.46 lbs) |
| Bezel Width | 10.7 mm (All sides) |
| VESA Mount | 4 × M6 × 14mm (400 × 200 mm) |
| Operating Temp | 0° – 40°C |
| Operating Humidity | 20% – 80% |
| Warranty | 3-Year Limited Commercial Warranty |
| Included Accessories | AC Power Cord (3m), Cord Clamp, USB Cover, IR Remote Control, AAA Batteries |
