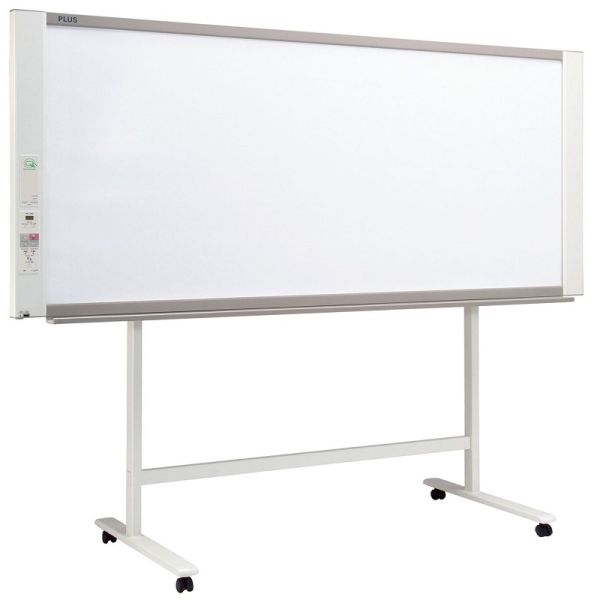

PLUS N-32W Network Capable Electronic Copyboard - 428-291


The PLUS N-32W Network Capable Electronic Copyboard - 428-291 designed for those looking for a great presentation tool for their business. This PLUS N-32W Network Electronic Copyboard helps in making training sessions interactive as both trainees and trainer can make their point clear by writing on the screen using the digital markers. Marker of PLUS N-324 Network Copyboard is available in black, red, blue, and green color which can be used to highlight various points.

The Network Capable Electronic Copyboard has PC and USB connectivity capability which allows you to download the presentations to your computer and USB device. You can convert hard copy to soft copy and vice-versa using scanning and printing feature. The Network Copyboard PLUS N-32W can be placed on the floor using a floor stand or mounted on a wall using a wall bracket.
Write Your Own Review
You're reviewing:PLUS N-32W Network Capable Electronic Copyboard - 428-291
Your Rating



Plus N-32W Comes Standard With:

  • Panel Size W51.2 x H35.8 inches
  • Effective Reading Area W50.4 x H35.4inches
  • Number of Panels 2
  • Grid 2 inch Grid
  • Scrolling Endless in one direction
  • Installation Method Wall Mount or Floor Stand
  • USB Ports 3 Ports (PC, Printer, USB Flash Memory)
  • Resolution 2458 × 1728 dots (fixed)
  • Type USB Flash Memory
  • LAN Port RJ-45 (10Base-T/100Base-TX)
  • Supported Protocol TCP/IP (FTP/FTPS, HTTP/HTTPS, DHCP, NetBIOS Name Service)
  • Weight 44 lbs

PLUS N-32W Network Capable Electronic Copyboard



  • Installation MethodWall Mount or Floor Stand
    External Dimensions (Without Marker Tray)W58.3 x D3.5 x H39.4 inches
    Weight44 lbs
    External Dimensions With Floor Stand (max.)*W58.3 x D26.6 x H76.6* 2  inches
    Floor Stand Weight23 lbs
    Board
    Panel SizeW51.2 x H35.8 inches
    Effective Reading AreaW50.4 x H35.4inches
    Number of Panels2
    Grid2 inch Grid
    ScrollingEndless in one direction
    (Horizontal scrolling)
    Drive MethodMotorized / Manual
    Reading MethodCIS (Contact Image Sensor)
    Reading Illumination Light SourceRGB LED
    Reading ResolutionMain scanning direction (vertical sheet surface) 50 dpi (1.92 dots/mm) Sub scanning direction (horizontal sheet surface) 50 dpi (1.82 dots/mm)
    Reading TimeBlack & White: approx. 15 s
    Color: approx 15 s
    Interface
    USB Ports3 Ports: Type B for PC and Type A for Printer and for USB Flash Memory
    Saved Output
    File Format3 Ports: Type B for PC and Type A for Printer and for USB Flash Memory
    Resolution2458 × 1728 dots (fixed)
    External Memory
    TypeUSB Flash Memory
    Compatible FAT typesFAT 16, 32
    InterfaceUSB2.0
    Network
    LAN PortRJ-45 (10Base-T/100Base-TX)
    Supported ProtocolTCP/IP (FTP/FTPS, HTTP/HTTPS, DHCP, NetBIOS Name Service)
    Printing
    Printing Resolution300 dpi or equivalent
    No. Print ColorsEight colors or two color monochrome
    Printer InterfaceConforming to USB 2.0 standards
    Add Functions
    ClockUsed for the timestamp and for ? le dating properties
    (Includes backup battery for when there is a loss of power.)
    PC ConnectionImages can be acquired and device settings made via USB (using a browser)
    Power Supply
    AC Power AdapterInput: AC100–240V/50–60 Hz, Max 0.75 A / Output: DC 12 V, 3.0 A
    PC ConsumptionIn standby: 3W, During operation: 12W (not including printer)
    Usage Conditions
    Temperature10°C ~ 35°C
    Humidity30 ~ 85% (with no condensation)
    Operating Environment
    OSMicrosoft Windows 2000 Professional (Service Pack 4 or Later) / Windows XP (Home Edition/Professional Edition (Service Pack 2 or Later) / Vista (32 bit) / Windows 7 (32 bit / 64 bit) / Mac OS X 10.5 or later
    Web BrowserWindows: Internet Explorer 8.0 or greater
    Macintosh: Safari 5 or greater / *Enable JavaScript
    Optional AccessoriesRolling Floor Stand (Part #423-084)
