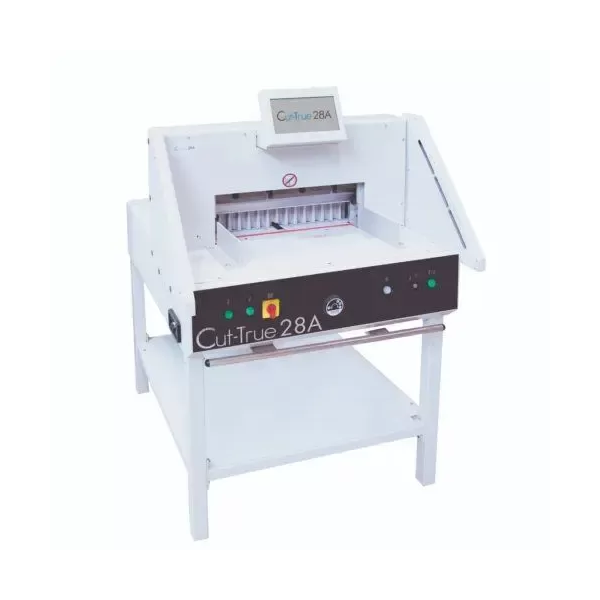

Formax Cut-True 28A Automated Precision Paper Cutter
secure transactionFormax Cut-True 28A Automated Precision Paper Cutter
The Cut-True 28A is a fully automatic, heavy-duty hydraulic paper cutter built for high-volume and precision-driven production environments. With a generous 20.1-inch cutting width and a capacity of up to 3.15 inches (approximately 800 sheets), it combines power with precision. The intuitive touchscreen control panel allows for easy programming of cutting sequences, while the hydraulic clamp and electronically-controlled blade deliver clean, consistent cuts every time.
Designed for commercial printers and production houses, the 28A is equipped with comprehensive safety features including an infrared safety curtain, two-handed cut activation, and automatic blade return. The durable metal construction and advanced internal components ensure long-term reliability and accuracy under heavy workloads.
Formax Cut-True 28A -Comes Standard With:
- Fully automated precision cutting system
- Hardened steel guillotine blade for clean, accurate cuts
- LED laser cut line for exact alignment
- Automatic back gauge with digital display for precise measurements
- High-capacity paper stack handling
- Safety features: front and rear transparent safety covers, blade lock system
- Intuitive touchscreen control panel for easy operation
- Programmable job storage for repeatable cuts
- Automatic clamp system for secure paper holding
- External blade depth adjustment
- Complete tool kit for easy maintenance and blade replacement
- CE Safety Certified
- Energy-efficient design
Formax Cut-True 28A Automated Precision Paper Cutter
| Model | Cut-True 28A |
| Type | Fully Automatic Hydraulic Paper Cutter |
| Cutting Width | 20.1 inches (510 mm) |
| Max Cutting Height | 3.15 inches (80 mm) (approx. 800 sheets, 20 lb bond) |
| Max Cutting Depth | 20 inches (508 mm) |
| Clamp Mechanism | Hydraulic – Automatic pressure adjustment |
| Blade Activation | Hydraulic – Electronically controlled |
| Back Gauge Movement | Motorized with precision adjustment |
| Control Panel | Full-color touchscreen with programmable memory (99 jobs) |
| Cutting Line Indicator | LED Red Optical Line |
| Safety Features | Infrared Safety Curtain, Two-Hand Cut, Blade Lock, Auto Return |
| Construction | Heavy-duty steel frame with anti-slip base |
| Power Supply | 220V, 50/60Hz, Single Phase |
| Machine Dimensions (W x D x H) | Approx. 40" x 36" x 54" (1016 x 914 x 1372 mm) |
| Shipping Weight | Approx. 620 lbs (281 kg) |
| Ideal For | Commercial print shops, bindery operations, production facilities |
Popup Text
No Expert Install
$349.00 Expert Install
Installation Service for equipment includes the following:
JTF will schedule an appointment with one person per site. Unless otherwise requested and/or scheduled, the standard practice is to start all installation services within one week the delivery of the hardware to the customer’s location.
Unpacking: JTF will inventory the shipment against the packing list, unpack and install all delivered products.
Setup/Installation: JTF will physically assemble, connect peripherals, network cables, and power cords that were purchased from JTF.
a. This service provides installation of drivers on a single PC workstation (not server), network setup, including the programming of the IP address and network settings and verification of the network functionality, wireless connection setup and verification of the functionality over the Internet.
b. For configuration networking, the Customer can choose between automatic configuration using BOOTCP or Dynamic Host Configuration Protocol (DHCP), or manual configuration with IP address, default gateway, and subnet mask.
c. For multifunction products, the service provides setup of the ‘send to email configuration’ and configuration of the SMTP or LDAP.
d. This service provides the Customer-identified key operator with a basic overview on how to install consumables, plus explanations of basic features and functionality such as drivers, control panel features, embedded Web server, and alerts.
