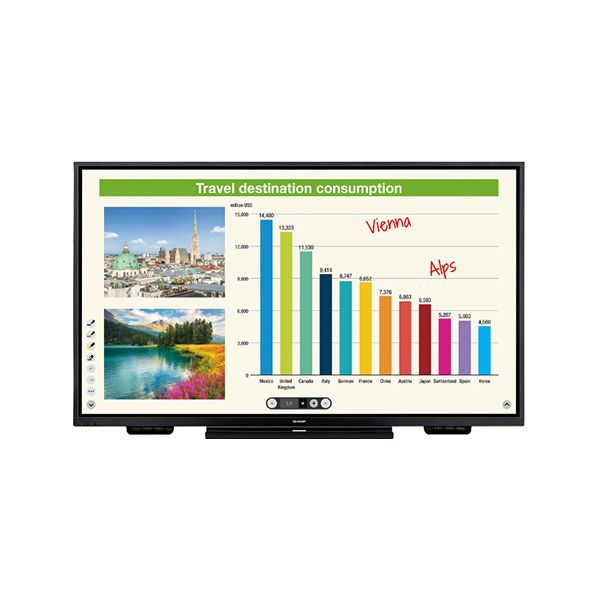

Sharp PN-E329 32" Full HD Large Format Display
secure transactionSharp PN-E329 32" Full HD Large Format Display
The Sharp PN-E329 is a 32" class (31.5" diagonal) large format display designed for essential performance in education, corporate, and digital signage applications. With its full HD 1920 × 1080 resolution, it delivers crisp visuals that engage and inform audiences in a variety of settings.
Featuring a sleek, uniform-bezel design, the PN-E329 fits cleanly into modern spaces and supports both portrait and landscape orientations. Its high haze, anti-glare panel ensures clear visibility even in bright environments, while integrated media playback via USB makes content sharing quick and convenient.
Connectivity is streamlined with HDMI and USB-C inputs, supporting audio and video over a single cable for easy plug-and-play operation. Built-in RS-232C and LAN control options, along with NaViSet Administrator 2 compatibility, make remote management simple, whether for a single display or a network of screens.
Sharp PN-E329 32" Full HD Large Format Display Comes standard With:
- 32" class (31.5" diagonal) Full HD 1920×1080 display.
- High haze (25%) anti-glare panel for clear viewing in bright areas.
- Slim, uniform bezel design for a clean, modern look.
- Supports both portrait and landscape orientations.
- USB-C and HDMI inputs for simple, single-cable connectivity.
- Integrated media player for USB audio, video, and image playback.
- Remote management via LAN, RS-232C, and NaViSet Administrator 2.
- Key Lock and IR Lock to prevent unauthorized access.
- 24-hour scheduler for automated on/off control.
Sharp PN-E329 32" Full HD Large Format Display
| Panel Technology | ADS |
| Viewable Image Size | 31.5" |
| Native Resolution | 1920 × 1080 |
| Brightness (Typical) | 350 cd/m² |
| Contrast Ratio | 1200:1 |
| Viewing Angle | 178° (V) / 178° (H) |
| Aspect Ratio | 16:9 |
| Color Gamut | 72% |
| Displayable Colors | 16.7 million |
| Orientation | Landscape / Portrait |
| Panel Haze | 25% (Anti-Reflective) |
| Inputs | HDMI 2.0 ×1, USB-C ×1 (DP-Alt Mode) |
| Control Ports | LAN (100 Mbit), IR Remote, RS-232C IN |
| USB Ports | USB-A ×1 (5V/500mA), USB-C ×1 (5V/3000mA) |
| Audio Output | 3.5 mm mini jack |
| Power Consumption | 43W (Typical) / 70W (Max) |
| Network Standby | 2W |
| Normal Standby | <0.5W |
| Speakers | Integrated 5W × 5W |
| Bezel Width | 10.5 mm (All sides) |
| Dimensions (W × H × D) | 724 × 418 × 59.0 mm (28.5" × 16.46" × 2.32") |
| Weight | 4.7 kg / 10.36 lbs |
| VESA Mount | 200 × 200 mm (M6 × 14 mm) |
| Operating Temp | 0–40 °C |
| Operating Humidity | 20–80% |
| Altitude | Up to 5000 m |
| Warranty | 3-year Advanced Replacement |
| Included Accessories | 3m AC power cord, cord clamp, USB cover, IR remote, AAA batteries |
