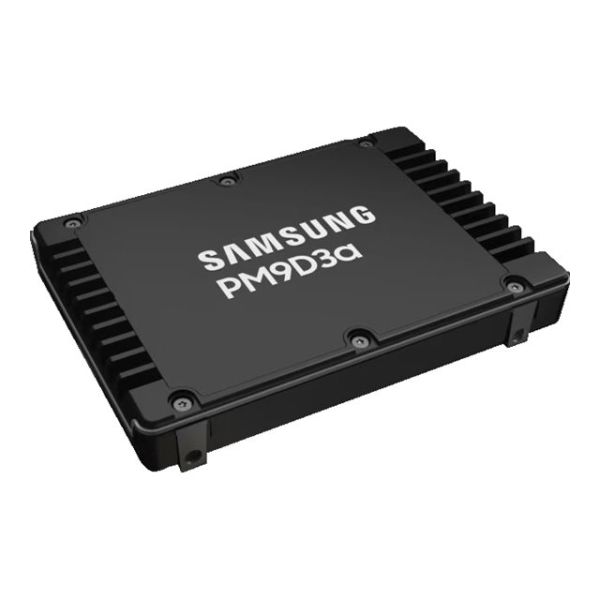

Samsung PM9D3a - SSD

Be the first to review this product

Availability: Out of stock

SKU

4XB7A93067

Compare with Similar items

Request a Quote

Questions before you move forward?

Chat with a JTF expert in Springfield, VA.

Click and connect instantly.

secure transaction

Details

The Lenovo Samsung PM9D3a solid state drive offers performance and versatility for demanding storage needs. With a capacity of 1.92 TB and an internal data rate of 12000 MBps, it is designed to handle large data sets efficiently. This drive features technologies such as triple-level cell (TLC) and an Advanced ECC Engine that ensures data integrity. Its compact 2.5-inch form factor and hot-swap capability make it suitable for various systems, providing easy installation and upgrades. Operating in a temperature range from 0°C to 70°C and supporting a humidity range of 5-95% (non-condensing), this SSD is a choice for various environments. The drive includes hardware encryption with TCG Opal Encryption 2.02, ensuring data security. With an MTBF of 2,500,000 hours and SSD endurance of 3504 TB, the PM9D3a is built to withstand intense workloads, providing long-lasting performance for enterprise applications.

Specifications

General Information
Category	Hard drives
Description	Samsung PM9D3a - SSD - Read Intensive - encrypted - 1.92 TB - hot-swap - 2.5" - U.2 PCIe 5.0 x4 (NVMe) - TCG Opal Encryption 2.02
Manufacturer	Lenovo
MSRP	$6,499.00
UNSPSC	43201803
Main Specifications
Dimensions & Weight / Depth	100 mm
Dimensions & Weight / Height	15 mm
Dimensions & Weight / Weight	170 g
Dimensions & Weight / Width	70 mm
Hard Drive / Capacity	1.92 TB
Hard Drive / Form Factor	2.5"
Hard Drive / Hard Drive Type	Hot-swap hard drive
Hard Drive / Interface	U.2 PCIe 5.0 x4 (NVMe)
Hard Drive / Interface	U.2 PCIe 5.0 x4 (NVMe)
Header / Brand	Samsung
Packaged Quantity	1
Storage / Type	Solid state drive
Environmental Parameters
Humidity Range Operating	5 - 95% (non-condensing)
Max Operating Temperature	70 °C
Max Storage Temperature	85 °C
Min Operating Temperature	0 °C
Min Storage Temperature	-40 °C
Shock Tolerance (non-operating)	1500 g @ 0.5 ms
Vibration Tolerance (non-operating)	20 g @ 10-2000 Hz
Expansion & Connectivity
Compatible Bay	2.5"
Interfaces	1 x U.2 PCIe 5.0 x4 (NVMe)
General
Capacity	1.92 TB
Depth	100 mm
Device Type	Solid state drive - hot-swap
Features	Triple-level cell (TLC), Advanced ECC Engine, End-to-end data protection, S.M.A.R.T.
Form Factor	2.5"
Hardware Encryption	Yes
Height	15 mm
Interface	U.2 PCIe 5.0 x4 (NVMe)
Weight	170 g
Width	70 mm
Miscellaneous
Compliant Standards	cUL, TUV-GS, CB, BSMI, KC, VCCI, RCM, FCC, IC
Performance
4KB Random Read	1700000 IOPS
4KB Random Write	150000 IOPS
Average Latency	9 µs
Drive Class	Read Intensive
Drive Writes Per Day (DWPD)	1
Internal Data Rate	12000 MBps (read) / 3500 MBps (write)
SSD Endurance	3504 TB
Power
Power Consumption	11 Watt (read) 10.8 Watt (write)
Reliability
MTBF	2,500,000 hours
Recoverable Errors	1 per 10^17
