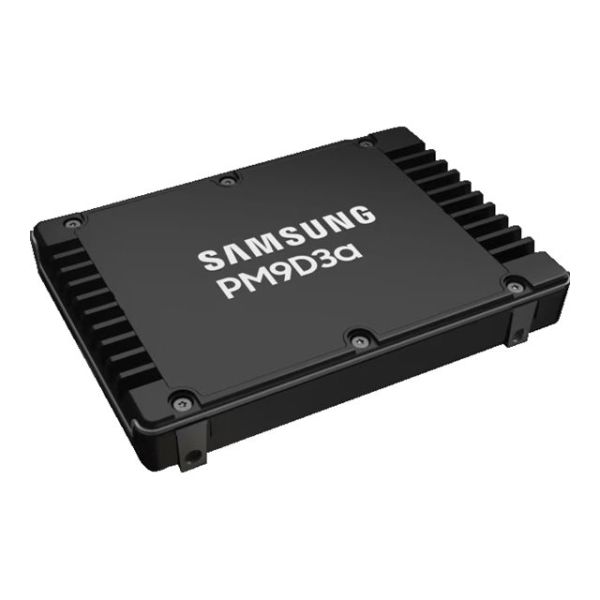

Samsung PM9D3a - SSD
The Lenovo PM9D3a SSD offers ample storage capacity of 3.84 TB, making it a reliable choice for data-intensive applications. This solid state drive features an internal data rate of 12,000 MBps and an average latency of just 9 µs, ensuring speedy data access and transfer. Built for demanding environments, it operates efficiently in temperatures ranging from 0°C to 70°C and can withstand storage temperatures between -40°C and 85°C. Additionally, with an endurance of 7008 TB and a durability rating of 2,500,000 hours MTBF, this SSD meets the rigorous demands of continuous data operations, suitable for a range of business and industrial applications. Incorporating advanced features like end-to-end data protection and a robust Advanced ECC Engine, the Lenovo PM9D3a provides users with enhanced data integrity. It supports hardware encryption with TCG Opal Encryption 2.02, adding security for sensitive information. The drive also boasts hot-swap capabilities, allowing for easy maintenance and upgrades without downtime during operation, further contributing to system reliability and performance.
| General Information | |
|---|---|
| Category | Hard drives |
| Description | Samsung PM9D3a - SSD - Read Intensive - encrypted - 3.84 TB - hot-swap - 2.5" - U.2 PCIe 5.0 x4 (NVMe) - TCG Opal Encryption 2.02 |
| Manufacturer | Lenovo |
| MSRP | $10,099.00 |
| UNSPSC | 43201803 |
| Main Specifications | |
| Dimensions & Weight / Depth | 100 mm |
| Dimensions & Weight / Height | 15 mm |
| Dimensions & Weight / Weight | 170 g |
| Dimensions & Weight / Width | 70 mm |
| Hard Drive / Capacity | 3.84 TB |
| Hard Drive / Form Factor | 2.5" |
| Hard Drive / Hard Drive Type | Hot-swap hard drive |
| Hard Drive / Interface | U.2 PCIe 5.0 x4 (NVMe) |
| Hard Drive / Interface | U.2 PCIe 5.0 x4 (NVMe) |
| Header / Brand | Samsung |
| Packaged Quantity | 1 |
| Storage / Type | Solid state drive |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Max Operating Temperature | 70 °C |
| Max Storage Temperature | 85 °C |
| Min Operating Temperature | 0 °C |
| Min Storage Temperature | -40 °C |
| Shock Tolerance (non-operating) | 1500 g @ 0.5 ms |
| Vibration Tolerance (non-operating) | 20 g @ 10-2000 Hz |
| Expansion & Connectivity | |
| Compatible Bay | 2.5" |
| Interfaces | 1 x U.2 PCIe 5.0 x4 (NVMe) |
| General | |
| Capacity | 3.84 TB |
| Depth | 100 mm |
| Device Type | Solid state drive - hot-swap |
| Features | Triple-level cell (TLC), Advanced ECC Engine, End-to-end data protection, S.M.A.R.T. |
| Form Factor | 2.5" |
| Hardware Encryption | Yes |
| Height | 15 mm |
| Interface | U.2 PCIe 5.0 x4 (NVMe) |
| Weight | 170 g |
| Width | 70 mm |
| Miscellaneous | |
| Compliant Standards | cUL, TUV-GS, CB, BSMI, KC, VCCI, RCM, FCC, IC |
| Performance | |
| 4KB Random Read | 2000000 IOPS |
| 4KB Random Write | 250000 IOPS |
| Average Latency | 9 µs |
| Drive Class | Read Intensive |
| Drive Writes Per Day (DWPD) | 1 |
| Internal Data Rate | 12000 MBps (read) / 6200 MBps (write) |
| SSD Endurance | 7008 TB |
| Power | |
| Power Consumption |
|
| Reliability | |
| MTBF | 2,500,000 hours |
| Recoverable Errors | 1 per 10^17 |
