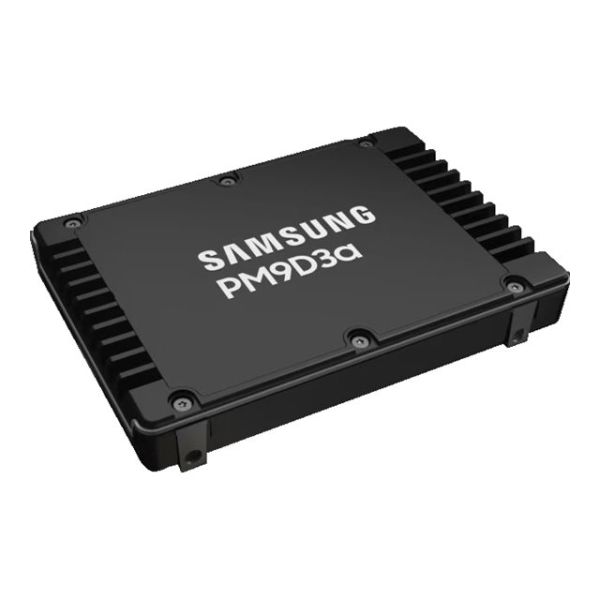

Samsung PM9D3a - SSD
The Lenovo PM9D3a solid state drive (SSD) offers a storage solution with a capacity of 960 GB, ensuring space for data and applications. Featuring an internal data rate of up to 12,000 MBps, this drive enables fast read and write operations, enhancing overall system performance. The drive's end-to-end data protection and advanced ECC Engine ensure reliability and data integrity, allowing users to trust their stored information under various conditions. Built with a 2.5-inch form factor and U.2 PCIe 5.0 x4 interface, this hot-swap SSD can easily integrate into existing systems. Its endurance rating of 1752 TB and a mean time between failures (MTBF) of 2,500,000 hours provide peace of mind regarding longevity and durability. With a wide operating temperature range and compliance with several international standards, this SSD is suitable for both personal and professional use.
| General Information | |
|---|---|
| Category | Hard drives |
| Description | Samsung PM9D3a - SSD - Read Intensive - encrypted - 960 GB - hot-swap - 2.5" - U.2 PCIe 5.0 x4 (NVMe) - TCG Opal Encryption 2.02 |
| Manufacturer | Lenovo |
| MSRP | $4,399.00 |
| UNSPSC | 43201803 |
| Main Specifications | |
| Dimensions & Weight / Depth | 100 mm |
| Dimensions & Weight / Height | 15 mm |
| Dimensions & Weight / Weight | 170 g |
| Dimensions & Weight / Width | 70 mm |
| Hard Drive / Capacity | 960 GB |
| Hard Drive / Form Factor | 2.5" |
| Hard Drive / Hard Drive Type | Hot-swap hard drive |
| Hard Drive / Interface | U.2 PCIe 5.0 x4 (NVMe) |
| Hard Drive / Interface | U.2 PCIe 5.0 x4 (NVMe) |
| Header / Brand | Samsung |
| Packaged Quantity | 1 |
| Storage / Type | Solid state drive |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Max Operating Temperature | 70 °C |
| Max Storage Temperature | 85 °C |
| Min Operating Temperature | 0 °C |
| Min Storage Temperature | -40 °C |
| Shock Tolerance (non-operating) | 1500 g @ 0.5 ms |
| Vibration Tolerance (non-operating) | 20 g @ 10-2000 Hz |
| Expansion & Connectivity | |
| Compatible Bay | 2.5" |
| Interfaces | 1 x U.2 PCIe 5.0 x4 (NVMe) |
| General | |
| Capacity | 960 GB |
| Depth | 100 mm |
| Device Type | Solid state drive - hot-swap |
| Features | Triple-level cell (TLC), Advanced ECC Engine, End-to-end data protection, S.M.A.R.T. |
| Form Factor | 2.5" |
| Hardware Encryption | Yes |
| Height | 15 mm |
| Interface | U.2 PCIe 5.0 x4 (NVMe) |
| Weight | 170 g |
| Width | 70 mm |
| Miscellaneous | |
| Compliant Standards | cUL, TUV-GS, CB, BSMI, KC, VCCI, RCM, FCC, IC |
| Performance | |
| 4KB Random Read | 1000000 IOPS |
| 4KB Random Write | 70000 IOPS |
| Average Latency | 9 µs |
| Drive Class | Read Intensive |
| Drive Writes Per Day (DWPD) | 1 |
| Internal Data Rate | 12000 MBps (read) / 1600 MBps (write) |
| SSD Endurance | 1752 TB |
| Power | |
| Power Consumption |
|
| Reliability | |
| MTBF | 2,500,000 hours |
| Recoverable Errors | 1 per 10^17 |
