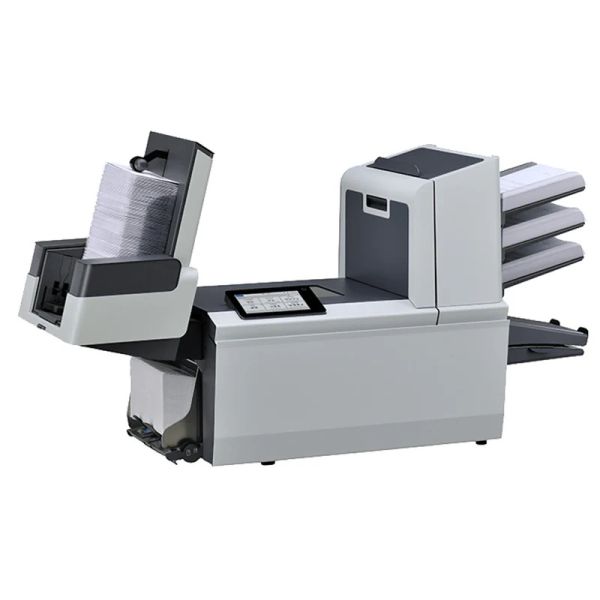

Formax FD 6308 ProFold Special 3i Inserter
secure transactionFormax FD 6308 ProFold Special 3i Inserter
The Formax FD 6308 ProFold Special 3i Inserter is a highly advanced, fully automated folder inserter designed for complex, high-volume mailing environments. Featuring three feeder stations—two standard feeders and one special feeder at the bottom—it offers versatile handling of various document types and media. The system includes integrated reading hardware along with a Multi-Read License, enabling precise reading of OMR, 1D, and 2D barcodes for highly accurate document processing. With a user-friendly 7” full-color touchscreen interface, operators can easily program and manage up to 50 jobs. Its robust design, combined with double document detection and eco-friendly operation, makes the FD 6308 Special 3i ideal for financial institutions, healthcare providers, and corporate mailrooms demanding efficiency, speed, and precision.
Formax FD 6308 - Comes Standard With:
- Two standard feeders (each holds up to 325 sheets of 20# bond paper)
- One special feeder on the bottom (ideal for inserts, cards, or labels)
- OMR, 1D, and 2D barcode reading hardware
- Multi-Read License for advanced barcode and document reading
- 7” full-color touchscreen graphical interface for easy job setup
- Top-loading envelope hopper (up to 325 envelopes)
- Vertical output stacker (holds up to 500 filled envelopes)
- Supports C, V, Z, Double Parallel, and No Fold types
- Double document detection system for accuracy
- Eco mode for energy efficiency
- Sealing and non-sealing operational modes
- Clamshell design for easy access to paper and envelope paths
- Up to 50 programmable jobs
- Supports sheets (3.5"–14" H x 5"–9" W) and envelopes (3.5"–6.4" H x 5.5"–9.8" W)
Formax FD 6308 ProFold Special 3i Inserter
| Product Name | Formax FD 6308 ProFold Special 3i Inserter |
| Processing Speed | Up to 3,800 pieces per hour |
| Monthly Duty Cycle | Up to 40,000 pieces |
| Fold Types Supported | C, V, Z, Double Parallel, No Fold |
| Standard Feeders | 2 standard feeders (each holds up to 325 sheets of 20# bond paper) |
| Special Feeder | 1 special feeder located at the bottom |
| Reading Hardware | OMR, 1D, and 2D barcode reading system |
| Multi-Read License | Enables advanced document reading and verification |
| Envelope Hopper Capacity | Up to 325 envelopes (top-loading) |
| Vertical Stacker Capacity | Up to 500 filled envelopes |
| Sheet Size Range | 3.5"–14" Height x 5"–9" Width |
| Envelope Size Range | 3.5"–6.4" Height x 5.5"–9.8" Width |
| Programmable Jobs | Up to 50 programmable jobs |
| Maximum Insert Thickness | 1 mm |
| Maximum Set Thickness | 2.5 mm |
| Control Interface | 7" full-color touchscreen graphical interface |
| Energy Efficiency | Eco mode available |
| Sealing Capability | Sealing and non-sealing modes supported |
| Document Detection | Double document detection system |
| Clamshell Design | Easy access to paper and envelope paths for maintenance |
Popup Text
No Expert Install
$349.00 Expert Install
Installation Service for equipment includes the following:
JTF will schedule an appointment with one person per site. Unless otherwise requested and/or scheduled, the standard practice is to start all installation services within one week the delivery of the hardware to the customer’s location.
Unpacking: JTF will inventory the shipment against the packing list, unpack and install all delivered products.
Setup/Installation: JTF will physically assemble, connect peripherals, network cables, and power cords that were purchased from JTF.
a. This service provides installation of drivers on a single PC workstation (not server), network setup, including the programming of the IP address and network settings and verification of the network functionality, wireless connection setup and verification of the functionality over the Internet.
b. For configuration networking, the Customer can choose between automatic configuration using BOOTCP or Dynamic Host Configuration Protocol (DHCP), or manual configuration with IP address, default gateway, and subnet mask.
c. For multifunction products, the service provides setup of the ‘send to email configuration’ and configuration of the SMTP or LDAP.
d. This service provides the Customer-identified key operator with a basic overview on how to install consumables, plus explanations of basic features and functionality such as drivers, control panel features, embedded Web server, and alerts.
