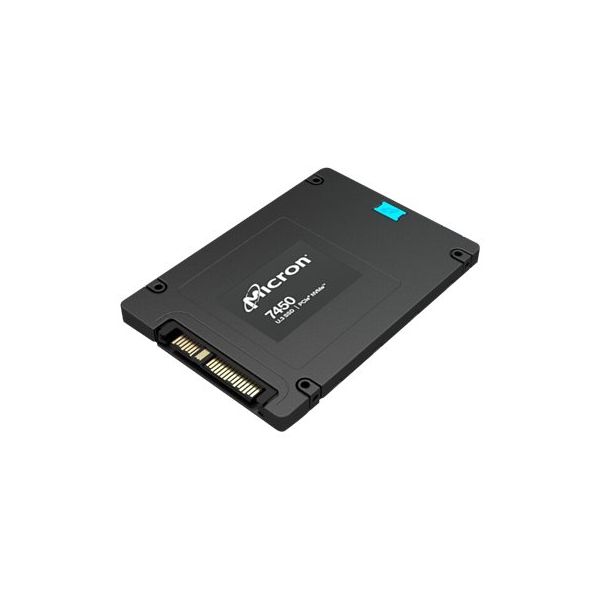

Micron 7450 PRO - SSD
The ThinkSystem 7450 PRO Read Intensive NVMe SSDs are general-purpose yet high-performance family of NVMe solid-state drives. They are engineered for greater performance and endurance in a cost-effective design, and to support a broader set of workloads. With SED encryption as standard, these drives help ensure data security, even when the drive is removed from the server. Non-Volatile Memory Express (NVMe) is PCIe high performance SSD technology that provides high I/O throughput and low latency. NVMe interfaces remove SAS/SATA bottlenecks and unleash all of the capabilities of contemporary NAND flash memory. Each NVMe PCI SSD has direct PCIe x4 connection, which provides at least 2x more bandwidth and 2x less latency than SATA/SAS-based SSD solutions. NVMe drives are also optimized for heavy multi-threaded workloads by using internal parallelism and many other improvements, such as enlarged I/O queues.
| General Information | |
|---|---|
| Category | Hard drives |
| Description | Micron 7450 PRO - SSD - Read Intensive - encrypted - 7.68 TB - hot-swap - E1.S - PCIe 4.0 x4 (NVMe) - 3072-bit RSA - TCG Opal Encryption 2.01, Self-Encrypting Drive (SED) - for ThinkSystem SN550 V2 7Z69; SR630 V2 7Z70, 7Z71; SR670 V2 7Z22, 7Z23 |
| Manufacturer | Lenovo |
| MSRP | $23,699.00 |
| UNSPSC | 43201803 |
| Main Specifications | |
| Hard Drive / Capacity | 7.68 TB |
| Hard Drive / Form Factor | E1.S |
| Hard Drive / Hard Drive Type | Hot-swap hard drive |
| Hard Drive / Interface | PCI Express 4.0 x4 (NVMe) |
| Hard Drive / Interface | PCI Express 4.0 x4 (NVMe) |
| Header / Brand | Micron |
| Miscellaneous / Product Color | Black |
| Packaged Quantity | 1 |
| Service & Support / Type | 1-year warranty |
| Storage / Type | Solid state drive |
| Compatibility Information | |
| Designed For |
|
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Shock Tolerance (non-operating) | 1500 g @ 0.5 ms |
| Vibration Tolerance (non-operating) | 20 gRMS @ 5-3000 Hz |
| Expansion & Connectivity | |
| Compatible Bay | E1.S |
| Interfaces | 1 x PCI Express 4.0 x4 (NVMe) |
| General | |
| Capacity | 7.68 TB |
| Device Type | Solid state drive - hot-swap |
| Encryption Algorithm | 3072-bit RSA |
| Features | 176-layer 3D TLC NAND technology, End-to-end data protection, advanced power loss protection architecture, Adaptive thermal monitoring, Read Unrecoverable Bit Error Rate (UBER) 10e-17, S.M.A.R.T. |
| Form Factor | E1.S |
| Hardware Encryption | Yes |
| Interface | PCIe 4.0 x4 (NVMe) |
| NAND Flash Memory Type | 3D triple-level cell (TLC) |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - replacement - 1 year |
| Miscellaneous | |
| Compliant Standards | EN55024 Class B, EN 55032 Class B, RoHS, FCC, 47 CFR Part 15 Class B, UL, IEC 60950-1:2005 Second Edition, EN 60950-1:2005, EN 60950-1:2006+A1:2010+A11:2009 + A12:2011 + A2:2013, BSMI CNS 13438 Class B, CNS 15663, BSMI CNS 15663, RCM, AS/NZS CISPR 32 Class B, KC, RRL, KCC KN32 Class B, KCC KN35 Class B, WEEE 2012/19/EC, TUV, IEC60950/EN60950, VCCI, VCCI 2015.04 Class B, IC, ICES-003 Class B, Morocco, UkrSEPRO, UKCA, SI 2012/3032 RoHS, SI 2016/1091 Class B, EN55032 Class B |
| Performance | |
| 4KB Random Read | 1000000 IOPS |
| 4KB Random Write | 215000 IOPS |
| Average Latency | 15 µs |
| Drive Class | Read Intensive |
| Drive Writes Per Day (DWPD) | 1 |
| Internal Data Rate | 6800 MBps (read) / 4000 MBps (write) |
| SSD Endurance | 14000 TB |
| Power | |
| Power Consumption |
|
| Reliability | |
| MTBF | 2,000,000 hours |
| Non-Recoverable Errors | 1 per 10^17 |
