Samsung PM1733a - SSD

Availability: Out of stock
SKU
4XB7A81999
UPC Code
889488632343
Questions before you move forward?

Chat with a JTF expert in Springfield, VA.

Click and connect instantly.

secure transactionsecure transaction

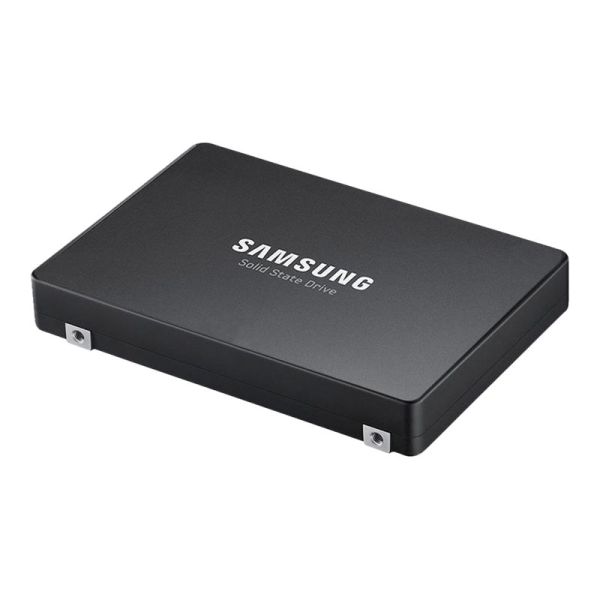

Discover storage solutions with the Lenovo Samsung PM1733a solid state drive. Engineered for durability and high-capacity storage, this 2.5" drive offers a substantial 30.72 TB of space, making it perfect for data-intensive applications and large-scale data storage requirements. It features V-NAND Technology and an advanced ECC Engine, ensuring data integrity and reliability. Experience performance with read and write speeds of up to 7500 MBps and 4100 MBps, respectively. This drive is optimized for read-intensive tasks, supported by an impressive 1,600,000 IOPS for 4KB random reads and 170,000 IOPS for writes, facilitating rapid data access and efficient processing. Additionally, the drive's robust design allows it to operate in a wide range of environmental conditions, from 0 °C to 70 °C, and withstand significant shock and vibration. Security is paramount, and the PM1733a addresses this with Self-Encrypting Drive (SED) technology and TCG Opal Encryption, ensuring your data is protected against unauthorized access. With a power-efficient design that minimizes energy consumption during operation, this solid state drive is an ideal choice for enterprises seeking performance, capacity, and security.
General Information
CategoryHard drives
DescriptionSamsung PM1733a - SSD - Read Intensive - encrypted - 30.72 TB - hot-swap - 2.5" - U.3 PCIe 4.0 x4 (NVMe) - TCG Opal Encryption, Self-Encrypting Drive (SED) - CRU - for ThinkSystem SR635 7Y98 (2.5"), 7Y99 (2.5"); SR655 7Y00 (2.5"), 7Z01 (2.5")
ManufacturerLenovo
MSRP$76,999.00
UNSPSC43201803
Main Specifications
Dimensions & Weight / Depth100 mm
Dimensions & Weight / Height15 mm
Dimensions & Weight / Weight190 g
Dimensions & Weight / Width70 mm
Hard Drive / Capacity30.72 TB
Hard Drive / Form Factor2.5"
Hard Drive / Hard Drive TypeHot-swap hard drive
Hard Drive / InterfaceU.3 PCIe 4.0 x4 (NVMe)
Hard Drive / InterfaceU.3 PCIe 4.0 x4 (NVMe)
Header / BrandSamsung
Miscellaneous / Product ColorBlack
Packaged Quantity1
Service & Support / Type1-year warranty
Storage / TypeSolid state drive
Compatibility Information
Designed For
  • Lenovo ThinkSystem SR635 7Y98 (2.5"), 7Y99 (2.5")
  • Lenovo ThinkSystem SR655 7Y00 (2.5"), 7Z01 (2.5")
Environmental Parameters
Humidity Range Operating5 - 95% (non-condensing)
Max Operating Temperature70 °C
Max Storage Temperature85 °C
Min Operating Temperature0 °C
Min Storage Temperature-40 °C
Shock Tolerance (non-operating)1500 g @ 0.5 ms
Vibration Tolerance (non-operating)20 g @ 10-2000 Hz
Vibration Tolerance (operating)10-2000 Hz
Expansion & Connectivity
Compatible Bay2.5"
Interfaces1 x U.3 PCIe 4.0 x4 (NVMe)
General
Capacity30.72 TB
Depth100 mm
Device TypeSolid state drive - hot-swap
FeaturesAdvanced ECC Engine, End-to-end data protection, V-NAND Technology, S.M.A.R.T.
Form Factor2.5"
Hardware EncryptionYes
Height15 mm
InterfaceU.3 PCIe 4.0 x4 (NVMe)
NAND Flash Memory TypeTriple-level cell (TLC)
Weight190 g
Width70 mm
Manufacturer Warranty
Service & SupportLimited warranty - replacement - 1 year
Miscellaneous
Compliant StandardscUL, TUV GS, CB, BSMI, KC, VCCI, RCM, FCC, IC
Pricing TypeCustomer-replaceable Unit (CRU)
Performance
4KB Random Read1600000 IOPS
4KB Random Write170000 IOPS
Average Latency25 µs
Drive ClassRead Intensive
Drive Writes Per Day (DWPD)1
Internal Data Rate7500 MBps (read) / 4100 MBps (write)
SSD Endurance56064 TB
Power
Power Consumption
  • 20 Watt (read)
  • 21 Watt (write)
Reliability
MTBF2,000,000 hours
Non-Recoverable Errors1 per 10^17
Software & System Requirements
OS RequiredMicrosoft Windows Server 2016, Microsoft Windows Server 2019, Microsoft Windows Server 2022, Red Hat Enterprise Linux 7.6, Red Hat Enterprise Linux 7.7, Red Hat Enterprise Linux 7.8, Red Hat Enterprise Linux 7.9, Red Hat Enterprise Linux 8.0, Red Hat Enterprise Linux 8.1, Red Hat Enterprise Linux 8.2, Red Hat Enterprise Linux 8.3, Red Hat Enterprise Linux 8.4, Red Hat Enterprise Linux 8.5, Red Hat Enterprise Linux 8.6, Red Hat Enterprise Linux 9.0, SuSE Linux Enterprise Server 12 SP4, SuSE Linux Enterprise Server 12 SP4 with Xen, SUSE Linux Enterprise Server 12 SP5, SUSE Linux Enterprise Server 12 SP5 with Xen, SUSE Linux Enterprise Server 15 SP1, SUSE Linux Enterprise Server 15 SP1 with Xen, SUSE Linux Enterprise Server 15 SP2, SUSE Linux Enterprise Server 15 SP2 with Xen, SUSE Linux Enterprise Server 15 SP3, SUSE Linux Enterprise Server 15 SP3 with Xen, VMware vSphere Hypervisor 6.5 (ESXi) Update 3, VMware vSphere Hypervisor 6.7 (ESXi) Update 3, VMware vSphere Hypervisor 7.0 (ESXi), VMware vSphere Hypervisor 7.0 (ESXi) Update 1, VMware vSphere Hypervisor 7.0 (ESXi) Update 2, VMware vSphere Hypervisor 7.0 (ESXi) Update 3
