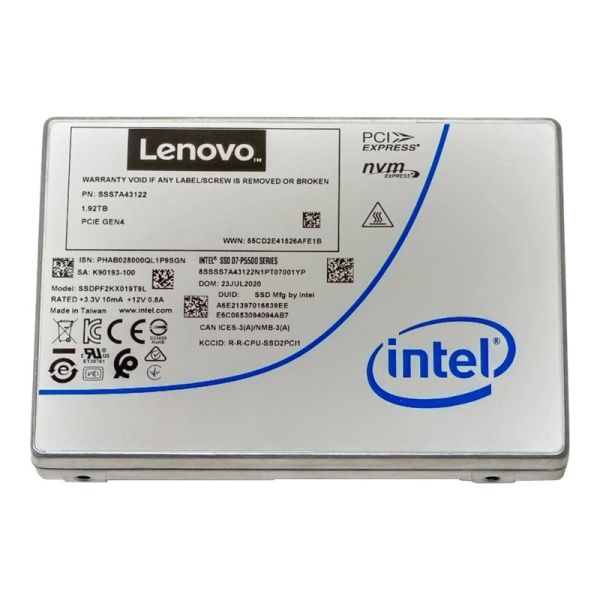

Intel P5500 Entry - SSD
Discover the Lenovo Intel P5500 Entry, a 1.92 TB solid state drive designed for those who demand reliability and high-speed performance. With an impressive MTBF of 2,000,000 hours and built using 96-layer 3D NAND technology, this drive is not only durable but also provides ample storage for your data needs. It features advanced thermal management to keep your system cool and running smoothly, even under heavy loads. The drive's U.2 PCIe 4.0 x4 (NVMe) interface delivers exceptional internal data rates of up to 3.5 GBps for reading and 1.7 GBps for writing, making it perfect for read-intensive applications. Additionally, it offers robust data protection with end-to-end data path protection, ensuring the safety and integrity of your data. Whether you're upgrading your personal computer or enhancing a corporate data center, the Lenovo Intel P5500 Entry solid state drive offers the performance and reliability you need.
| General Information | |
|---|---|
| Category | Hard drives |
| Description | Intel P5500 Entry - SSD - Read Intensive - simple-swap - 1.92 TB - removable - 3.5" - U.2 PCIe 4.0 x4 (NVMe) - for ThinkSystem SR250 V2 7D7Q (3.5"), 7D7R (3.5"); ST250 V2 7D8F (3.5"), 7D8G (3.5") |
| Manufacturer | Lenovo |
| UNSPSC | 43201803 |
| Main Specifications | |
| Dimensions & Weight / Depth | 100 mm |
| Dimensions & Weight / Height | 15 mm |
| Dimensions & Weight / Weight | 146 g |
| Dimensions & Weight / Width | 70 mm |
| Hard Drive / Capacity | 1.92 TB |
| Hard Drive / Form Factor | 3.5" |
| Hard Drive / Hard Drive Type | Removable hard drive |
| Hard Drive / Interface | U.2 PCIe 4.0 x4 (NVMe) |
| Hard Drive / Interface | U.2 PCIe 4.0 x4 (NVMe) |
| Header / Brand | Intel |
| Miscellaneous / Product Color | Silver |
| Packaged Quantity | 1 |
| Service & Support / Type | 1-year warranty |
| Storage / Type | Solid state drive |
| Compatibility Information | |
| Designed For |
|
| Environmental Parameters | |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Shock Tolerance (operating) | 1000 g @ 0.5 ms |
| Vibration Tolerance (operating) | 2.17 g @ 5-700 Hz |
| Expansion & Connectivity | |
| Compatible Bay | 3.5" |
| Interfaces | 1 x PCI Express 4.0 x4 U.2 (NVMe) |
| General | |
| Bay Required | Simple Swap |
| Capacity | 1.92 TB |
| Depth | 100 mm |
| Device Type | Solid state drive - removable |
| Features | 96-layer 3D NAND technology, End-to-end data path protection, Thermal throttling, Thermal Monitoring, S.M.A.R.T. |
| Form Factor | 3.5" |
| Height | 15 mm |
| Interface | U.2 PCIe 4.0 x4 (NVMe) |
| NAND Flash Memory Type | 3D triple-level cell (TLC) |
| Weight | 146 g |
| Width | 70 mm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - replacement - 1 year |
| Miscellaneous | |
| Compliant Standards | FCC CFR47 Part 15 B Class B, CAN/CSA-CEI/IEC CISPR 22:02, EN55024:1998, EN55022:2006, EN 60950-1 Second Edition, UL/CSA60950-1 (2nd Edition), LVD 2006/95/EC, AS/NZS 3584, C-Tick, BSMI CNS 13438, KCC Article 11.1, RoHS 2011/65/EU, WEEE 2002/96/EC |
| Performance | |
| 4KB Random Read | 400000 IOPS |
| 4KB Random Write | 59000 IOPS |
| Average Latency | 10 µs |
| Drive Class | Read Intensive |
| Drive Writes Per Day (DWPD) | 1 |
| Internal Data Rate | 3.5 GBps (read) / 1.7 GBps (write) |
| SSD Endurance | 3.5 PB |
| Power | |
| Power Consumption |
|
| Reliability | |
| MTBF | 2,000,000 hours |
| Non-Recoverable Errors | 1 per 10^17 |
