Count-Strike Perf Creasing, Numbering & Perforating System

Count-Strike Perf Creasing, Numbering & Perforating System

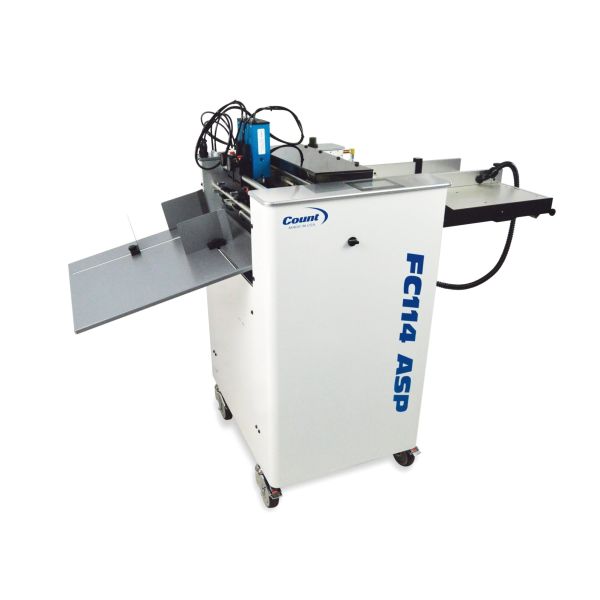

The FC114ASP is an advanced finishing system that combines creasing, numbering, and strike perforation in a single, powerful unit. Designed for mid- to high-volume digital print environments, the FC114ASP features a top-load air suction feed system for accurate and mark-free handling of coated, glossy, or heavy-weight paper. Built with a strike perf mechanism, this model allows intermittent perforations, perfect for producing tear-off stubs, coupons, event tickets, and reply forms. The touchscreen interface offers intuitive control for crease/perf/number placement, automated job setup, batch counting, and memory presets. With its ability to handle multiple finishing operations in one pass, the FC114ASP is a robust, production-ready solution that reduces operator intervention and increases output accuracy—ideal for print shops, in-plants, and finishing departments.
Count-Strike Perf Creasing, Numbering & Perforating System
Model Name | FC114ASP |
Functions | Creasing, Numbering, Strike Perforating |
Feed System | Top-Load Air Suction Pile Feed |
Control Panel | Touchscreen with Auto Setup & Job Memory |
Strike Perforation | Yes – Programmable Intermittent Perf |
Max Speed | Up to 7,500 sheets/hour |
Paper Weight Range | 80 – 400 gsm |
Max Sheet Size | 25.5" x 18.0" (64.8 x 45.7 cm) |
Min Sheet Size | 4.5" x 4.5" (11.4 x 11.4 cm) |
Numbering Heads | Up to 2 crash-style heads |
Max Crease Locations | Up to 12 per sheet |
Max Strike Perf Locations | Up to 4 per sheet |
Feed Accuracy | ± 0.2 mm |
Counter Functions | Batch and Total Count |
Touchscreen Features | Auto Setup, Saved Jobs, Batch Presets |
Applications | Tickets, Coupons, Forms, Booklets, Marketing Materials |
Optional Add-ons | Score Wheel, Conveyor Stacker, Micro-Perf Kit |
Machine Dimensions | Approx. 60" x 27" x 45" (152.4 x 68.6 x 114.3 cm) |
Machine Weight | Approx. 275 lbs (125 kg) |
Electrical Requirements | 110V or 230V, 50/60 Hz (confirm before purchase) |
