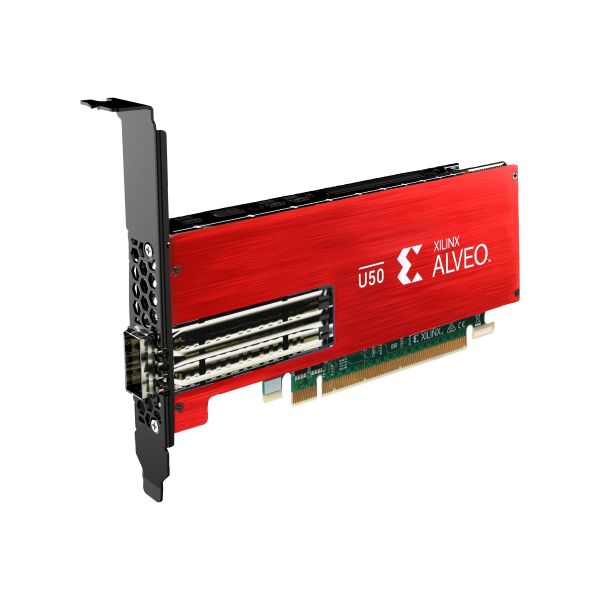

Xilinx Alveo U50 Data Center Accelerator Card

Be the first to review this product

Availability: Out of stock

SKU

4XC7A76757

Compare with Similar items

Request a Quote

Questions before you move forward?

Chat with a JTF expert in Springfield, VA.

Click and connect instantly.

secure transaction

Details

The Xilinx Alveo U50 Data Center accelerator cards provide optimized acceleration for workloads in financial computing, machine learning, computational storage, and data search and analytics. Built on Xilinx UltraScale+ architecture and packaged up in an efficient 75-watt, small form factor, and armed with 100 Gbps networking I/O, PCIe Gen4, and HBM, Alveo U50 is designed for deployment in any server. Alveo accelerator cards are adaptable to changing acceleration requirements and algorithm standards, capable of accelerating any workload without changing hardware, and reduce overall cost of ownerJTFp.

Specifications

General Information
Category	Graphic accelerator cards
Description	Xilinx Alveo U50 Data Center Accelerator Card - GPU computing processor - Alveo U50 - 8 GB HBM2 - PCIe 3.0 x16 / PCIe 4.0 x8 low profile - QSFP28 - fanless - for ThinkSystem SR645 7D2X, 7D2Y; SR665 7D2V, 7D2W
Manufacturer	Lenovo
MSRP	$12,119.00
UNSPSC	43201401
Main Specifications
A/V Interface Type	PCI Express 3.0 x16 / PCI Express 4.0 x8
Dimensions & Weight / Depth	16.8 cm
Dimensions & Weight / Height	6.9 cm
Dimensions & Weight / Weight	325 g
Header / Brand	Xilinx
Packaged Quantity	1
Service & Support / Type	1-year warranty
Video Memory / Technology	HBM2
Video Output / Graphics Processor	Xilinx Alveo U50
Video Output / Graphics Processor Manufacturer	Xilinx
Compatibility Information
Designed For	Lenovo ThinkSystem SR645 7D2X, 7D2Y Lenovo ThinkSystem SR665 7D2V, 7D2W
Environmental Parameters
Humidity Range Operating	8 - 80%
Max Operating Temperature	50 °C
Min Operating Temperature	0 °C
General
Bus Type	PCI Express 3.0 x16 / PCI Express 4.0 x8
Device Type	GPU computing processor - low profile - fanless
Features	UltraScale+ architecture
Graphics Engine	Xilinx Alveo U50
Manufacturer Warranty
Service & Support	Limited warranty - 1 year
Memory
Bandwidth	316 GBps
Size	8 GB
Technology	HBM2
Miscellaneous
Compliant Standards	IEEE 1588, UL 60950-1 Second Edition, CSA C22.2 No. 60950-1-07 Second Edition, EN 60950-1:2006+A11:2009+A1:2012+A2:2011+A2:2013, IEC 60950-1:2005 Second Edition, LVD 2014/35/EU, IEC 62368-1: 2014 Second Edition, FCC Part 15, CAN ICES-3(A)/NMB3(A), CISPR 32, EN 55032:2015, EN 55035:2017, EMC 2014/30/EU, VCCI Class A, CNS 13438, RoHS CNS 15663, AS/NZS CISPR 32, C-Tick, MSIP, GS
Depth	16.8 cm
Height	6.9 cm
Included Accessories	Full-height bracket, low-profile bracket
Power Consumption Operational	75 watt
Weight	325 g
