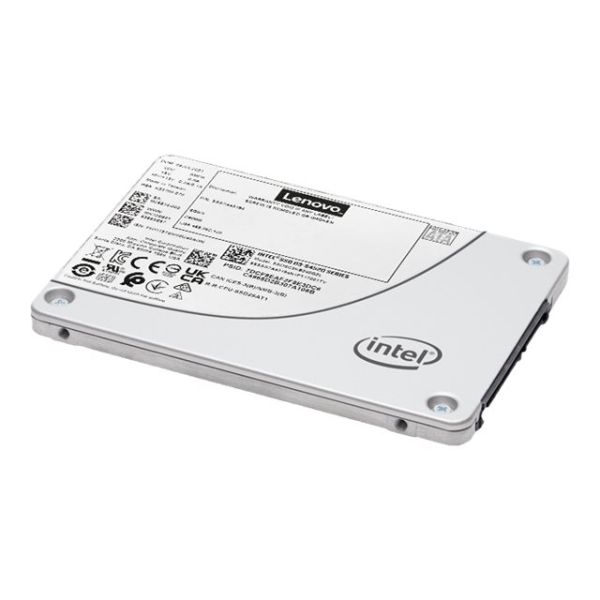

Lenovo ThinkSystem S4520

Be the first to review this product

Availability: Out of stock

SKU

4XB7A77059

Compare with Similar items

Request a Quote

Questions before you move forward?

Chat with a JTF expert in Springfield, VA.

Click and connect instantly.

secure transaction

Details

The ThinkSystem S4520 Read Intensive SATA SSDs use 144-layer Intel 3D NAND TLC Flash Memory technology with a 6Gbps SATA interface to provide an affordable solution with outstanding performance. The S4520 SSDs are optimized for read-intensive applications such as boot, web servers, lower data rate operational databases and analytics.

Specifications

General Information
Category	Hard drives
Description	Lenovo ThinkSystem S4520 - SSD - Read Intensive - 1.92 TB - 2.5" - SATA 6Gb/s - for ThinkSystem SD650 V2 7D1M (2.5"); SD650-N V2 7D1N (2.5")
Manufacturer	Lenovo
MSRP	$6,299.00
UNSPSC	43201803
Main Specifications
Dimensions & Weight / Depth	100 mm
Dimensions & Weight / Height	7 mm
Dimensions & Weight / Weight	70 g
Dimensions & Weight / Width	70 mm
Hard Drive / Capacity	1.92 TB
Hard Drive / Form Factor	2.5"
Hard Drive / Interface	Serial ATA-600
Hard Drive / Interface	Serial ATA-600
Header / Brand	Lenovo
Miscellaneous / Product Color	White
Packaged Quantity	1
Service & Support / Type	1-year warranty
Storage / Type	Solid state drive
Compatibility Information
Designed For	Lenovo ThinkSystem SD650 V2 7D1M (2.5") Lenovo ThinkSystem SD650-N V2 7D1N (2.5")
Environmental Parameters
Humidity Range Operating	5 - 95% (non-condensing)
Max Operating Temperature	70 °C
Min Operating Temperature	0 °C
Shock Tolerance (non-operating)	1000 g @ 0.5 ms
Shock Tolerance (operating)	1000 g @ 0.5 ms
Vibration Tolerance (non-operating)	3.13 g @ 5-800 Hz
Vibration Tolerance (operating)	2.17 g @ 5-700 Hz
Expansion & Connectivity
Compatible Bay	2.5"
Interfaces	1 x SATA 6 Gb/s
General
Capacity	1.92 TB
Depth	100 mm
Device Type	Solid state drive
Features	3D NAND Technology, End-to-end data path protection, Enhanced Power Loss Data Protection, Thermal throttling, Standard Endurance Technology (SET), 144-layer Intel 3D NAND TLC, S.M.A.R.T., 256-bit AES
Form Factor	2.5"
Height	7 mm
Interface	SATA 6Gb/s
NAND Flash Memory Type	3D triple-level cell (TLC)
Weight	70 g
Width	70 mm
Manufacturer Warranty
Service & Support	Limited warranty - 1 year
Miscellaneous
Compliant Standards	FCC Part 15 Class B, FCC Title 47, EN 55032:2012, EN 55035:2017, EN55022:2006, LVD 2014/35/EU, EMC 2014/30/EU, RoHS 2011/65/EU, WEEE 2012/19/EU, UL 60950 Second Edition, CSA C22.2 No. 60950-1-07 Second Edition, UL/CSA/EN 62368-1, AS/NZS CISPR 32:2015, AS/NZS CISPR22:2009+A1:2010, BSMI CNS 13438, KCC Article 11.1, Morocco, ICES-003, VCCI, China EFUP
Performance
4KB Random Read	91000 IOPS
4KB Random Write	38000 IOPS
Average Latency	37 µs
Drive Class	Read Intensive
Drive Transfer Rate	600 MBps (external)
Drive Writes Per Day (DWPD)	2.5
Internal Data Rate	550 MBps (read) / 510 MBps (write)
SSD Endurance	8.8 PB
Power
Power Consumption	3.1 Watt (typical)
Reliability
MTBF	2,000,000 hours
Non-Recoverable Errors	1 per 10^17
