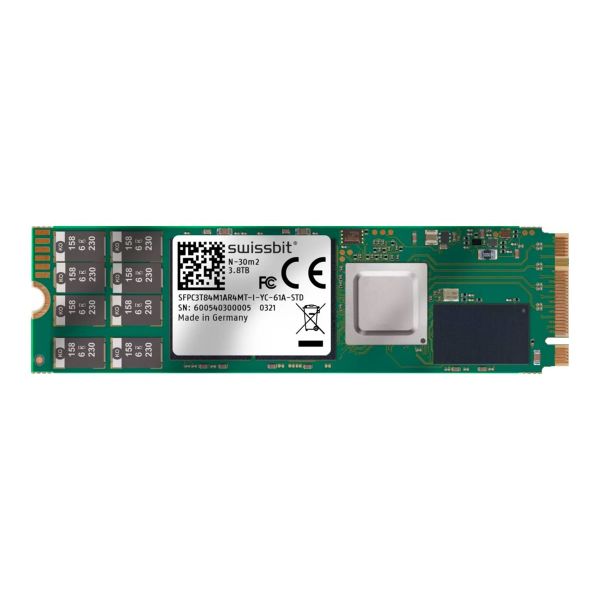

Swissbit N-30m2 - SSD

Availability: Out of stock
SKU
4XB7A90722
Questions before you move forward?

Chat with a JTF expert in Springfield, VA.

Click and connect instantly.

secure transactionsecure transaction
The Lenovo Swissbit N-30m2 is designed for performance, offering a storage capacity of 1.92 TB in a compact M.2 2280 form factor. This internal solid state drive (SSD) utilizes PCI Express 3.1 x4 (NVMe) interface, delivering internal data rates of up to 3490 MBps for read operations and 3110 MBps for write operations. Reliability is paramount, with features such as End-to-End data protection and Power Loss Protection ensuring data integrity and security in demanding environments. Built to withstand conditions, the N-30m2 operates effectively in temperatures ranging from -40°C to 85°C and can handle 85% humidity. With an MTBF rating of 3,000,000 hours, users can trust in its durability for long-term applications. Enhanced with features like thermal throttling and a thermal sensor, this SSD maintains performance under various operating conditions. The implementation of hardware encryption further secures sensitive data, making it a suitable choice for both personal and enterprise usage.
General Information
CategoryHard drives
DescriptionSwissbit N-30m2 - SSD - Read Intensive - encrypted - 1.92 TB - internal - M.2 2280 - PCIe 3.1 x4 (NVMe) - TCG Opal Encryption, Self-Encrypting Drive (SED)
ManufacturerLenovo
MSRP$8,399.00
UNSPSC43201803
Main Specifications
Dimensions & Weight / Depth80 mm
Dimensions & Weight / Height3.8 mm
Dimensions & Weight / Weight9 g
Dimensions & Weight / Width22 mm
Hard Drive / Capacity1.92 TB
Hard Drive / Form FactorM.2 2280
Hard Drive / Hard Drive TypeInternal hard drive
Hard Drive / InterfacePCI Express 3.1 x4 (NVMe)
Hard Drive / InterfacePCI Express 3.1 x4 (NVMe)
Header / BrandSwissbit
Packaged Quantity1
Service & Support / Type1-year warranty
Storage / TypeSolid state drive
Environmental Parameters
Humidity Range Operating85%
Max Operating Temperature85 °C
Max Storage Temperature85 °C
Min Operating Temperature-40 °C
Min Storage Temperature-40 °C
Shock Tolerance (non-operating)1500 g @ 0.5 ms
Vibration Tolerance (non-operating)50 gRMS @ 80-2000 Hz
Expansion & Connectivity
Compatible BayM.2 2280
Interfaces1 x PCI Express 3.1 x4 (NVMe) - M.2 Card
General
Capacity1.92 TB
Depth80 mm
Device TypeSolid state drive - internal
FeaturesEnd-to-end data protection, Thermal throttling, thermal sensor, Power Loss Protection (PLP), TRIM support, Native Command Queuing (NCQ), S.M.A.R.T.
Form FactorM.2 2280
Hardware EncryptionYes
Height3.8 mm
InterfacePCIe 3.1 x4 (NVMe)
NAND Flash Memory Type3D triple-level cell (TLC)
Weight9 g
Width22 mm
Manufacturer Warranty
Service & SupportLimited warranty - replacement - 1 year
Miscellaneous
Compliant Standards2014/30/EU, FCC CFR47 Part 15, RoHS 2011/65/EU, RoHS 2015/863/EU, Directive 2017/2102/EU, Directive 1907/2006/EU, WEEE 2012/19/EU
Performance
4KB Random Read325000 IOPS
4KB Random Write427000 IOPS
Drive ClassRead Intensive
Drive Writes Per Day (DWPD)0.3
Internal Data Rate3490 MBps (read) / 3110 MBps (write)
SSD Endurance1124 TB
Power
Power Consumption
  • 4 Watt (sequential read)
  • 5.3 Watt (sequential write)
  • 4.5 Watt (random read)
  • 4.1 Watt (random write)
Reliability
MTBF3,000,000 hours
Recoverable Errors1 per 10^16
