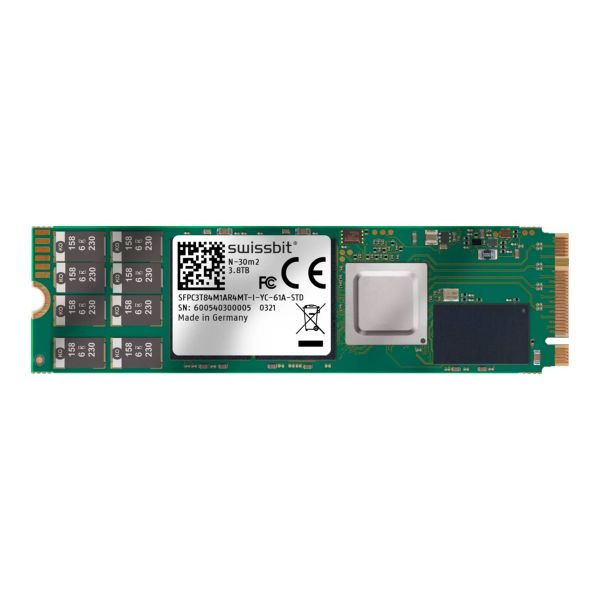

Swissbit N-30m2 - SSD
The Lenovo Swissbit N-30m2 solid state drive offers a 480 GB storage capacity, designed to meet high-performance needs. Engineered with an M.2 2280 form factor, this internal SSD provides an internal data rate of 3490 MBps for read operations and 2420 MBps for write tasks, ensuring fast data access and efficiency. Features such as thermal throttling and built-in power loss protection enhance reliability while maintaining optimal performance under various conditions. With environmental tolerances that support operation between -40°C to 85°C and humidity levels up to 85%, this drive is suitable for demanding applications in diverse environments. Durability is a key aspect of the Lenovo Swissbit N-30m2, boasting a mean time between failures (MTBF) of 3,000,000 hours and an endurance rating of 222 TB. The 3D triple-level cell (TLC) NAND flash technology ensures reliability and longevity, making this SSD a dependable choice for both personal and professional use. Security features like hardware encryption and self-encrypting capabilities safeguard sensitive information, assuring adequate protection for stored data. This drive is crafted to meet rigorous compliance standards, including FCC and RoHS certifications, affirming its quality and environmental safety.
| General Information | |
|---|---|
| Category | Hard drives |
| Description | Swissbit N-30m2 - SSD - Read Intensive - encrypted - 480 GB - internal - M.2 2280 - PCIe 3.1 x4 (NVMe) - TCG Opal Encryption, Self-Encrypting Drive (SED) |
| Manufacturer | Lenovo |
| MSRP | $2,999.00 |
| UNSPSC | 43201803 |
| Main Specifications | |
| Dimensions & Weight / Depth | 80 mm |
| Dimensions & Weight / Height | 3.8 mm |
| Dimensions & Weight / Weight | 9 g |
| Dimensions & Weight / Width | 22 mm |
| Hard Drive / Capacity | 480 GB |
| Hard Drive / Form Factor | M.2 2280 |
| Hard Drive / Hard Drive Type | Internal hard drive |
| Hard Drive / Interface | PCI Express 3.1 x4 (NVMe) |
| Hard Drive / Interface | PCI Express 3.1 x4 (NVMe) |
| Header / Brand | Swissbit |
| Packaged Quantity | 1 |
| Service & Support / Type | 1-year warranty |
| Storage / Type | Solid state drive |
| Environmental Parameters | |
| Humidity Range Operating | 85% |
| Max Operating Temperature | 85 °C |
| Max Storage Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Min Storage Temperature | -40 °C |
| Shock Tolerance (non-operating) | 1500 g @ 0.5 ms |
| Vibration Tolerance (non-operating) | 50 gRMS @ 80-2000 Hz |
| Expansion & Connectivity | |
| Compatible Bay | M.2 2280 |
| Interfaces | 1 x PCI Express 3.1 x4 (NVMe) - M.2 Card |
| General | |
| Capacity | 480 GB |
| Depth | 80 mm |
| Device Type | Solid state drive - internal |
| Features | End-to-end data protection, Thermal throttling, thermal sensor, Power Loss Protection (PLP), TRIM support, Native Command Queuing (NCQ), S.M.A.R.T. |
| Form Factor | M.2 2280 |
| Hardware Encryption | Yes |
| Height | 3.8 mm |
| Interface | PCIe 3.1 x4 (NVMe) |
| NAND Flash Memory Type | 3D triple-level cell (TLC) |
| Weight | 9 g |
| Width | 22 mm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - replacement - 1 year |
| Miscellaneous | |
| Compliant Standards | 2014/30/EU, FCC CFR47 Part 15, RoHS 2011/65/EU, RoHS 2015/863/EU, Directive 2017/2102/EU, Directive 1907/2006/EU, WEEE 2012/19/EU |
| Performance | |
| 4KB Random Read | 121000 IOPS |
| 4KB Random Write | 308000 IOPS |
| Drive Class | Read Intensive |
| Drive Writes Per Day (DWPD) | 0.3 |
| Internal Data Rate | 3490 MBps (read) / 2420 MBps (write) |
| SSD Endurance | 222 TB |
| Power | |
| Power Consumption |
|
| Reliability | |
| MTBF | 3,000,000 hours |
| Recoverable Errors | 1 per 10^16 |
