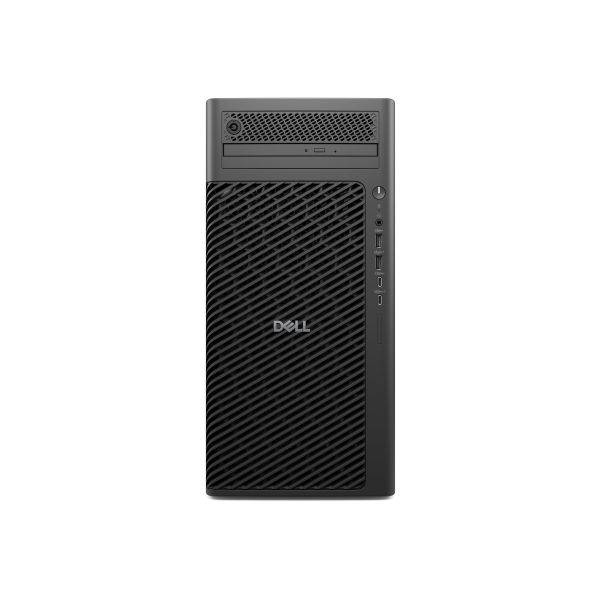

Dell Pro Max Tower T2 FCT2250
| General Information | |
|---|---|
| Category | Desktop computers |
| Description | Dell Pro Max Tower T2 FCT2250 - AI PC - tower Core Ultra 5 235 / up to 5 GHz - RAM 16 GB - SSD 512 GB - SED, NVMe, TLC - DVD-Writer - RTX A1000 - Gigabit Ethernet - Win 11 Pro - monitor: none - keyboard: US English - black (keyboard), black (mouse) - BTS - with 3 Years Basic Onsite Service after Remote Diagnosis with Hardware-Only Support |
| Manufacturer | Dell |
| MSRP | $3,574.11 |
| UNSPSC | 43211507 |
| Main Specifications | |
| Chassis / Form Factor | Tower |
| Dimensions & Weight / Depth | 43.8 cm |
| Dimensions & Weight / Height | 38.7 cm |
| Dimensions & Weight / Weight | 9.7 kg |
| Dimensions & Weight / Width | 18.77 cm |
| Display / Type | None. |
| Hard Drive / Capacity | 512 GB |
| Hard Drive / Interface | PCI Express 4.0 x4 |
| Hard Drive / Interface Type | PCI Express 4.0 x4 |
| Header / Brand | Dell |
| Mainboard / Chipset Type | Intel W880 |
| Miscellaneous / Product Color | Black |
| Networking / Data Link Protocol |
|
| Optical Storage / Drive Type | DVD-Writer |
| Optical Storage / Type | DVD±RW |
| OS Provided / Type | Windows 11 Pro |
| Packaged Quantity | 1 |
| Processor / Clock Speed | 3.4 GHz |
| Processor / Generation | Series 2 |
| Processor / Manufacturer | Intel |
| Processor / Number of Cores | 14-core |
| Processor / Processor Number | 235 |
| Processor / Type | Core Ultra 5 |
| RAM / Data Integrity Check | Non-ECC |
| RAM / Form Factor | DIMM 288-pin |
| RAM / Memory Speed | 2800 MHz |
| RAM / Technology | DDR5 SDRAM |
| System / Hard Drive Capacity | 512 GB |
| System / Type | Personal computer |
| Video Memory / Technology | GDDR6 SDRAM |
| Video Output / Graphics Processor | NVIDIA RTX A1000 |
| Audio Output | |
| Compliant Standards | High Definition Audio |
| Speakers Included | 1 |
| Cache Memory | |
| Cache Per Processor | 24 MB |
| Installed Size | 24 MB |
| Dimensions & Weight | |
| Depth | 43.8 cm |
| Height | 38.7 cm |
| Weight | 9.7 kg |
| Width | 18.77 cm |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Max Operating Temperature | 35 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Bays |
|
| Interfaces |
|
| Slots |
|
| General | |
| AI Level | AI PC |
| Bundled Services | 3 Years Basic Onsite Service after Remote Diagnosis with Hardware-Only Support |
| Color | Black (keyboard), black (mouse) |
| Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
| Product Form Factor | Tower |
| Type | Personal computer |
| Graphics Controller | |
| Graphics Processor | NVIDIA RTX A1000 - up to 6 TOPS |
| Video Interfaces | DisplayPort |
| Video Memory | 8 GB GDDR6 SDRAM |
| Hard Drive | |
| Capacity | 1 x 512 GB |
| Features | Self-Encrypting Drive, NVM Express (NVMe), triple-level cell (TLC) |
| Interface Type | PCI Express 4.0 x4 |
| Type | SSD - M.2 2280 |
| Input Device | |
| Type | Mouse (on selected markets only), keyboard (on selected markets only) |
| Keyboard | |
| Keyboard Name | Dell Pro KM555 Compact Silent Keyboard and Mouse |
| Localization & Layout | US English |
| Miscellaneous | |
| Pricing Type | Build To Stock (BTS) |
| Security Slot Type | Kensington security slot |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately), chassis intrusion switch, lockable cable covers |
| Monitor | |
| Monitor Type | None. |
| Networking | |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Ethernet Controller | Intel I219-LM |
| Neural Processor Unit (NPU) | |
| AI Datatype Support on NPU | INT8 |
| AI Software Frameworks Supported by NPU | DirectML, OpenVINO, WebNN, WindowsML, ONNX RT |
| Neural Processor Unit (NPU) | Intel AI Boost |
| NPU Performance Up To (TOPS) | 13 TOPS |
| Sparsity Support | Yes |
| Total Processor Performance Up To (TOPS) | 27 TOPS |
| Windows Studio Effects Support | Yes |
| Operating System / Software | |
| OS Provided | Windows 11 Pro |
| Software | Intel Rapid Storage Technology, Cyberlink Media Suite Essentials without Media, Activate your Microsoft 365 for a 30 day trial, CrowdStrike Endpoint Protection Pro Essential (1 year) |
| Optical Storage | |
| Type | DVD±RW DVD-Writer |
| Power | |
| 80 PLUS Certification | 80 PLUS Platinum |
| Device Type | Power supply |
| Power Provided | 500 watt |
| Voltage Required | AC 90-264 V (50/60 Hz) |
| Processor / Chipset | |
| Chipset Type | Intel W880 |
| Clock Speed | 3.4 GHz (P-core) / 2.9 GHz (E-core) |
| CPU | Intel Core Ultra 5 (Series 2) 235 |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| Max Turbo Speed | 5 GHz (P-core) / 4.4 GHz (E-core) |
| Number of Cores | 14-core |
| Processor Main Features | 14 Threads |
| RAM | |
| Configuration Features | 1 x 16 GB |
| Effective Memory Speed | 2800 MHz |
| Form Factor | DIMM 288-pin |
| Installed Size | 16 GB (installed) / 128 GB (max) |
| Rated Memory Speed | 2800 MHz |
| Slots | 4 (total) / 3 (empty) |
| Technology | DDR5 SDRAM - non-ECC |
| Sustainability Information | |
| Carbon Footprint | 406 kg carbon emissions |
| ENERGY STAR Certified | Yes |
| EOL (kg CO2e) | 13.8 |
| EPEAT Compliant | EPEAT Gold |
| Logistics (kg CO2e) | 15.43 |
| Manufacturing (kg CO2e) | 145.35 |
| PAIA Version | GaBi version 1, 2024 |
| Total Carbon w/o Use Phase (kg CO2e) | 174.58 |
| Use (kg CO2e) | 231.42 |
