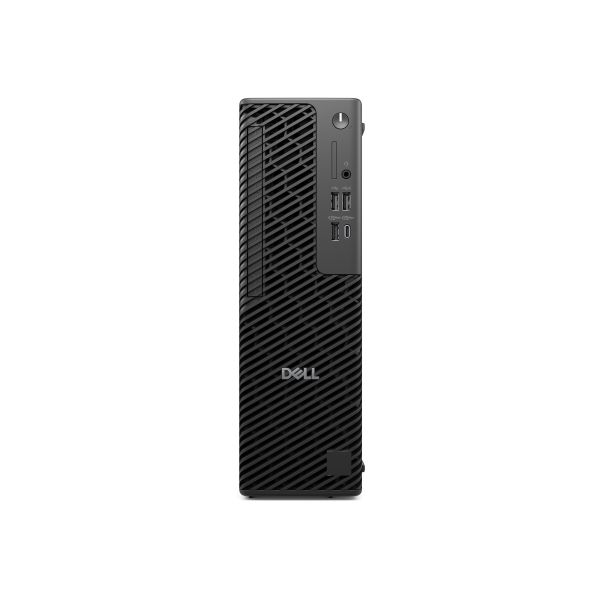

Dell Pro Max Slim FCS1250

Be the first to review this product

Availability: Out of stock

SKU

29D5F

UPC Code

884116490722

Compare with Similar items

Request a Quote

Questions before you move forward?

Chat with a JTF expert in Springfield, VA.

Click and connect instantly.

secure transaction

Details

The Dell Pro Max Slim FCS1250 is a compact and efficient personal computer designed to handle a variety of tasks. This slim desktop features a Core Ultra 5 processor with 14 cores and 14 threads, complemented by 16 GB of DDR5 RAM for smooth multitasking performance. With a 512 GB PCI Express 4.0 x4 SSD, users can expect fast boot times and ample storage for applications and files. Built to meet standards, the Dell Pro Max Slim FCS1250 is EPEAT Gold and ENERGY STAR certified, ensuring energy efficiency and environmental responsibility. The system is equipped with connectivity options, including USB 3.2 Gen 2x2 and DisplayPort 1.4a, providing flexibility for peripherals. Integrated security features like a chassis intrusion switch and a padlock loop enhance the security of sensitive data, making this desktop suitable for professionals and home users.

Specifications

General Information
Category	Desktop computers
Description	Dell Pro Max Slim FCS1250 - AI PC - slim desktop Core Ultra 5 245 / up to 5.1 GHz - RAM 16 GB - SSD 512 GB - SED, NVMe, TLC, Class 40 - DVD-Writer - RTX A1000 - Gigabit Ethernet, Bluetooth, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11be (Wi-Fi 7) - Win 11 Pro - monitor: none - keyboard: US English - black (keyboard), black (mouse) - BTS - with 3 Years Basic Onsite Service after Remote Diagnosis with Hardware-Only Support
Manufacturer	Dell
MSRP	$3,835.63
UNSPSC	43211507
Main Specifications
Chassis / Form Factor	Small form factor
Dimensions & Weight / Depth	29.3 cm
Dimensions & Weight / Height	30.35 cm
Dimensions & Weight / Weight	3.97 kg
Dimensions & Weight / Width	9.5 cm
Display / Type	None.
Hard Drive / Capacity	512 GB
Hard Drive / Interface	PCI Express 4.0 x4
Hard Drive / Interface Type	PCI Express 4.0 x4
Header / Brand	Dell
Mainboard / Chipset Type	Intel W880
Miscellaneous / Product Color	Black
Networking / Data Link Protocol	Bluetooth Ethernet Fast Ethernet Gigabit Ethernet IEEE 802.11a IEEE 802.11ac IEEE 802.11ax (Wi-Fi 6) IEEE 802.11b IEEE 802.11be (Wi-Fi 7) IEEE 802.11g IEEE 802.11n
Networking / Wireless LAN Supported	Yes
Networking / Wireless Protocol	802.11a/b/g/n/ac/ax/be Bluetooth
Optical Storage / Drive Type	DVD-Writer
Optical Storage / Type	DVD±RW
OS Provided / Type	Windows 11 Pro
Packaged Quantity	1
Processor / Clock Speed	3.5 GHz
Processor / Generation	Series 2
Processor / Manufacturer	Intel
Processor / Number of Cores	14-core
Processor / Processor Number	245
Processor / Type	Core Ultra 5
RAM / Data Integrity Check	Non-ECC
RAM / Form Factor	DIMM 288-pin
RAM / Memory Speed	2800 MHz
RAM / Technology	DDR5 SDRAM
System / Hard Drive Capacity	512 GB
System / Type	Personal computer
Video Memory / Technology	GDDR6 SDRAM
Video Output / Graphics Processor	NVIDIA RTX A1000
Audio Output
Compliant Standards	High Definition Audio
Cache Memory
Cache Per Processor	24 MB
Installed Size	24 MB
Dimensions & Weight
Depth	29.3 cm
Height	30.35 cm
Weight	3.97 kg
Width	9.5 cm
Environmental Parameters
Humidity Range Operating	10 - 90% (non-condensing)
Max Operating Temperature	35 °C
Min Operating Temperature	0 °C
Expansion / Connectivity
Bays	1 (total) / 1 (free) x internal 3.5" 1 (total) / 0 (free) x external 5.25" (9.5mm height)
Interfaces	1 x LAN (Gigabit Ethernet) 3 x USB 3.2 Gen 1 1 x USB 3.2 Gen 2 1 x USB-C 3.2 Gen 2 1 x USB-C 3.2 Gen 2x2 4 x USB 2.0 (one of them with PowerShare) 1 x headphones/microphone 3 x DisplayPort 1.4a 4 x Mini DisplayPort 1.4a
Slots	2 (total) / 1 (free) x M.2 Card - 2230/2280 (for SSD) 1 (total) / 1 (free) x M.2 Card - 2230 (for SSD) 1 (total) / 0 (free) x M.2 Card - 2230 (for wireless module) 1 PCIe 4.0 x16 - half-height 1 PCIe 3.0 x4 - half-height 1 PCIe 3.0 x1 - half-height
General
AI Level	AI PC
Built-in Devices	Internal antenna
Bundled Services	3 Years Basic Onsite Service after Remote Diagnosis with Hardware-Only Support
Color	Black (keyboard), black (mouse)
Embedded Security	Trusted Platform Module (TPM 2.0) Security Chip
Product Form Factor	Slim desktop
Type	Personal computer
Graphics Controller
Graphics Processor	NVIDIA RTX A1000 - up to 8 TOPS
Video Interfaces	DisplayPort
Video Memory	8 GB GDDR6 SDRAM
Hard Drive
Capacity	1 x 512 GB
Features	Self-Encrypting Drive, NVM Express (NVMe), triple-level cell (TLC), Class 40
Interface Type	PCI Express 4.0 x4
Type	SSD - M.2 2280
Input Device
Type	Mouse (on selected markets only), keyboard (on selected markets only)
Keyboard
Keyboard Name	Dell Pro KM555 Compact Silent Keyboard and Mouse
Localization & Layout	US English
Miscellaneous
Pricing Type	Build To Stock (BTS)
Security Slot Type	Kensington security slot
Theft/Intrusion Protection	Security lock slot (cable lock sold separately), padlock loop, chassis intrusion switch
Monitor
Monitor Type	None.
Networking
Data Link Protocol	Ethernet, Fast Ethernet, Gigabit Ethernet, Bluetooth, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11be (Wi-Fi 7)
Ethernet Controller	Intel I219-LM
Features	MU-MIMO Support, dual stream (2x2)
Interface (Bus) Type	M.2 2230
Wireless LAN Supported	Yes
Wireless NIC	Intel WI-FI 7 BE200
Neural Processor Unit (NPU)
AI Datatype Support on NPU	INT8
AI Software Frameworks Supported by NPU	DirectML, OpenVINO, WebNN, WindowsML, ONNX RT
Neural Processor Unit (NPU)	Intel AI Boost
NPU Performance Up To (TOPS)	13 TOPS
Sparsity Support	Yes
Total Processor Performance Up To (TOPS)	29 TOPS
Windows Studio Effects Support	Yes
Operating System / Software
OS Provided	Windows 11 Pro
Software	Intel Rapid Storage Technology, Activate your Microsoft 365 for a 30 day trial, CrowdStrike Endpoint Protection Pro Essential (1 year)
Optical Storage
Type	DVD±RW DVD-Writer
Power
80 PLUS Certification	80 PLUS Platinum
Device Type	Power supply
Power Provided	360 watt
Voltage Required	AC 90-264 V (50/60 Hz)
Processor / Chipset
Chipset Type	Intel W880
Clock Speed	3.5 GHz (P-core) / 3 GHz (E-core)
CPU	Intel Core Ultra 5 (Series 2) 245
CPU Qty	1
Max CPU Qty	1
Max Turbo Speed	5.1 GHz (P-core) / 4.5 GHz (E-core)
Number of Cores	14-core
Processor Main Features	14 Threads
RAM
Configuration Features	1 x 16 GB
Effective Memory Speed	2800 MHz
Form Factor	DIMM 288-pin
Installed Size	16 GB (installed) / 128 GB (max)
Rated Memory Speed	2800 MHz
Slots	4 (total) / 3 (empty)
Technology	DDR5 SDRAM - non-ECC
Sustainability Information
Carbon Footprint	202 kg carbon emissions
ENERGY STAR Certified	Yes
EOL (kg CO2e)	3.64
EPEAT Compliant	EPEAT Gold
Logistics (kg CO2e)	10.1
Manufacturing (kg CO2e)	95.75
PAIA Version	GaBi version 1, 2024
Total Carbon w/o Use Phase (kg CO2e)	109.282
Use (kg CO2e)	92.72
