SMART-UPS X 3000VA LCD RT SHORT DEPTH 208V CONVERTIBLE

Availability: In stock
SKU
SMX3000HVT
UPC Code
731304292630
Request a Quote
Questions before you move forward?

Chat with a JTF expert in Springfield, VA.

Click and connect instantly.

secure transactionsecure transaction
This APC Smart-UPS is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. The 3kVA line interactive 4U rack/tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SMX comes with NEMA L6-20P input, 2x NEMA L6-20R, 4x IEC 320 C13 and 2x IEC 320 C19 outlets. The UPS has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. This uninterrupted power supply can connect to EcoStruxure IT or third-party centralized management platforms. The SMX UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. This is compatible with dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. The Smart-UPS comes with a pair of tower-mounting stabilizing feet and rack-mounting brackets. The 3 switchable outlet groups allow more granular management of the power supplied to your devices. The Emergency Power Off feature enables the UPS to remotely shutdown during emergencies.

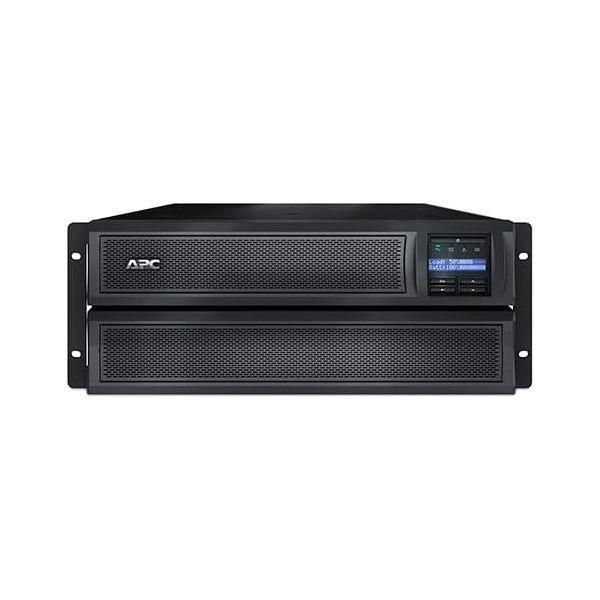

Product image SMX3000HVT
  • Yes, SMX3000HVT supports up to 10 SMX120BP battery packs.:
  • Options for monitoring and managing your UPS include EcoStruxure IT, Network Management Card and PowerChute.:
  • Switched outlet groups provide greater control, allowing you to reboot hung devices, program sequenced on-and-off and non-critical load shedding of equipment.:
  • Select models with an "NC" suffix come with the network management card preinstalled.:
  • APC’s patented ‘green’ mode bypass components that perform AVR when not needed. This results in higher efficiencies across a wide range of load conditions.:
  • PowerChute Network Shutdown v5.0 supports vSphere Cluster Services (vCLS). Ongoing software update support for the latest virtualization environment updates & troubleshooting. Latest cybersecurity updates in PKI support to harden security across the interfaces. Validated integrations with the latest virtual and HCI infrastructure versions for ease of deployment. PowerChute can be fully deployed within the VxRail cluster through the Dell VxRail API Integration (From v4.5), saving space and reducing hardware needs. VxRail cluster shutdown redundancy provided with the Network Management Card 3.:
General Information
CategoryPower conditioning equipment
DescriptionSMART-UPS X 3000VA LCD RT SHORT DEPTH 208V CONVERTIBLE
ManufacturerAPC by Schneider Electric
MSRP$3,995.00
UNSPSC39121000
Main Specifications
Dimensions & Weight / Depth48.3 cm
Dimensions & Weight / Height43.2 cm
Dimensions & Weight / Weight38.64 kg
Dimensions & Weight / Width17.8 cm
Header / BrandAPC
Miscellaneous / Product ColorBlack
Networking / Remote Management Interface
  • RS-232
  • USB
Packaged Quantity1
Power Device / Form FactorRack-mountable / external
Power Device / Output Connector Qty11
Power Device / Power Capacity (VA)3000 VA
Power Device / UPS TechnologyLine interactive
Power Device / Voltage RequiredAC 208 V
Product TypeUPS
Service & Support / Type3-year warranty
Battery
Recharge Time3 hours
Run Time (Up To)
  • 6 min at full load
  • 18 min at half load
TechnologyLead acid
Dimensions & Weight
Depth48.3 cm
Height43.2 cm
Weight38.64 kg
Width17.8 cm
Dimensions & Weight (Shipping)
Shipping Depth63.3 cm
Shipping Height33 cm
Shipping Weight47.73 kg
Shipping Width58.6 cm
Environmental Parameters
Humidity Range Operating0 - 95%
Max Operating Temperature40 °C
Min Operating Temperature0 °C
Sound Emission55 dBA
Expansion / Connectivity
Expansion Slots1 (total) / 1 (free) x SmartSlot
Interfaces
  • 1 x EPO (emergency power off)
  • 1 x management (RS-232) - RJ-45
  • 1 x management (USB) - 4 pin USB Type B
General
ColorBlack
Device TypeUPS - rack-mountable / external
Height (Rack Units)4U
Manufacturer Warranty
Service & Support
  • Limited warranty - 3 years
  • Limited warranty - battery - 2 years
Miscellaneous
Cables Included
  • Serial cable - external
  • USB cable - external
  • Power cable 1.83 m
Compliant StandardsCSA, C-Tick, GOST, EN 60950, UL 1449, UL 1778, VDE, EN 50091-2, IRAM, RoHS, EN 50091-1, FCC Part 15 A, REACH
FeaturesUser-replaceable removable battery, audible alarm, emergency power off, LCD display, Automatic Voltage Regulation (AVR), LED indicators, noise filtering, automatic self-test, predicitive failure notification, hot-swappable batteries
Pricing TypeAPC Take-Back
Rack Mounting KitIncluded
Networking
Remote Management InterfaceRS-232, USB
Power Device
Circuit ProtectionCircuit breaker
Efficiency98.2%
Frequency Provided50/60 Hz
Frequency Required50/60 Hz
Input ConnectorsPower IEC 60320 C20, power CEE 7/7, power BS 1363A
Input VoltageAC 208 V
Input Voltage RangeAC 141 - 255 / 160 - 280 V
Input Wiring1-phase
Output VoltageAC 208 V ± 5% - 50/60 Hz
Output WaveformSinewave
Power Capacity2700 watt / 3000 VA
Power Output Connectors Details
  • 2 x power NEMA L6-20R
  • 4 x power IEC 60320 C13
  • 3 x IEC jumper
  • 2 x power IEC 60320 C19
Surge Energy Rating645 joules
Surge SuppressionYes
UPS TechnologyLine interactive
Software / System Requirements
Software IncludedDrivers & Utilities
Sustainability Information
Packaging Recycled ContentMade of recycled cardboard
