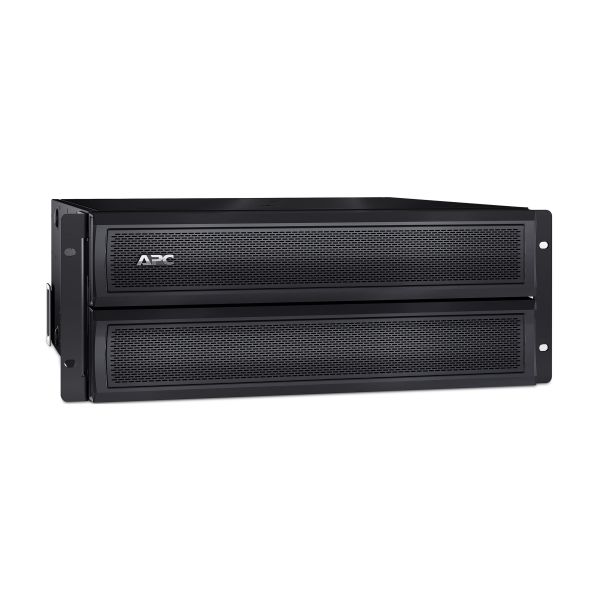

APC Smart-UPS X 120V External Battery Pack Rack/Tower
- Hot-swap Batteries to Extend Useful Life: Just as the APC Smart-UPS, the External Battery Pack allows its battery cartridges to be replaced without disconnecting the battery pack or interrupting UPS operation. | Plug-and-play Installation of Battery Packs | The battery pack offers easy plug-and-play installation onto an operating APC Smart-UPS, ensuring power availability while runtime capacity is added. An easy-to-follow installation guide is included. | Optimal Battery Backup Performance | Through the APC Smart-UPS’ intelligent battery management and precision charging, the battery pack maintains the UPS system’s performance, reliability, and useful life. | Scalable Runtime Option | The APC battery pack provides scalable runtime to the APC Smart-UPS family, allowing multiple battery packs to be quickly added if the need arises. | Flexible Physical Configuration | The battery pack operates equally in tower configuration, standing next to its APC Smart-UPS, or in rack-mount configuration, mounted below the UPS. Rack-mounting brackets supplied with battery pack. | Two-Year Factory Warranty | APC warrants battery packs to be free from defects for two years from the date of purchase. | Package Contents | APC SMX120BP External Battery Pack, installation guide, and rack-mounting brackets.
- About APC: APC, a flagship brand of Schneider Electric, provides clean battery backup power, surge protection, and IT physical infrastructure inside and outside the traditional IT environment. Through our APC brand products and solutions, we offer certainty in a connected world. Certainty that our reliable, integrated physical infrastructure solutions are based on the fundamental premise that your data and information should — and always will be — accessible.
| General Information | |
|---|---|
| Category | Uninterruptible power supplies |
| Description | APC Smart-UPS X 120V External Battery Pack Rack/Tower - Battery enclosure (rack-mountable / external) - 2 x battery - lead acid - 4U - black - for P/N: AR106SH6, AR109SH6, AR112SH6, AR3006, AR3006SP, AR3103, AR3103SP, AR3106, AR3106SP |
| Manufacturer | APC by Schneider Electric |
| MSRP | $1,550.00 |
| UNSPSC | 39121011 |
| Main Specifications | |
| Dimensions & Weight / Depth | 48.3 cm |
| Dimensions & Weight / Height | 43.2 cm |
| Dimensions & Weight / Weight | 60.91 kg |
| Dimensions & Weight / Width | 178 cm |
| Header / Brand | APC |
| Miscellaneous / Product Color | Black |
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable / external |
| Product Type | Battery enclosure |
| Service & Support / Type | 2-year warranty |
| Battery | |
| Quantity | 2 |
| Technology | Lead acid |
| Compatibility Information | |
| Designed For | P/N: AR106SH6, AR109SH6, AR112SH6, AR3003, AR3003SP, AR3006, AR3006SP, AR3103, AR3103SP, AR3106, AR3106SP, AR3357X674, AR9300SP, AR9300SP-R, AR9307SP, AR9307SP-R, SMX2000LV, SMX2000LVNC, SMX2000LVNCUS, SMX2000LVUS, SMX2200HV, SMX2200HVNC, SMX3000HV, SMX3000HV-BR, SMX3000HVNC, SMX3000HVT, SMX3000HVTUS, SMX3000LV, SMX3000LV2U-BR, SMX3000LVNC, SMX3000LVNCUS, SMX3000LVUS |
| Dimensions & Weight | |
| Depth | 48.3 cm |
| Height | 43.2 cm |
| Weight | 60.91 kg |
| Width | 178 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 63.3 cm |
| Shipping Height | 33 cm |
| Shipping Weight | 65.45 kg |
| Shipping Width | 58.6 cm |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| General | |
| Color | Black |
| Device Type | Battery enclosure - rack-mountable / external |
| Height (Rack Units) | 4U |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Compliant Standards | RoHS, REACH |
| Features | User-replaceable removable battery |
| Rack Mounting Kit | Included |
| Power Device | |
| Output Voltage | 120 V |
| Sustainability Information | |
| Packaging Recycled Content | Made of recycled cardboard |
