SMART UPS SRT 8000VA 208V

Availability: Out of stock
SKU
SRT8KXLT
UPC Code
731304292791
Request a Quote
Questions before you move forward?

Chat with a JTF expert in Springfield, VA.

Click and connect instantly.

secure transactionsecure transaction
This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 8kVA on-line tower UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with hard wire 3-wire (2P+E) input, 4x NEMA L6-20R and 2x NEMA L6-30R outlets. The UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It has an additional SmartSlot for optional accessory card such as Dry Contact I/O card. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. The UPS is compatible with SRTRK2 (4-post) and SRTRK3 (2-post) rail kits sold separately.

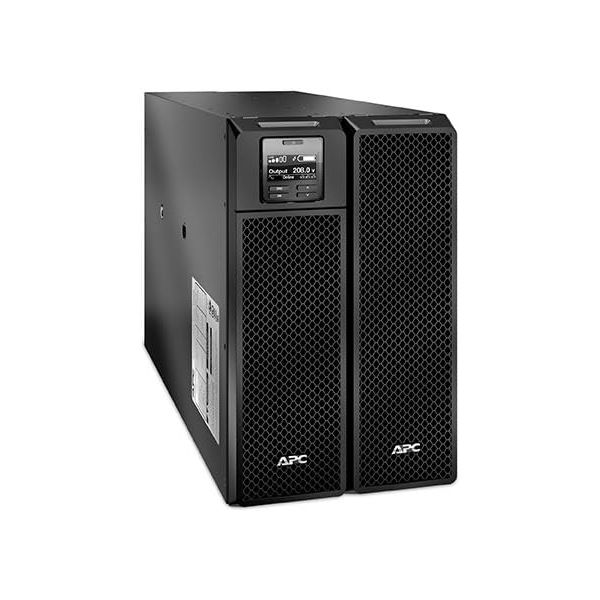

Product image SRT8KXLT
  • Yes, Smart-UPS Ultra SRT8KXLT supports up to 10 APC external SRT192BP2 battery packs.:
  • Options for monitoring and managing your UPS include EcoStruxure IT, Network Management Card, and PowerChute™ Software.:
  • PowerChute Network Shutdown is available for download from the apc.com. It is a UPS management software enabling graceful system shutdown in the event of an extended power outage and provides energy management capabilities for desktops, servers, and workstations.:
  • PowerChute Network Shutdown v5.0 supports vSphere Cluster Services (vCLS). Ongoing software update support for the latest virtualization environment updates & troubleshooting. Latest cybersecurity updates in PKI support to harden security across the interfaces. Validated integrations with the latest virtual and HCI infrastructure versions for ease of deployment. PowerChute can be fully deployed within the VxRail cluster through the Dell VxRail API Integration (From v4.5), saving space and reducing hardware needs. VxRail cluster shutdown redundancy is provided with the Network Management Card 3.:
General Information
CategoryPower conditioning equipment
DescriptionSMART UPS SRT 8000VA 208V
ManufacturerAPC by Schneider Electric
MSRP$14,465.00
UNSPSC39121000
Main Specifications
Dimensions & Weight / Depth71.5 cm
Dimensions & Weight / Height43.2 cm
Dimensions & Weight / Weight111.82 kg
Dimensions & Weight / Width26.3 cm
Header / BrandAPC
Miscellaneous / Product ColorBlack
Networking / Remote Management Interface
  • Ethernet 10/100
  • USB
Packaged Quantity1
Power Device / Form FactorRack-mountable / external
Power Device / Output Connector Qty7
Power Device / Power Capacity (VA)8000 VA
Power Device / UPS TechnologyOn-line
Power Device / Voltage Required
  • AC 208/240 V
  • AC 230 V
Product TypeUPS
Service & Support / Type3-year warranty
Battery
FeaturesMaintenance free, sealed, leak-proof
Recharge Time3 hours
Run Time (Up To)
  • 5.3 min at full load
  • 14.8 min at half load
TechnologyLead acid
Compatibility Information
Designed ForP/N: SRT192BP2, SRT192BP2US, SRT192RMBP2, SRT192RMBP2US
Dimensions & Weight
Depth71.5 cm
Height43.2 cm
Weight111.82 kg
Width26.3 cm
Dimensions & Weight (JTFpping)
JTFpping Depth254 cm
JTFpping Height46.1 cm
JTFpping Weight126.82 kg
JTFpping Width60 cm
Environmental Parameters
Humidity Range Operating0 - 95% (non-condensing)
Max Operating Temperature40 °C
Min Operating Temperature0 °C
Sound Emission55 dBA
Expansion / Connectivity
Expansion Slots1 (total) / 1 (free) x SmartSlot
Interfaces
  • 1 x management (Ethernet) - RJ-45
  • 1 x management (USB) - 4 pin USB Type B
  • 1 x EPO (emergency power off)
  • 1 x serial - RJ-45
General
ColorBlack
Device TypeUPS - rack-mountable / external
Height (Rack Units)6U
Manufacturer Warranty
Service & Support
  • Limited warranty - 3 years
  • Limited warranty - battery - 2 years
Miscellaneous
Compliant StandardsC-Tick, VDE, IEC 60950, EN 50091-2, RoHS, EN 50091-1, REACH, EN 62040-2, IP20, EAC
FeaturesUser-replaceable removable battery, audible alarm, LCD display
Pricing TypeAPC Take-Back
Networking
Remote Management InterfaceEthernet 10/100, USB
Power Device
Efficiency98%
Frequency Provided50/60 Hz
Frequency Required45 - 65 Hz
Input Connectors1 x hardwire 3-wire (2PH + G)
Input VoltageAC 208/240 V
Input Wiring1-phase
Output VoltageAC 208/230 V ± 3% - 50/60 Hz
Output WaveformSinewave
Power Capacity8000 watt / 8000 VA
Power Output Connectors Details
  • 4 x power NEMA L6-20R
  • 2 x power NEMA L6-30R
  • 1 x hardwire 3-wire (2PH + G)
Surge Energy Rating480 joules
Surge SuppressionYes
UPS TechnologyOn-line
Sustainability Information
Packaging Recycled ContentMade of recycled cardboard
