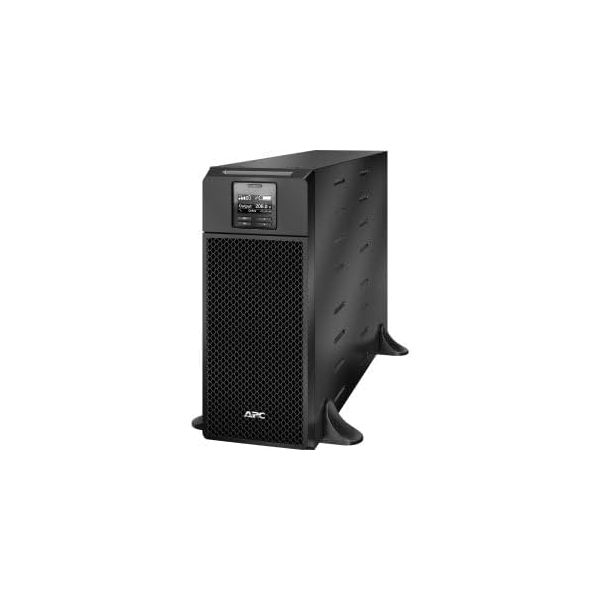

SMART UPS SRT 6000VA 208V
- SRT6KXLT: LCD graphics display: | Text and mimic diagrams that display modes of operation, system parameters and alarms. | 10/100 BaseT Connection: | Connect the device to a network using a 10 or 100 BaseT connection | Battery failure notification: | Provides early-warning fault analysis on batteries enabling timely preventive maintenance | Rack/Tower convertible: | Protects the initial investment in the UPS when migrating from tower to rack-mount environment.
- Availability: Automatic internal bypass: | Supplies utility power to the connected loads in the event of a UPS power overload or fault. | Scalable runtime: | Allows additional run time to be quickly added as needed. | Intelligent battery management: | Maximizes battery performance, life, and reliability through intelligent, precision charging. | Hot-swappable batteries: | Ensures clean, uninterrupted power to protected equipment while batteries are being replaced | Automatic restart of loads after UPS shutdown: | Automatically starts up the connected equipment upon the return of utility power. | Temperature-compensated battery charging: | Prolongs battery life by regulating the charge voltage according to battery temperature.
- Manageability: Network manageable: | Provides remote power management of the UPS over the network. | InfraStruXure Manager Compatible: | Enables centralized management via the APC InfraStruXure Manager. | SmartSlot: | Customize UPS capabilities with management cards. | LED status indicators: | Quickly understand unit and power status with visual indicators. | Serial connectivity: | Provides management of the UPS via a serial port.
- Adaptability: Plug-and-Play external batteries | Ensures clean, uninterrupted power to the loads when adding extra runtime to the UPS. | Rack/Tower convertible: | Protects the initial investment in the UPS when migrating from tower to rack-mount environment. | Flash upgradeable firmware: | Install maintenance releases of firmware remotely using FTP.
- Serviceability: User-replaceable batteries: | Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR) | Automatic self-test: | Periodic battery self-test ensures early detection of a battery that needs to be replaced. | Predictive failure notification: | Provides early-warning fault analysis ensuring proactive component replacement. | Disconnected battery notification: | Warns when a battery is not available to provide backup power. | Audible alarms: | Provides notification of changing utility power and UPS power conditions
- Protection: Frequency and voltage regulation: | Gives higher application availability by correcting poor frequency and voltage conditions without using the battery. | Power conditioning: | Protects connected loads from surges, spikes, lightning, and other power disturbances. | Input power factor correction: | Minimizes installation costs by enabling the use of smaller generators and cabling. | Generator compatible: | Ensures clean, uninterrupted power to protected equipment when generator power is used. | Cold-start capable: | Provides temporary battery power when the utility power is out. | Resettable circuit breaker: | Easy recovery from overloads; no need to replace a fuse. | Safety-agency approved: | Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
- About APC: APC, a flagship brand of Schneider Electric, provides clean battery backup power, surge protection, and IT physical infrastructure inside and outside the traditional IT environment. Through our APC brand products and solutions, we offer certainty in a connected world. Certainty that our reliable, integrated physical infrastructure solutions are based on the fundamental premise that your data and information should — and always will be — accessible.
| General Information | |
|---|---|
| Category | Power conditioning equipment |
| Description | SMART UPS SRT 6000VA 208V |
| Manufacturer | APC by Schneider Electric |
| MSRP | $12,150.00 |
| UNSPSC | 39121000 |
| Main Specifications | |
| Dimensions & Weight / Depth | 71.9 cm |
| Dimensions & Weight / Height | 43.2 cm |
| Dimensions & Weight / Weight | 61.23 kg |
| Dimensions & Weight / Width | 17.4 cm |
| Header / Brand | APC |
| Miscellaneous / Product Color | Black |
| Networking / Remote Management Interface |
|
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable / external |
| Power Device / Output Connector Qty | 6 |
| Power Device / Power Capacity (VA) | 6000 VA |
| Power Device / UPS Technology | On-line |
| Power Device / Voltage Required |
|
| Product Type | UPS |
| Service & Support / Type | 3-year warranty |
| Battery | |
| Features | Maintenance free, sealed, leak-proof |
| Recharge Time | 1.5 hours |
| Run Time (Up To) |
|
| Technology | Lead acid |
| Type | Expandable |
| Voltage Provided | 192 V |
| Compatibility Information | |
| Designed For | P/N: SRT192BP, SRT192BPUS, SRT192RMBP, SRT192RMBPUS |
| Dimensions & Weight | |
| Depth | 71.9 cm |
| Height | 43.2 cm |
| Weight | 61.23 kg |
| Width | 17.4 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 96 cm |
| Shipping Height | 37 cm |
| Shipping Weight | 64.41 kg |
| Shipping Width | 61 cm |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Sound Emission | 55 dBA |
| Expansion / Connectivity | |
| Expansion Slots | 1 (total) / 1 (free) x SmartSlot |
| Interfaces |
|
| General | |
| Color | Black |
| Device Type | UPS - rack-mountable / external |
| Height (Rack Units) | 4U |
| Manufacturer Warranty | |
| Service & Support |
|
| Miscellaneous | |
| Cables Included | USB cable - external |
| Compliant Standards | NOM, UL 1778, RoHS, FCC Part 15 A, IP20, CSA C22.2 No.107.3-05 |
| Features | User-replaceable removable battery, audible alarm, LCD display, internal bypass, LED indicators, cold-start function, firmware upgradable, automatic self-test, hot-swappable batteries, reset breaker, auto restart, temperature-compensated battery charging, generator compatible, Intelligent Battery Management, double conversion |
| Included Accessories | Temperature probe, removable support feet |
| Pricing Type | APC Take-Back |
| Networking | |
| Remote Management Interface | Ethernet 10/100, USB, serial |
| Remote Management Protocol | SNMP, HTTP |
| Power Device | |
| Circuit Protection | Circuit breaker |
| Efficiency | 94.5% at 50% Load, 94.4% at 100% Load, 93% at 25% Load, 94.6% at 75% Load |
| Frequency Provided | 50/60 Hz ± 3Hz |
| Frequency Required | 40 - 70 Hz |
| Input Connectors | 1 x hardwire 3-wire (2PH + G) |
| Input Voltage | AC 208/240 V |
| Input Voltage Range | AC 160 - 275 V |
| Input Voltage Range (Adjustable) | AC 100 - 275 V |
| Input Wiring | 1-phase |
| Output Voltage | AC 208/230 V ± 2% - 50/60 Hz |
| Output Waveform | Sinewave |
| Power Capacity | 6 kW / 6000 VA |
| Power Output Connectors Details |
|
| Surge Energy Rating | 480 joules |
| Surge Suppression | Yes |
| Total Harmonic Distortion (THD) | 2 % |
| UPS Technology | On-line |
| Software / System Requirements | |
| Software Included | APC PowerChute |
| Sustainability Information | |
| ENERGY STAR | Yes |
| Packaging Recycled Content | Made of recycled cardboard |
