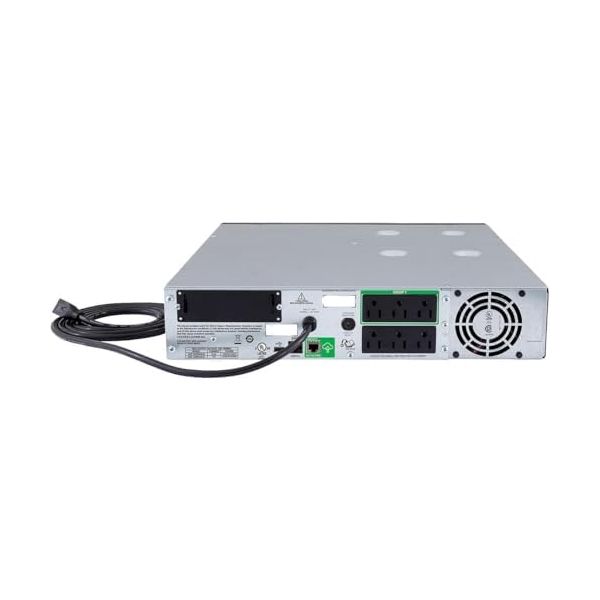

SMART UPS 1000VA LCD RM 2U 120VWITH SMARTCONNECT
- Smart-UPS SMT range is for small to medium businesses who do not have the time or resources to monitor their UPS devices but understand the importance of doing so, or who have trusted a Partner with this task.:
- Yes, the UPS is compatible with a dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications.:
- Our vendor-neutral data center infrastructure management software, EcoStruxure™ IT, provides flexible deployment options to monitor critical equipment and can deliver insights such as smart alarms directly to your smartphone, making it ideal for customers requiring visibility into UPS, cooling, power and more.:
- Yes, options for monitoring and managing your UPS include SmartConnect Ethernet Port, EcoStruxure IT, Network Management Card and PowerChute.:
- Switched outlet groups provide greater control, allowing you to reboot hung devices, program sequenced on-and-off and non-critical load shedding of equipment.:
- All new devices are on-boarded to the Standard plan with remote power monitoring, UPS and power events, automated distribution of firmware to UPSs with one-click remote installation and downloadable asset and renewal reports. Advanced Plan option provides UPS Outlet Group reboot for remote power cycling of connected IT equipment. Features vary with terms of use.:
- PowerChute Network Shutdown v5.0 supports vSphere Cluster Services (vCLS). Ongoing software update support for the latest virtualization environment updates & troubleshooting. Latest cybersecurity updates in PKI support to harden security across the interfaces. Validated integrations with the latest virtual and HCI infrastructure versions for ease of deployment. PowerChute can be fully deployed within the VxRail cluster through the Dell VxRail API Integration (From v4.5), saving space and reducing hardware needs. VxRail cluster shutdown redundancy provided with the Network Management Card 3.:
| General Information | |
|---|---|
| Category | Power conditioning equipment |
| Description | SMART UPS 1000VA LCD RM 2U 120VWITH SMARTCONNECT |
| Manufacturer | APC by Schneider Electric |
| MSRP | $1,120.00 |
| UNSPSC | 39121000 |
| Main Specifications | |
| Dimensions & Weight / Depth | 47.7 cm |
| Dimensions & Weight / Height | 8.6 cm |
| Dimensions & Weight / Weight | 25.3 g |
| Dimensions & Weight / Width | 43.2 cm |
| Header / Brand | APC |
| Miscellaneous / Product Color | Black |
| Networking / Remote Management Interface | USB |
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable |
| Power Device / Output Connector Qty | 6 |
| Power Device / Power Capacity (VA) | 1000 VA |
| Power Device / UPS Technology | Line interactive |
| Power Device / Voltage Required | AC 120 V |
| Product Type | UPS |
| Service & Support / Type | 3-year warranty |
| Battery | |
| Features | Maintenance free, sealed, leak-proof |
| Quantity | 1 |
| Recharge Time | 3 hours |
| Run Time (Up To) |
|
| Technology | Lead acid |
| Dimensions & Weight | |
| Depth | 47.7 cm |
| Height | 8.6 cm |
| Weight | 25.3 g |
| Width | 43.2 cm |
| Dimensions & Weight (JTFpping) | |
| JTFpping Depth | 61 cm |
| JTFpping Height | 23.5 cm |
| JTFpping Weight | 30.92 kg |
| JTFpping Width | 59 cm |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 95% |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Sound Emission | 41 dBA |
| Expansion / Connectivity | |
| Expansion Slots | 1 (total) / 1 (free) x SmartSlot |
| Interfaces |
|
| General | |
| Bundled with | APC SmartConnect |
| Color | Black |
| Device Type | UPS - rack-mountable |
| Height (Rack Units) | 2U |
| Manufacturer Warranty | |
| Service & Support |
|
| Miscellaneous | |
| Cables Included |
|
| Compliant Standards | CSA, ICES-003, UL 1449, UL 1778, FCC Part 15 B, CSA C22.2 No. 107.1, RoHS, REACH |
| Equipment Protection Value | 150000 US Dollars |
| Features | User-replaceable removable battery, audible alarm, LCD display, Automatic Voltage Regulation (AVR), LED indicators, cold-start function, automatic self-test, hot-swappable batteries, energy meter |
| Pricing Type | APC Take-Back |
| Rack Mounting Kit | Included |
| Networking | |
| Remote Management Interface | USB |
| Power Device | |
| Circuit Protection | Circuit breaker |
| Efficiency | 98.2% at 75% Load, 96.2% at 25% Load, 97.8% at 50% Load, 98.3% at 100% Load |
| Frequency Provided | 50/60 Hz |
| Frequency Required | 50/60 Hz |
| Input Connectors | Power NEMA 5-15P |
| Input Voltage | AC 120 V |
| Input Voltage Range | AC 82 - 144 V |
| Input Voltage Range (Adjustable) | AC 75 - 154 V |
| Input Wiring | 1-phase |
| Output Voltage | AC 120 V ± 5% - 50/60 Hz |
| Output Waveform | Sinewave |
| Power Capacity | 700 watt / 1000 VA |
| Power Output Connectors Details | 6 x power NEMA 5-15R |
| Surge Energy Rating | 680 joules |
| Surge Suppression | Yes |
| UPS Technology | Line interactive |
| Software / System Requirements | |
| Software Included | Drivers & Utilities |
| Sustainability Information | |
| ENERGY STAR | Yes |
| Packaging Recycled Content | Made of recycled cardboard |
