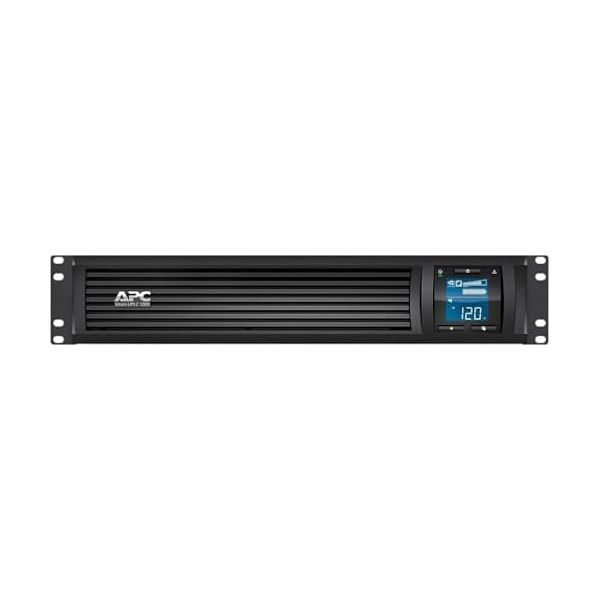

APC Smart-UPS C SMC1000-2UC
- Runtimes of any UPS will vary based on the amount of power required by your connected devices.:
- Yes, when adequate power is restored to the UPS and is within the operating voltage range of the UPS, it will revert to passing utility power to connected electronics.:
- The battery needs to be connected first. Please read the user manual for instructions on connecting the battery.:
- All new devices are on-boarded to the Standard plan with remote power monitoring, UPS and power events, automated distribution of firmware to UPSs with one-click remote installation and downloadable asset and renewal reports. Upgrade to Advanced plan any time to be able to remotely reboot connected IT equipment from the Cloud. The advanced plan is compatible with all SmartConnect devices and ideal for SMT and other Smart-UPS models with Controllable Outlet Groups. Use the outlet group naming feature to track how your essential and non-essential equipment is plugged in. Use SmartConnect Advanced plan to power-cycle the controllable Outlet group independently from the UPS Main Group, to reboot connected IT equipment without going on site.:
- PowerChute Serial Shutdown is available for download from se.com. It is a UPS management software enabling graceful system shutdown in the event of an extended power outage and provides energy management capabilities for desktops, servers, and workstations.:
| General Information | |
|---|---|
| Category | Power conditioning equipment |
| Description | APC Smart-UPS C SMC1000-2UC - UPS (rack-mountable) - AC 120 V - 600 Watt - 1000 VA - USB, serial - output connectors: 6 - 2U - black - with APC SmartConnect |
| Manufacturer | APC by Schneider Electric |
| MSRP | $1,075.00 |
| UNSPSC | 39121000 |
| Main Specifications | |
| Dimensions & Weight / Depth | 40.6 cm |
| Dimensions & Weight / Height | 8.6 cm |
| Dimensions & Weight / Weight | 20.52 kg |
| Dimensions & Weight / Width | 43.2 cm |
| Header / Brand | APC |
| Miscellaneous / Product Color | Black |
| Networking / Remote Management Interface |
|
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable |
| Power Device / Output Connector Qty | 6 |
| Power Device / Power Capacity (VA) | 1000 VA |
| Power Device / UPS Technology | Line interactive |
| Power Device / Voltage Required | AC 120 V |
| Product Type | UPS |
| Service & Support / Type | 2-year warranty |
| Battery | |
| Features | Maintenance free |
| Quantity | 1 |
| Recharge Time | 3 hours |
| Run Time (Up To) | 9.2 min at full load |
| Technology | Lead acid |
| Dimensions & Weight | |
| Depth | 40.6 cm |
| Height | 8.6 cm |
| Weight | 20.52 kg |
| Width | 43.2 cm |
| Dimensions & Weight (JTFpping) | |
| JTFpping Depth | 57 cm |
| JTFpping Height | 23.5 cm |
| JTFpping Weight | 20.71 kg |
| JTFpping Width | 53.5 cm |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 95% |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Sound Emission | 41 dBA |
| Expansion / Connectivity | |
| Expansion Slots | 1 (total) / 1 (free) x SmartSlot |
| Interfaces |
|
| General | |
| Bundled with | APC SmartConnect |
| Color | Black |
| Device Type | UPS - rack-mountable |
| Height (Rack Units) | 2U |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Cables Included |
|
| Compliant Standards | CSA, ICES-003, UL 1778, CSA C22.2 No. 107.1, RoHS, FCC Part 15 Class B |
| Equipment Protection Value | 150000 US Dollars |
| Features | User-replaceable removable battery, audible alarm, LCD display, Automatic Voltage Regulation (AVR), cold-start function, automatic shut down reset, automatic self-test, hot-swappable batteries |
| Rack Mounting Kit | Included |
| Networking | |
| Remote Management Interface | USB, serial |
| Power Device | |
| Circuit Protection | Circuit breaker |
| Frequency Provided | 50/60 Hz |
| Frequency Required | 50/60 Hz ± 3Hz |
| Input Connectors | Power NEMA 5-15P |
| Input Voltage | AC 120 V |
| Input Voltage Range | AC 93 - 130 V |
| Input Voltage Range (Adjustable) | AC 85 - 136 V |
| Input Wiring | 1-phase |
| Output Voltage | AC 120 V ± 5% - 50/60 Hz |
| Output Waveform | Sinewave |
| Power Capacity | 600 watt / 1000 VA |
| Power Output Connectors Details | 6 x power NEMA 5-15R - 120 V |
| Surge Energy Rating | 680 joules |
| Surge Suppression | Yes |
| UPS Technology | Line interactive |
| Sustainability Information | |
| ENERGY STAR | Yes |
| Packaging Recycled Content | Made of recycled cardboard |
