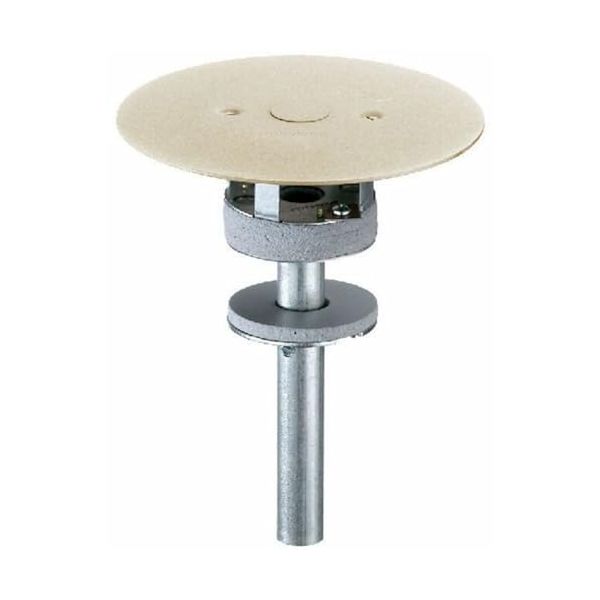

PT7FFSDI Aluminum 1 Piece Unit Fire-Rated Poke-Through Single Service Furniture Feed Pedestal
Hubbell flush furniture feed service fitting and through-floor fitting (single-service). Conduit tubes: 3/4" EMT. Listings: UL listed, CSA certified. Note: on one-piece units, conduit insert cover is not removable from above the floor. PT71SD floor fitting. Painted aluminum flange.Complies with UL 514A requirements for scrub water protection
Fire Rating: for use in 1, 1.5, 2, 3 or 4 hour rated unprotected reinforced concrete floors or in 1, 2 or 3 hour rated floors employing Steel floor units and concrete topping (D900 series design)
Floor thickness range 2-1/4-inches to 7-inches
Minimum of 2 feet on centers and not more than one unit per 65 sq. ft. of floor area in each span
Cored hole: 3-inches (76.2) diameter
- brand_name: Hubbell Wiring Systems
- upc: 783585494289
- number_of_items: 1
- model_number: PT7FFSDI
- manufacturer_part_number: PT7FFSDI
- included_components: Cable
- manufacturer: Hubbell
- unit_count: 1 Count
- asin: B00IS2K4JY
- color: Ivory
- item_weight: 1.95 Pounds
Write Your Own Review
Quick Shipping
Usually ships in 1 business day
Product Overview
Complies with UL 514A requirements for scrub water protection
Fire Rating: for use in 1, 1.5, 2, 3 or 4 hour rated unprotected reinforced concrete floors or in 1, 2 or 3 hour rated floors employing Steel floor units and concrete topping (D900 series design)
Floor thickness range 2-1/4-inches to 7-inches
Minimum of 2 feet on centers and not more than one unit per 65 sq. ft. of floor area in each span
Cored hole: 3-inches (76.2) diameter
