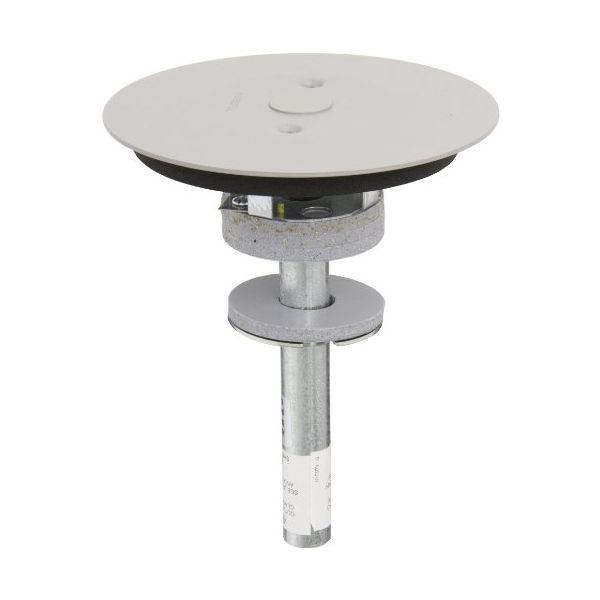

Hubbell Wiring Systems PT7FFSDGY Aluminum 1 Piece Unit Fire-Rated Poke-Through Single Service Furniture Feed Pedestal

Hubbell flush furniture feed service fitting and through-floor fitting (single-service). Conduit tubes: 3/4" EMT. Listings: UL listed, CSA certified. Note: on one-piece units, conduit insert cover is not removable from above the floor. Housing: flush aluminum service fitting. PT71SD floor fitting. Painted aluminum flange.Complies with UL 514A requirements for scrub water protection Fire Rating: for use in 1, 1.5, 2, 3 or 4 hour rated unprotected reinforced concrete floors or in 1, 2 or 3 hour rated floors employing Steel floor units and concrete topping (D900 series design) Floor thickness range 2-1/4-inches to 7-inches Minimum of 2 feet on centers and not more than one unit per 65 sq. ft. of floor area in each span Cored Hole 3-inches (76.2) diameter
