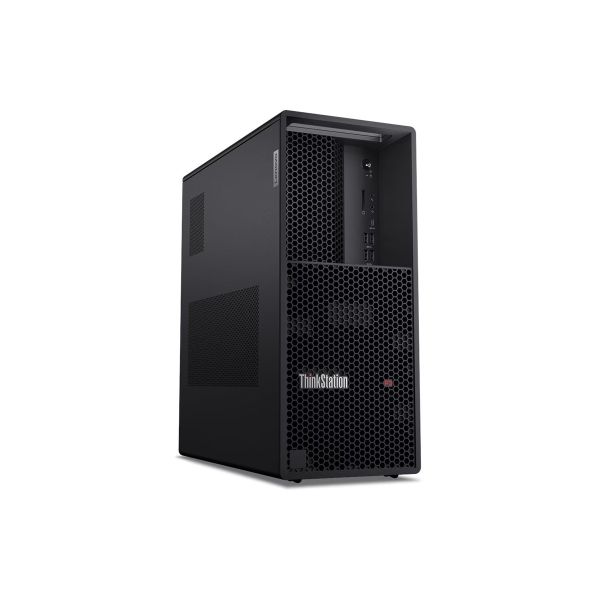

Lenovo ThinkStation P3 Gen 2 30HT

Be the first to review this product

Availability: In stock

SKU

30HT004RUS

UPC Code

198158137034

Compare with Similar items

Request a Quote

Questions before you move forward?

Chat with a JTF expert in Springfield, VA.

Click and connect instantly.

secure transaction

Details

The Lenovo ThinkStation P3 Gen 2 workstation excels in performance and reliability, catering to professionals who require robust computing power. With a powerful Intel Core Ultra 5 processor featuring 14 cores and a maximum turbo speed of 5.2 GHz, demanding applications run smoothly, making this workstation ideal for graphic design, data analysis, and software development tasks. The integrated Realtek ALC623-CG audio codec ensures high-definition audio output, enhancing multimedia experiences while the storage capabilities feature a 1 TB SSD with TCG Opal Encryption, providing both speed and security for sensitive data. This workstation is built to last with a durable tower chassis compliant with MIL-STD 810H and FIPS 140-2 standards, ensuring it withstands rigorous working environments while maintaining security features for data protection. Connectivity is well catered for with multiple ports, including USB-C, HDMI, and multiple USB options, allowing seamless integration of peripherals. The Lenovo Calliope Mouse and Keyboard enhance user interaction with comfortable and responsive designs. Moreover, with 32 GB of DDR5 RAM and expandable slots, users can enhance memory capacity as needed, making the Lenovo ThinkStation P3 Gen 2 a versatile choice for any professional setting. Count on this workstation for efficiency, performance, and security while tackling complex tasks and projects.

Lenovo ThinkStation P3 Tower Workstation: Workstation-grade computing power at a desktop price | Powered by powerful processors | Choice of professional discrete graphics | Advanced cooling for extra power and performance | Reliable, easy to deploy, and versatile, supporting up to 12 displays | ISV-certified, ideal for designers, engineers, and students

Specifications

General Information
Category	Desktop computers
Description	Lenovo ThinkStation P3 Gen 2 30HT - AI Workstation - tower 1 x Core Ultra 5 235 / up to 5 GHz - vPro Enterprise - RAM 16 GB - SSD 512 GB - TCG Opal Encryption, NVMe, Performance - DVD-Writer - Intel Graphics - Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6), Bluetooth 5.4, IEEE 802.11be (Wi-Fi 7) - Win 11 Pro - monitor: none - keyboard: US - Lenovo TopSeller
Manufacturer	Lenovo
MSRP	$2,109.00
UNSPSC	43211507
Main Specifications
Chassis / Form Factor	Tower
Dimensions & Weight / Depth	37 cm
Dimensions & Weight / Height	41.5 cm
Dimensions & Weight / Weight	14.38 kg
Dimensions & Weight / Width	18 cm
Display / Type	None.
Hard Drive / Capacity	512 GB
Hard Drive / Interface	PCI Express 5.0 x4
Hard Drive / Interface Type	PCI Express 5.0 x4
Header / Brand	Lenovo
Header / Country Kits	United States
Header / Localization	English
Mainboard / Chipset Type	Intel W880
Mainboard / Processor Socket	FCLGA1851 Socket
Miscellaneous / Product Color	Black
Networking / Data Link Protocol	Bluetooth 5.4 Ethernet Fast Ethernet Gigabit Ethernet IEEE 802.11a IEEE 802.11ac IEEE 802.11ax (Wi-Fi 6) IEEE 802.11b IEEE 802.11be (Wi-Fi 7) IEEE 802.11g IEEE 802.11n
Networking / Wireless LAN Supported	Yes
Networking / Wireless Protocol	802.11a/b/g/n/ac/ax/be Bluetooth 5.4
Optical Storage / Drive Type	DVD-Writer
Optical Storage / Type	DVD±RW
OS Provided / Type	Windows 11 Pro
Packaged Quantity	1
Processor / Clock Speed	3.4 GHz
Processor / Generation	Series 2
Processor / Manufacturer	Intel
Processor / Number of Cores	14-core
Processor / Processor Number	235
Processor / Type	Core Ultra 5
RAM / Data Integrity Check	Non-ECC
RAM / Form Factor	DIMM 288-pin
RAM / Technology	DDR5 SDRAM
Service & Support / Type	3-year warranty
System / Hard Drive Capacity	512 GB
System / Platform Technology	Intel vPro Enterprise
System / Type	Workstation
Video Output / Graphics Processor	Intel Graphics
Audio Output
Compliant Standards	High Definition Audio
Cache Memory
Cache Per Processor	24 MB
Installed Size	24 MB
Card Reader
Supported Flash Memory Cards	SD Memory Card
Type	Card reader
Dimensions & Weight
Depth	37 cm
Height	41.5 cm
Weight	14.38 kg
Width	18 cm
Environmental Parameters
Humidity Range Operating	20 - 80%
Max Operating Temperature	35 °C
Min Operating Temperature	10 °C
Expansion / Connectivity
Bays	1 (total) / 1 (free) x 2.5" / 3.5" shared
Interfaces	2 x USB 3.2 Gen 1 (2 in front) 2 x USB 3.2 Gen 2 (2 in front) 1 x USB-C 3.2 Gen 2x2 (1 in front) 1 x headphones/microphone (1 in front) 1 x microphone (1 in front) 1 x USB 3.2 Gen 1 (1 rear) 1 x USB 3.2 Gen 1 (1 rear) (supports SmartPower On) 1 x HDMI 2 x DisplayPort 1.4 1 x LAN (Gigabit Ethernet) 1 x audio line-out 2 x USB 2.0 1 x DisplayPort 1.2
Slots	1 (total) / 1 (free) x PCIe 5.0 x16 - full-length, full-height, double-width (75W max power) 2 (total) / 2 (free) x PCIe 3.0 x1 - half-length, full-height (open ended, 25W max power) 1 (total) / 1 (free) x PCIe 4.0 x16 - half-length, full-height (x4 mode, 25W max power) 3 (total) / 2 (free) x M.2 Card (for SSD) 1 (total) / 0 (free) x M.2 Card (for WLAN)
General
AI Level	AI Workstation
Built-in Devices	Speaker
Embedded Security	Discrete Trusted Platform Module (TPM 2.0) Security Chip
Localization	Language: English / region: United States
Platform Technology	Intel vPro Enterprise
Product Form Factor	Tower
Type	Workstation
Graphics Controller
Graphics Processor	Intel Graphics shared video memory (UMA) - up to 6 TOPS
Max Monitors Supported	4
Video Interfaces	HDMI, DisplayPort
Hard Drive
Capacity	1 x 512 GB
Features	TCG Opal Encryption, NVM Express (NVMe), Performance
Interface Type	PCI Express 5.0 x4
Type	SSD - M.2 2280
Input Device
Type	Mouse, keyboard
Keyboard
Interface	USB
Keyboard Name	Lenovo Traditional Keyboard
Localization & Layout	US
Manufacturer Warranty
Service & Support	Limited warranty - 3 years - on-site
Miscellaneous
Compliant Standards	RoHS, FIPS 140-2, Energy-Related Products (ErP) Lot 3, TCG Certified
Manufacturer Selling Program	Lenovo TopSeller
Security Slot Type	Kensington security slot
Theft/Intrusion Protection	Security lock slot (cable lock sold separately), padlock loop
Monitor
Monitor Type	None.
Mouse
Interface	USB
Mouse Name	Lenovo Calliope Mouse
Networking
Data Link Protocol	Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), Bluetooth 5.4, IEEE 802.11be (Wi-Fi 7)
Ethernet Controller	Intel I219-LM
Features	Wake on LAN (WoL), dual stream (2x2), Intel Active Management Technology (AMT) 16
Interface (Bus) Type	M.2 Card
Wireless LAN Supported	Yes
Wireless NIC	Intel WI-FI 7 BE200
Neural Processor Unit (NPU)
AI Datatype Support on NPU	INT8
AI Software Frameworks Supported by NPU	DirectML, OpenVINO, WebNN, WindowsML, ONNX RT
Neural Processor Unit (NPU)	Intel AI Boost
NPU Performance Up To (TOPS)	13 TOPS
Sparsity Support	Yes
Total Processor Performance Up To (TOPS)	27 TOPS
Windows Studio Effects Support	Yes
Operating System / Software
OS Provided	Windows 11 Pro English
Optical Storage
Type	DVD±RW DVD-Writer - SATA
Power
80 PLUS Certification	80 PLUS Platinum
Device Type	Power supply
Efficiency	92%
Power Provided	750 Watt
Voltage Required	AC 100-240 V (50/60 Hz)
Processor / Chipset
Chipset Type	Intel W880
Clock Speed	3.4 GHz (P-core) / 2.9 GHz (E-core)
CPU	Intel Core Ultra 5 (Series 2) 235
CPU Qty	1
CPU Socket	FCLGA1851 Socket
Max CPU Qty	1
Max Turbo Speed	5 GHz (P-core) / 4.4 GHz (E-core)
Number of Cores	14-core
Processor Main Features	Intel Smart Cache
RAM
Configuration Features	1 x 16 GB
Effective Memory Speed	5600 MT/s
Features	Dual channel memory architecture
Form Factor	DIMM 288-pin
Installed Size	16 GB (installed) / 256 GB (max)
Rated Memory Speed	5600 MT/s
Slots	4 (total) / 3 (empty)
Technology	DDR5 SDRAM - non-ECC
Storage Controller
Controller Interface Type	SATA 6Gb/s
RAID Level	RAID 0, RAID 1, RAID 5, RAID 10
Type	1 x SATA
Storage Controller (2nd)
Controller Interface Type	PCI Express (NVMe)
RAID Level	RAID 0, RAID 1, RAID 5
Type	1 x NVMe
Sustainability Information
Carbon Footprint	957 kg carbon emissions
PAIA Version	1.4.7
TCO Certified	TCO Certified, generation 10, for desktops
Total CF/unit Standard Deviation (kg CO2e)	317
