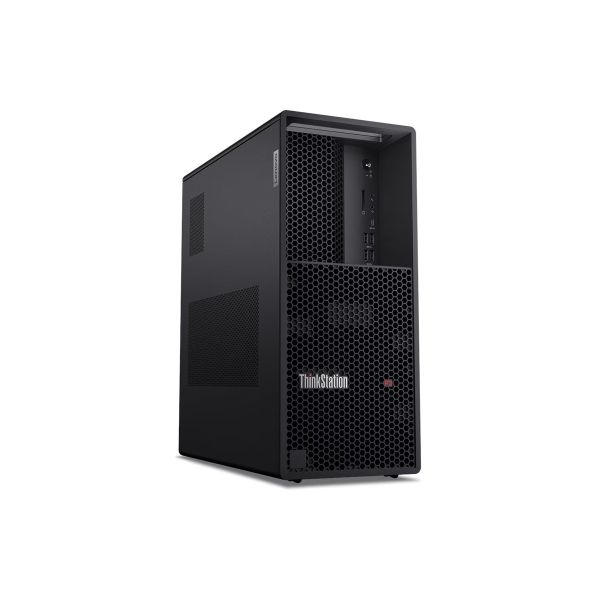

Lenovo ThinkStation P3 Gen 2 30HT

Availability: Out of stock
SKU
30HT004XUS
Questions before you move forward?

Chat with a JTF expert in Springfield, VA.

Click and connect instantly.

secure transactionsecure transaction
The Lenovo ThinkStation P3 Gen 2 workstation excels in performance and reliability, catering to professionals who require robust computing power. With a powerful Intel Core Ultra 5 processor featuring 14 cores and a maximum turbo speed of 5.2 GHz, demanding applications run smoothly, making this workstation ideal for graphic design, data analysis, and software development tasks. The integrated Realtek ALC623-CG audio codec ensures high-definition audio output, enhancing multimedia experiences while the storage capabilities feature a 1 TB SSD with TCG Opal Encryption, providing both speed and security for sensitive data. This workstation is built to last with a durable tower chassis compliant with MIL-STD 810H and FIPS 140-2 standards, ensuring it withstands rigorous working environments while maintaining security features for data protection. Connectivity is well catered for with multiple ports, including USB-C, HDMI, and multiple USB options, allowing seamless integration of peripherals. The Lenovo Calliope Mouse and Keyboard enhance user interaction with comfortable and responsive designs. Moreover, with 32 GB of DDR5 RAM and expandable slots, users can enhance memory capacity as needed, making the Lenovo ThinkStation P3 Gen 2 a versatile choice for any professional setting. Count on this workstation for efficiency, performance, and security while tackling complex tasks and projects.

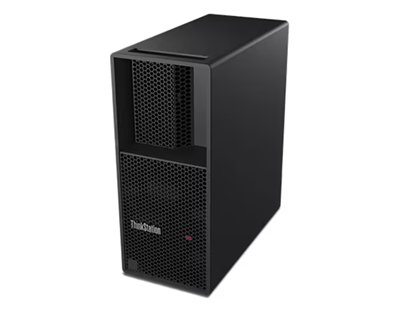

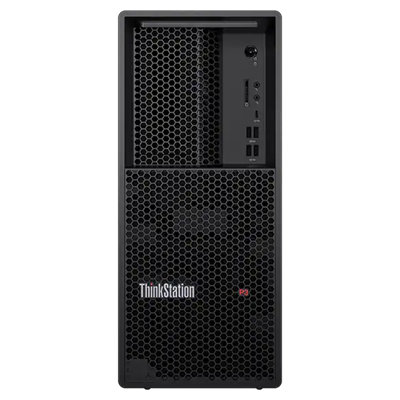

Product image 30HT004XUS
Product image 30HT004XUS
Product image 30HT004XUS
Product image 30HT004XUS
Product image 30HT004XUS
Product image 30HT004XUS
  • Lenovo ThinkStation P3 Tower Workstation: Workstation-grade computing power at a desktop price | Powered by powerful processors | Choice of professional discrete graphics | Advanced cooling for extra power and performance | Reliable, easy to deploy, and versatile, supporting up to 12 displays | ISV-certified, ideal for designers, engineers, and students
General Information
CategoryDesktop computers
DescriptionLenovo ThinkStation P3 Gen 2 30HT - AI Workstation - tower 1 x Core Ultra 5 235 / up to 5 GHz - vPro Enterprise - RAM 32 GB - SSD 512 GB - TCG Opal Encryption, NVMe, Performance - DVD-Writer - Intel Graphics - Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6), Bluetooth 5.4, IEEE 802.11be (Wi-Fi 7) - Win 11 Pro - monitor: none - keyboard: English - Lenovo TopSeller
ManufacturerLenovo
MSRP$2,489.00
UNSPSC43211507
Main Specifications
Chassis / Form FactorTower
Dimensions & Weight / Depth37 cm
Dimensions & Weight / Height41.5 cm
Dimensions & Weight / Weight14.38 kg
Dimensions & Weight / Width18 cm
Display / TypeNone.
Hard Drive / Capacity512 GB
Hard Drive / InterfacePCI Express 5.0 x4
Hard Drive / Interface TypePCI Express 5.0 x4
Header / BrandLenovo
Header / Country KitsUnited States
Header / LocalizationEnglish
Mainboard / Chipset TypeIntel W880
Mainboard / Processor SocketFCLGA1851 Socket
Networking / Data Link Protocol
  • Bluetooth 5.4
  • Ethernet
  • Fast Ethernet
  • Gigabit Ethernet
  • IEEE 802.11a
  • IEEE 802.11ac
  • IEEE 802.11ax (Wi-Fi 6)
  • IEEE 802.11b
  • IEEE 802.11be (Wi-Fi 7)
  • IEEE 802.11g
  • IEEE 802.11n
Networking / Wireless LAN SupportedYes
Networking / Wireless Protocol
  • 802.11a/b/g/n/ac/ax/be
  • Bluetooth 5.4
Optical Storage / Drive TypeDVD-Writer
Optical Storage / TypeDVD±RW
OS Provided / TypeWindows 11 Pro
Packaged Quantity1
Processor / GenerationSeries 2
Processor / ManufacturerIntel
Processor / Number of Cores14-core
Processor / Processor Number235
Processor / TypeCore Ultra 5
RAM / Data Integrity CheckNon-ECC
RAM / Form FactorDIMM 288-pin
RAM / TechnologyDDR5 SDRAM
System / Hard Drive Capacity512 GB
System / Platform TechnologyIntel vPro Enterprise
System / TypeWorkstation
Video Output / Graphics ProcessorIntel Graphics
Audio Output
Compliant StandardsHigh Definition Audio
Cache Memory
Cache Per Processor24 MB
Installed Size24 MB
Card Reader
Supported Flash Memory CardsSD Memory Card
TypeCard reader
Dimensions & Weight
Depth37 cm
Height41.5 cm
Weight14.38 kg
Width18 cm
Expansion / Connectivity
Interfaces
  • 1 x USB-C 3.2 Gen 2x2 (1 front) (data only)
  • 3 x USB 3.2 Gen 1 (2 front, 1 rear)
  • 2 x USB 3.2 Gen 2 (2 front)
  • 1 x headphones/microphone (1 front)
  • 1 x microphone (1 front)
  • 2 x USB 2.0 (2 rear)
  • 1 x HDMI (1 rear) (TMDS compatible)
  • 2 x DisplayPort 1.4 (2 rear)
  • 1 x LAN (Gigabit Ethernet) (1 rear)
  • 1 x audio line-out (1 rear)
  • 1 x DisplayPort (1 rear) (Flex I/O module)
  • 1 x USB 3.2 Gen 1 (1 rear) (supports SmartPower On)
General
AI LevelAI Workstation
Embedded SecurityDiscrete Trusted Platform Module (TPM 2.0) Security Chip
LocalizationLanguage: English / region: United States
Platform TechnologyIntel vPro Enterprise
Product Form FactorTower
TypeWorkstation
Graphics Controller
Graphics ProcessorIntel Graphics shared video memory (UMA) - up to 6 TOPS
Hard Drive
Capacity1 x 512 GB
FeaturesTCG Opal Encryption, NVM Express (NVMe), Performance
Interface TypePCI Express 5.0 x4
TypeSSD - M.2 2280
Input Device
TypeMouse, keyboard
Keyboard
InterfaceUSB
Keyboard NameLenovo Traditional Keyboard
Localization & LayoutEnglish
Miscellaneous
Compliant StandardsFIPS 140-2, TCG Certified, MIL-STD 810H
Manufacturer Selling ProgramLenovo TopSeller
Security Slot TypeKensington security slot
Theft/Intrusion ProtectionSecurity lock slot (cable lock sold separately), padlock loop
Monitor
Monitor TypeNone.
Mouse
InterfaceUSB
Mouse NameLenovo Calliope Mouse
Networking
Data Link ProtocolEthernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), Bluetooth 5.4, IEEE 802.11be (Wi-Fi 7)
Ethernet ControllerIntel I219-LM
FeaturesDual stream (2x2), Intel Active Management Technology (AMT) 16
Wireless LAN SupportedYes
Wireless NICIntel WI-FI 7 BE200
Neural Processor Unit (NPU)
AI Datatype Support on NPUINT8
AI Software Frameworks Supported by NPUDirectML, OpenVINO, WebNN, WindowsML, ONNX RT
Neural Processor Unit (NPU)Intel AI Boost
NPU Performance Up To (TOPS)13 TOPS
Sparsity SupportYes
Total Processor Performance Up To (TOPS)27 TOPS
Windows Studio Effects SupportYes
Operating System / Software
OS ProvidedWindows 11 Pro English
Optical Storage
TypeDVD±RW DVD-Writer - SATA
Power
80 PLUS Certification80 PLUS Platinum
Device TypePower supply
Power Provided750 Watt
Voltage RequiredAC 100-240 V (50/60 Hz)
Processor / Chipset
Chipset TypeIntel W880
CPUIntel Core Ultra 5 (Series 2) 235
CPU Qty1
CPU SocketFCLGA1851 Socket
Max CPU Qty1
Max Turbo Speed5 GHz
Number of Cores14-core
RAM
Configuration Features2 x 16 GB
Effective Memory Speed5600 MT/s
FeaturesDual channel memory architecture
Form FactorDIMM 288-pin
Installed Size32 GB (installed) / 256 GB (max)
Slots4 (total) / 2 (empty)
TechnologyDDR5 SDRAM - non-ECC
Storage Controller
TypeNVMe
Storage Controller (2nd)
TypeSATA
Sustainability Information
TCO CertifiedTCO Certified, generation 10, for desktops
