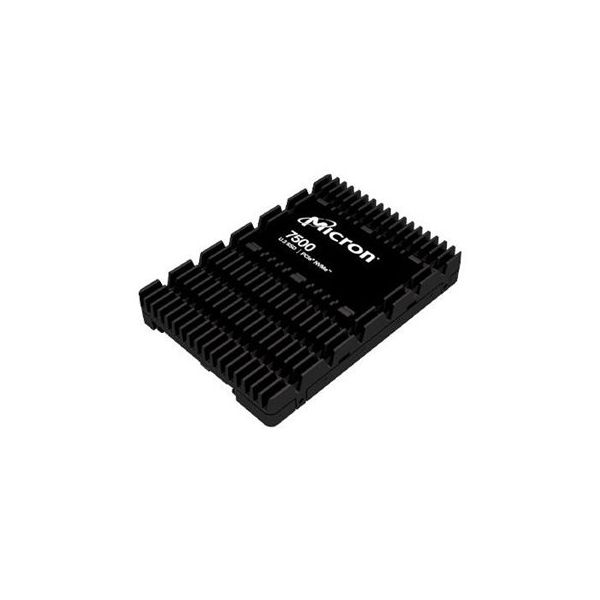

Micron 7500 PRO - SSD
The Lenovo Micron 7500 PRO is a solid state drive designed for high-performance storage solutions. With a capacity of 3.84 TB, it caters to demanding applications while delivering an internal data rate of up to 6800 MBps for read operations and 5300 MBps for write operations. The drive operates efficiently in a wide range of temperatures, from 0°C to 70°C during operation and can withstand storage temperatures between -40°C and 85°C, ensuring reliability in various environments. Equipped with features such as adaptive thermal monitoring, end-to-end data protection, and advanced ECC Engine, this SSD is engineered for durability. The use of 232-layer TLC NAND technology enhances performance and reduces latency, achieving an average latency of just 15 µs. Additionally, support for secure execution environments and hardware encryption ensures that sensitive data remains protected, making the Lenovo Micron 7500 PRO a choice for storage needs.
| General Information | |
|---|---|
| Category | Solid state drive SSD |
| Description | Micron 7500 PRO - SSD - Read Intensive - encrypted - 3.84 TB - hot-swap - 2.5" - U.3 PCIe 4.0 x4 (NVMe) - 3072-bit RSA - TCG Opal Encryption 2.01, Self-Encrypting Drive (SED) - for P/N: 7S0A007FWW, 7S0A007HWW, 7S0A007KWW, 7S0A007MWW, 7S0A007PWW |
| Manufacturer | Lenovo |
| MSRP | $9,799.00 |
| UNSPSC | 43201830 |
| Main Specifications | |
| Dimensions & Weight / Depth | 100 mm |
| Dimensions & Weight / Height | 15 mm |
| Dimensions & Weight / Weight | 200 g |
| Dimensions & Weight / Width | 70 mm |
| Hard Drive / Capacity | 3.84 TB |
| Hard Drive / Form Factor | 2.5" |
| Hard Drive / Hard Drive Type | Hot-swap hard drive |
| Hard Drive / Interface | U.3 PCIe 4.0 x4 (NVMe) |
| Hard Drive / Interface | U.3 PCIe 4.0 x4 (NVMe) |
| Header / Brand | Micron |
| Packaged Quantity | 1 |
| Service & Support / Type | 1-year warranty |
| Storage / Type | Solid state drive |
| Compatibility Information | |
| Designed For | P/N: 7S0A007FWW, 7S0A007HWW, 7S0A007KWW, 7S0A007MWW, 7S0A007PWW |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Max Operating Temperature | 70 °C |
| Max Storage Temperature | 85 °C |
| Min Operating Temperature | 0 °C |
| Min Storage Temperature | -40 °C |
| Shock Tolerance (non-operating) | 1500 g @ 0.5 ms |
| Vibration Tolerance (non-operating) | 9.1 gRMS @ 5-800 Hz |
| Expansion & Connectivity | |
| Compatible Bay | 2.5" |
| Interfaces | 1 x U.3 PCIe 4.0 x4 (NVMe) |
| General | |
| Capacity | 3.84 TB |
| Depth | 100 mm |
| Device Type | Solid state drive - hot-swap |
| Encryption Algorithm | 3072-bit RSA |
| Features | 232-layer TLC NAND technology, Advanced ECC Engine, End-to-end data protection, advanced power loss protection architecture, Adaptive thermal monitoring, Secure Execution Environment, Asymmetric Roots of Trust, Strong Asymmetric Key Support, RSA Delegation Key Support, Secure Boot, Key-Based Firmware Update, Key-Based Privileged Access, S.M.A.R.T. |
| Form Factor | 2.5" |
| Hardware Encryption | Yes |
| Height | 15 mm |
| Interface | U.3 PCIe 4.0 x4 (NVMe) |
| NAND Flash Memory Type | 3D triple-level cell (TLC) |
| Weight | 200 g |
| Width | 70 mm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - replacement - 1 year |
| Miscellaneous | |
| Compliant Standards | EN55024 Class B, EN55032 Class B, RoHS, FCC, 47 CFR Part 15 Class B, UL, EN 60950-1 Second Edition, IEC 60950-1:2005 Second Edition, EN 60950-1:2006+A1:2010+A11:2009 + A12:2011 + A2:2013, BSMI CNS 13438 Class B, BSMI CNS 15663, RCM, AS/NZS CISPR 32 Class B, KC, RRL, KCC KN32 Class B, KCC KN35 Class B, WEEE 2012/19/EC, TUV, IEC60950/EN60950, VCCI, VCCI 2015.04 Class B, IC, ICES-003 Class B, Morocco, UkrSEPRO, UKCA, SI 2016/1091 Class B, SI 2012/3032 RoHS |
| Performance | |
| 4KB Random Read | 1100000 IOPS |
| 4KB Random Write | 180000 IOPS |
| Average Latency | 15 µs |
| Drive Class | Read Intensive |
| Drive Writes Per Day (DWPD) | 1 |
| Internal Data Rate | 6800 MBps (read) / 5300 MBps (write) |
| SSD Endurance | 7008 TB |
| Power | |
| Power Consumption |
|
| Reliability | |
| MTBF | 2,000,000 hours |
| Non-Recoverable Errors | 1 per 10^17 |
