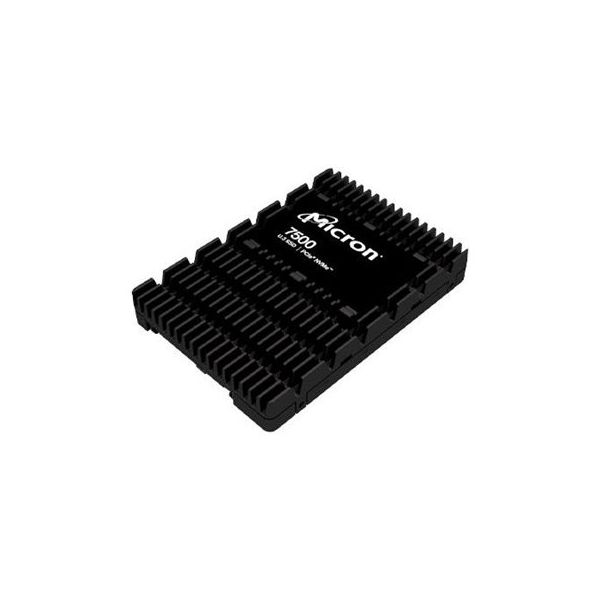

Micron 7500 MAX - SSD
The Lenovo Micron 7500 MAX is a solid-state drive designed for high-performance data storage. With a capacity of 3.2 TB and an internal data rate of 6800 MBps, this drive ensures smooth and fast data access for various applications. The Adaptive Thermal Monitoring feature helps manage heat, while End-to-End Data Protection and Advanced ECC Engine work together to safeguard data integrity. The drive is built to withstand demanding environments. Operating temperatures range from 0°C to 70°C, and it can tolerate extreme storage conditions from -40°C to 85°C. With an endurance rating of 17520 TB and incorporating security features like Secure Boot and Self-Encrypting Drive (SED), the Lenovo Micron 7500 MAX is suitable for enterprises that prioritize performance and data security.
| General Information | |
|---|---|
| Category | Hard drives |
| Description | Micron 7500 MAX - SSD - Mixed Use - encrypted - 3.2 TB - hot-swap - 2.5" - U.3 PCIe 4.0 x4 (NVMe) - 3072-bit RSA - TCG Opal Encryption 2.01, Self-Encrypting Drive (SED) - for P/N: 7S0A007FWW, 7S0A007HWW, 7S0A007KWW, 7S0A007MWW, 7S0A007PWW |
| Manufacturer | Lenovo |
| MSRP | $9,799.00 |
| UNSPSC | 43201803 |
| Main Specifications | |
| Dimensions & Weight / Depth | 100 mm |
| Dimensions & Weight / Height | 15 mm |
| Dimensions & Weight / Weight | 200 g |
| Dimensions & Weight / Width | 70 mm |
| Hard Drive / Capacity | 3.2 TB |
| Hard Drive / Form Factor | 2.5" |
| Hard Drive / Hard Drive Type | Hot-swap hard drive |
| Hard Drive / Interface | U.3 PCIe 4.0 x4 (NVMe) |
| Hard Drive / Interface | U.3 PCIe 4.0 x4 (NVMe) |
| Header / Brand | Micron |
| Packaged Quantity | 1 |
| Service & Support / Type | 1-year warranty |
| Storage / Type | Solid state drive |
| Compatibility Information | |
| Designed For | P/N: 7S0A007FWW, 7S0A007HWW, 7S0A007KWW, 7S0A007MWW, 7S0A007PWW |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Max Operating Temperature | 70 °C |
| Max Storage Temperature | 85 °C |
| Min Operating Temperature | 0 °C |
| Min Storage Temperature | -40 °C |
| Shock Tolerance (non-operating) | 1500 g @ 0.5 ms |
| Vibration Tolerance (non-operating) | 9.1 gRMS @ 5-800 Hz |
| Expansion & Connectivity | |
| Compatible Bay | 2.5" |
| Interfaces | 1 x U.3 PCIe 4.0 x4 (NVMe) |
| General | |
| Capacity | 3.2 TB |
| Depth | 100 mm |
| Device Type | Solid state drive - hot-swap |
| Encryption Algorithm | 3072-bit RSA |
| Features | 232-layer TLC NAND technology, Advanced ECC Engine, End-to-end data protection, advanced power loss protection architecture, Adaptive thermal monitoring, Secure Execution Environment, Asymmetric Roots of Trust, Strong Asymmetric Key Support, RSA Delegation Key Support, Secure Boot, Key-Based Firmware Update, Key-Based Privileged Access, S.M.A.R.T. |
| Form Factor | 2.5" |
| Hardware Encryption | Yes |
| Height | 15 mm |
| Interface | U.3 PCIe 4.0 x4 (NVMe) |
| NAND Flash Memory Type | 3D triple-level cell (TLC) |
| Weight | 200 g |
| Width | 70 mm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - replacement - 1 year |
| Miscellaneous | |
| Compliant Standards | EN55024 Class B, EN 55032, FCC CFR 47 Part 15 Class B, UL/cUL, UL-60950-1 2nd Edition, IEC 60950-1:2005 Second Edition, EN 60950-1:2006+A1:2010+A11:2009 + A12:2011 + A2:2013, CNS 13438 Class B, CNS 15663, AS/NZS CISPR32 Class B, RCM, KN32 Class B, KN35 Class B, WEEE 2012/19/EC, IEC60950/EN60950, VCCI Class B, ICES-003 Class B, UkrSEPRO, Morocco, EN55032 Class B, RoHS, UKCA, SI 2016/1091 Class B, SI 2012/3032 RoHS, IC, VCCI 2015.04 Class B |
| Performance | |
| 4KB Random Read | 1100000 IOPS |
| 4KB Random Write | 390000 IOPS |
| Average Latency | 15 µs |
| Drive Class | Mixed Use |
| Drive Writes Per Day (DWPD) | 3 |
| Internal Data Rate | 6800 MBps (read) / 5300 MBps (write) |
| SSD Endurance | 17520 TB |
| Power | |
| Power Consumption |
|
| Reliability | |
| MTBF | 2,000,000 hours |
| Non-Recoverable Errors | 1 per 10^17 |
