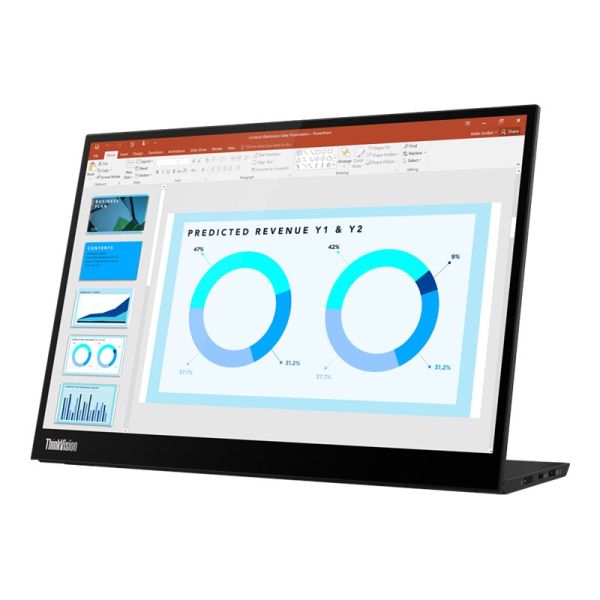

Lenovo ThinkVision M14d
- Lenovo ThinkVison M14d 14 inch Monitor: 2.2K (2240x1400) resolution | 16:10 aspect ratio | Natural Low Blue Light
| General Information | |
|---|---|
| Category | Monitors |
| Description | Lenovo ThinkVision M14d - LED monitor - 14" - portable - 2240 x 1400 2.2K @ 60 Hz - IPS - 375 cd/m² - 1500:1 - 6 ms - 2xUSB-C - raven black |
| Manufacturer | Lenovo |
| MSRP | $327.00 |
| UNSPSC | 43211901 |
| Main Specifications | |
| Dimensions & Weight / Depth | 10.64 cm |
| Dimensions & Weight / Height | 22.75 cm |
| Dimensions & Weight / Weight | 600 g |
| Dimensions & Weight / Width | 31.44 cm |
| Display / Diagonal Size | 14 in |
| Display / Diagonal Size (metric) | 35.6 cm |
| Display / Interface | USB-C |
| Display / Native Resolution | 2240 x 1400 |
| Display / Pixel Pitch | 0.135 mm |
| Display / Type | LED-backlit LCD monitor |
| Header / Brand | Lenovo |
| Image Brightness | 375 cd/m² |
| Miscellaneous / Compliant Standards |
|
| Miscellaneous / Product Color | Black |
| Packaged Quantity | 1 |
| Service & Support / Type | 3-year warranty |
| System Requirements / OS Required |
|
| Connectivity | |
| Interfaces | 2 x USB-C 3.2 Gen 1/DisplayPort 1.2 Alt Mode |
| Dimensions & Weight | |
| Dimensions & Weight Details |
|
| Dimensions & Weight (JTFpping) | |
| JTFpping Depth | 27.7 cm |
| JTFpping Height | 7.6 cm |
| JTFpping Weight | 1.8 kg |
| JTFpping Width | 38.4 cm |
| General | |
| Aspect Ratio | 16:10 |
| Backlight Technology | WLED |
| Brightness | 375 cd/m² |
| Built-in Devices | USB 2.0/USB-C hub |
| Color | Raven black |
| Color Gamut | 105% sRGB |
| Color Support | 16.7 million colors |
| Contrast Ratio | 1500:1 / 3000000:1 (dynamic) |
| Diagonal Size | 14" |
| Dimensions (WxDxH) | 31.44 cm x 10.64 cm x 22.75 cm - with stand |
| Display Type | LED-backlit LCD monitor / TFT active matrix |
| Features | 8-bit gamma |
| Horizontal Viewing Angle | 178 |
| Native Resolution | 2.2K 2240 x 1400 at 60 Hz |
| Panel Type | IPS |
| Pixel Pitch | 0.135 mm |
| Response Time | 6 ms (extreme), 8 ms (normal) |
| Screen Coating | Anti-glare |
| Vertical Viewing Angle | 178 |
| Weight | 600 g |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Mechanical | |
| Display Position Adjustments | Height, tilt |
| Height Adjustment | 11 mm |
| Tilt Angle | -5/+95 |
| VESA Mounting Interface | 100 x 100 mm |
| Miscellaneous | |
| Cables Included | 1 x USB-C cable - 1 m |
| Compliant Standards | CCC, RoHS 2011/65/EU, China Energy standard Tier 1, TUV Eyesafe Display Certification, TUV Rheinland Flicker Free Certification, TUV Rheinland Low Blue Light (Hardware Solution), TUV Rheinland Low Blue Light Certification |
| Features | Security lock slot (cable lock sold separately) |
| Security Slot Type | Kensington security slot |
| Power | |
| Input Voltage | (50/60 Hz) |
| Power Consumption (Max) | 7.5 watt |
| Power Consumption (Off Mode) | 0.3 watt |
| Power Consumption (Typical) | 6 watt |
| Power Consumption Sleep | 0.5 watt |
| Software / System Requirements | |
| OS Required | Windows 10, Windows 11 |
| Sustainability Information | |
| ENERGY STAR Certified | Yes |
| EPEAT Compliant | EPEAT Silver |
