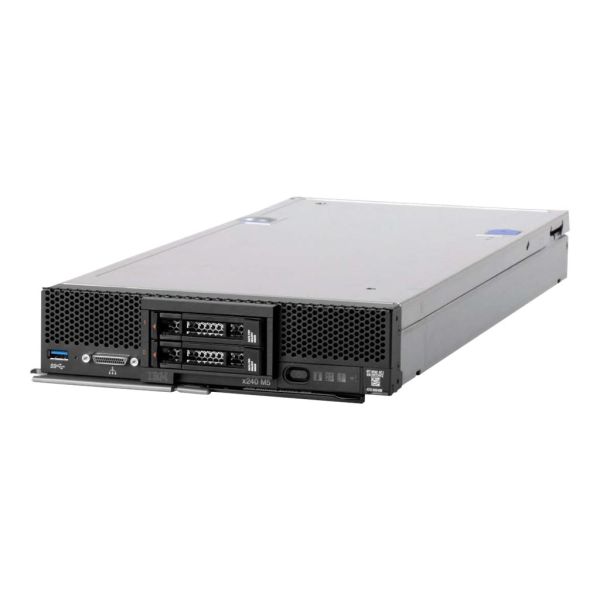

Lenovo Flex System x240 M5 9532
The x240 M5 Compute Node uses IBM TruDDR4 memory DIMM technology, which offers higher clock speeds, faster data transfer rates, and runs at a lower voltage (1.2V). With DDR4 technology, memory DIMMs can now operate at speeds up to 2133 MHz, which provides lower latency times and enhanced computing power. The TruDDR4 memory portfolio includes RDIMMs with advanced error correction for reliability, performance, and maximum memory capacity. The x240 M5 Compute Node integrates leaderJTFp security and reliability. System x trusted platform assurance, an exclusive set of system x features and practices, establishes a foolproof security foundation for your workloads. Enterprise-class data protection is provided with optional self-encrypting drives and simple, centralized key management through IBM security key lifecycle management. Diagnostic tools facilitate reduced downtime and costs.
| General Information | |
|---|---|
| Category | Servers |
| Description | Lenovo Flex System x240 M5 9532 - Server - compute node - 2-way - 2 x Xeon E5-2667V4 / 3.2 GHz - RAM 64 GB - SAS - hot-swap 2.5" bay(s) - no HDD - G200eR2 - no OS - monitor: none - TopSeller |
| Manufacturer | Lenovo |
| MSRP | $7,399.00 |
| UNSPSC | 43211501 |
| Main Specifications | |
| Chassis / Form Factor | Blade |
| Chassis / Server Storage Bays | Hot-swap |
| Chassis / Server Swappable Drive Interface | SAS |
| Dimensions & Weight / Depth | 49.3 cm |
| Dimensions & Weight / Height | 5.1 cm |
| Dimensions & Weight / Weight | 7.1 kg |
| Dimensions & Weight / Width | 21.5 cm |
| Display / Type | None. |
| Header / Brand | Lenovo |
| Header / Localization | English |
| Mainboard / Chipset Type | Intel C612 |
| Miscellaneous / Product Color | Black |
| Optical Storage / Drive Type | No optical drive |
| Optical Storage / Type | None |
| OS Provided / Type | No operating system |
| Packaged Quantity | 1 |
| Processor / Clock Speed | 3.2 GHz |
| Processor / Manufacturer | Intel |
| Processor / Number of Cores | 8-core |
| Processor / Processor Number | E5-2667V4 |
| Processor / Type | Xeon |
| RAM / Data Integrity Check | ECC |
| RAM / Form Factor | DIMM 288-pin |
| RAM / Memory Specification Compliance | PC4-19200 |
| RAM / Memory Speed | 2400 MHz |
| RAM / Technology | DDR4 SDRAM |
| Service & Support / Type | 3-year warranty |
| System / Hard Drive Capacity | 0 GB |
| System / Type | Server |
| Video Output / Graphics Processor | Matrox G200eR2 |
| Cache Memory | |
| Cache Per Processor | 25 MB |
| Installed Size | 50 MB |
| Card Reader | |
| Supported Flash Memory Cards | SD Memory Card |
| Type | Card reader |
| Dimensions & Weight | |
| Depth | 49.3 cm |
| Height | 5.1 cm |
| Weight | 7.1 kg |
| Width | 21.5 cm |
| Environmental Parameters | |
| Humidity Range Operating | 8 - 85% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 5 °C |
| Expansion / Connectivity | |
| Bays | 2 (total) / 2 (free) x hot-swap 2.5" |
| Interfaces |
|
| Slots |
|
| General | |
| Built-in Devices | LED panel |
| Embedded Security | Trusted Platform Module (TPM 1.2) Security Chip |
| Hot-Swap Bays Qty | 2 |
| Localization | Language: English |
| Product Form Factor | Compute node |
| Server Scalability | 2-way |
| Type | Server |
| Graphics Controller | |
| Graphics Processor | Matrox G200eR2 |
| Video Memory | 16 MB |
| Hard Drive | |
| Type | No HDD |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 3 years - on-site - response time: next business day |
| Miscellaneous | |
| Compliant Standards | NEBS level 3, TUV GS, CISPR 22 Class A, BSMI CNS 13438 Class A, EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class A, CB, IEC 60950-1, EN 60950-1, FCC Part 15 A, CSA C22.2 No. 60950-1, ICES-004, VCCI Class A, KN22, KN24, ASHRAE, CNS 14336 |
| Manufacturer Selling Program | TopSeller |
| Monitor | |
| Monitor Type | None. |
| Networking | |
| Remote Management Controller | Integrated Management Module II (IMM2) |
| Remote Management Protocol | SNMP 3, CIM, IPMI 2.0 |
| Operating System / Software | |
| OS Provided | No operating system |
| Optical Storage | |
| Type | No optical drive |
| Processor / Chipset | |
| Chipset Type | Intel C612 |
| Clock Speed | 3.2 GHz |
| CPU | Intel Xeon E5-2667V4 |
| CPU Qty | 2 |
| CPU Upgradability | Upgradable |
| Max CPU Qty | 2 |
| Max Turbo Speed | 3.6 GHz |
| Number of Cores | 8-core |
| Processor Main Features | Hyper-Threading Technology, Intel Turbo Boost Technology 2 |
| RAM | |
| Configuration Features | 4 x 16 GB |
| Effective Memory Speed | 2400 MT/s |
| Features | Slots 13 - 24 are available in two-processor configuration only, TruDDR4 |
| Form Factor | DIMM 288-pin |
| Installed Size | 64 GB |
| Memory Specification Compliance | PC4-19200 |
| RAM Supported |
|
| Slots | 24 (total) / 20 (empty) |
| Technology | DDR4 SDRAM - ECC |
| Storage Controller | |
| Controller Interface Type | SATA 6Gb/s / SAS 12Gb/s |
| RAID Level | RAID 0, RAID 1, RAID 1E |
| Storage Controller Name | LSISAS3004 |
| Type | 1 x RAID - PCIe 3.0 x8 |
