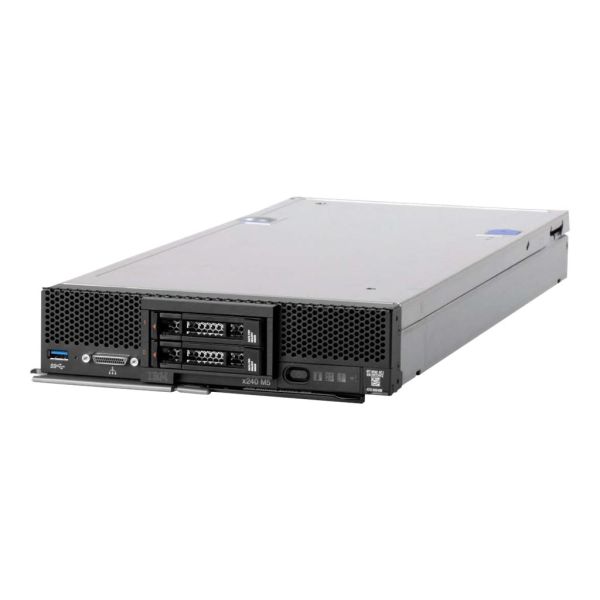

Lenovo Flex System x240 M5 9532

Availability: Out of stock
SKU
9532EIU
UPC Code
889488415373
Questions before you move forward?

Chat with a JTF expert in Springfield, VA.

Click and connect instantly.

secure transactionsecure transaction
The x240 M5 Compute Node uses IBM TruDDR4 memory DIMM technology, which offers higher clock speeds, faster data transfer rates, and runs at a lower voltage (1.2V). With DDR4 technology, memory DIMMs can now operate at speeds up to 2133 MHz, which provides lower latency times and enhanced computing power. The TruDDR4 memory portfolio includes RDIMMs with advanced error correction for reliability, performance, and maximum memory capacity. The x240 M5 Compute Node integrates leaderJTFp security and reliability. System x trusted platform assurance, an exclusive set of system x features and practices, establishes a foolproof security foundation for your workloads. Enterprise-class data protection is provided with optional self-encrypting drives and simple, centralized key management through IBM security key lifecycle management. Diagnostic tools facilitate reduced downtime and costs.
General Information
CategoryServers
DescriptionLenovo Flex System x240 M5 9532 - Server - compute node - 2-way - 2 x Xeon E5-2620V4 / 2.1 GHz - RAM 32 GB - SAS - hot-swap 2.5" bay(s) - no HDD - G200eR2 - no OS - monitor: none - TopSeller
ManufacturerLenovo
MSRP$2,725.00
UNSPSC43211501
Main Specifications
Chassis / Form FactorBlade
Chassis / Server Storage BaysHot-swap
Chassis / Server Swappable Drive InterfaceSAS
Dimensions & Weight / Depth49.3 cm
Dimensions & Weight / Height5.1 cm
Dimensions & Weight / Weight7.1 kg
Dimensions & Weight / Width21.5 cm
Display / TypeNone.
Header / BrandLenovo
Header / LocalizationEnglish
Mainboard / Chipset TypeIntel C612
Miscellaneous / Product ColorBlack
Optical Storage / Drive TypeNo optical drive
Optical Storage / TypeNone
OS Provided / TypeNo operating system
Packaged Quantity1
Processor / Clock Speed2.1 GHz
Processor / ManufacturerIntel
Processor / Number of Cores8-core
Processor / Processor NumberE5-2620V4
Processor / TypeXeon
RAM / Data Integrity CheckECC
RAM / Form FactorDIMM 288-pin
RAM / Memory Specification CompliancePC4-19200
RAM / Memory Speed2133 MHz
RAM / TechnologyDDR4 SDRAM
Service & Support / Type3-year warranty
System / Hard Drive Capacity0 GB
System / TypeServer
Video Output / Graphics ProcessorMatrox G200eR2
Cache Memory
Cache Per Processor20 MB
Installed Size40 MB
Card Reader
Supported Flash Memory CardsSD Memory Card
TypeCard reader
Dimensions & Weight
Depth49.3 cm
Height5.1 cm
Weight7.1 kg
Width21.5 cm
Environmental Parameters
Humidity Range Operating8 - 85% (non-condensing)
Max Operating Temperature40 °C
Min Operating Temperature5 °C
Expansion / Connectivity
Bays2 (total) / 2 (free) x hot-swap 2.5"
Interfaces
  • 1 x USB 3.0 (1 in front)
  • 1 x management (1 in front)
Slots
  • 2 (total) / 0 (free) x CPU
  • 24 (total) / 22 (free) x DIMM 288-pin
  • 2 PCIe 3.0 x16
General
Built-in DevicesLED panel
Embedded SecurityTrusted Platform Module (TPM 1.2) Security Chip
Hot-Swap Bays Qty2
LocalizationLanguage: English
Product Form FactorCompute node
Server Scalability2-way
TypeServer
Graphics Controller
Graphics ProcessorMatrox G200eR2
Video Memory16 MB
Hard Drive
TypeNo HDD
Manufacturer Warranty
Service & SupportLimited warranty - parts and labor - 3 years - on-site - response time: next business day
Miscellaneous
Compliant StandardsNEBS level 3, TUV GS, CISPR 22 Class A, BSMI CNS 13438 Class A, EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class A, CB, IEC 60950-1, EN 60950-1, FCC Part 15 A, CSA C22.2 No. 60950-1, ICES-004, VCCI Class A, KN22, KN24, ASHRAE, CNS 14336
Manufacturer Selling ProgramTopSeller
Monitor
Monitor TypeNone.
Networking
Remote Management ControllerIntegrated Management Module II (IMM2)
Remote Management ProtocolSNMP 3, CIM, IPMI 2.0
Operating System / Software
OS ProvidedNo operating system
Optical Storage
TypeNo optical drive
Processor / Chipset
Chipset TypeIntel C612
Clock Speed2.1 GHz
CPUIntel Xeon E5-2620V4
CPU Qty2
CPU UpgradabilityUpgradable
Max CPU Qty2
Max Turbo Speed3 GHz
Number of Cores8-core
Processor Main FeaturesHyper-Threading Technology, Intel Turbo Boost Technology 2
RAM
Configuration Features2 x 16 GB
Effective Memory Speed2133 MT/s
FeaturesSlots 13 - 24 are available in two-processor configuration only, TruDDR4
Form FactorDIMM 288-pin
Installed Size32 GB
Memory Specification CompliancePC4-19200
RAM Supported
  • 1.5 TB Load-Reduced - ECC
  • 768 GB registered - ECC
Slots24 (total) / 22 (empty)
TechnologyDDR4 SDRAM - ECC
Storage Controller
Controller Interface TypeSATA 6Gb/s / SAS 12Gb/s
RAID LevelRAID 0, RAID 1, RAID 1E
Storage Controller NameLSISAS3004
Type1 x RAID - PCIe 3.0 x8
