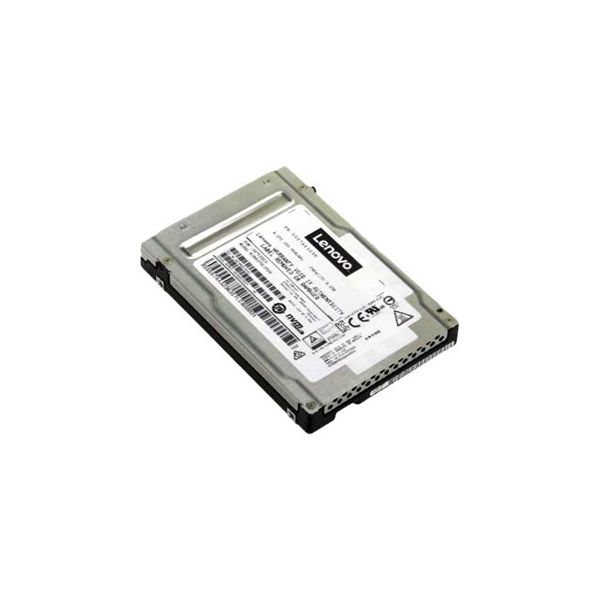

KIOXIA CM6-V Mainstream
The ThinkSystem Kioxia CM6-V Mainstream NVMe PCIe 4.0 x4 solid-state drives (SSDs) are advanced data center SSDs optimized for mixed read-write performance, endurance, and strong data protection for Lenovo servers. With a PCIe 4.0 x4 interface, they are designed for greater performance and endurance in a cost-effective design, and to support a broader set of workloads. Non-Volatile Memory Express (NVMe) is PCIe high performance SSD technology that provides high I/O throughput and low latency. NVMe interfaces remove SAS/SATA bottlenecks and unleash all of the capabilities of contemporary NAND flash memory. Each NVMe PCI SSD has direct PCIe x4 connection, which provides at significantly greater bandwidth and lower latency than SATA/SAS-based SSD solutions. NVMe drives are also optimized for heavy multi-threaded workloads by using internal parallelism and many other improvements, such as enlarged I/O queues.
| General Information | |
|---|---|
| Category | Hard drives |
| Description | KIOXIA CM6-V Mainstream - SSD - 800 GB - hot-swap - 2.5" (in 3.5" carrier) - PCIe 4.0 x4 (NVMe) - CRU - for ThinkAgile MX3530-H Hybrid Appliance; MX3531-H Hybrid Certified Node |
| Manufacturer | Lenovo |
| MSRP | $1,319.00 |
| UNSPSC | 43201803 |
| Main Specifications | |
| Dimensions & Weight / Depth | 100 mm |
| Dimensions & Weight / Height | 15 mm |
| Dimensions & Weight / Weight | 130 g |
| Dimensions & Weight / Width | 70 mm |
| Hard Drive / Capacity | 800 GB |
| Hard Drive / Form Factor | 2.5" |
| Hard Drive / Hard Drive Type | Hot-swap hard drive |
| Hard Drive / Interface | PCI Express 4.0 x4 (NVMe) |
| Hard Drive / Interface | PCI Express 4.0 x4 (NVMe) |
| Header / Brand | KIOXIA |
| Packaged Quantity | 1 |
| Service & Support / Type | 1-year warranty |
| Storage / Type | Solid state drive |
| Compatibility Information | |
| Designed For |
|
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Max Operating Temperature | 70 °C |
| Max Storage Temperature | 80 °C |
| Min Operating Temperature | 0 °C |
| Min Storage Temperature | -40 °C |
| Shock Tolerance (operating) | 1000 g @ 0.5 ms |
| Vibration Tolerance (operating) | 2.17 g @ 5-800 Hz |
| Expansion & Connectivity | |
| Compatible Bay | 2.5" or 3.5" (with included bay adapter) |
| Interfaces | 1 x PCI Express 4.0 x4 (NVMe) |
| General | |
| Capacity | 800 GB |
| Depth | 100 mm |
| Device Type | Solid state drive - hot-swap |
| Features | End-to-end data protection, power loss data protection, NVM Express (NVMe), 96-layer 3D BiCS FLASH |
| Form Factor | 2.5" |
| Height | 15 mm |
| Interface | PCIe 4.0 x4 (NVMe) |
| NAND Flash Memory Type | 3D triple-level cell (TLC) |
| Weight | 130 g |
| Width | 70 mm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - replacement - 1 year |
| Miscellaneous | |
| Compliant Standards | TUV, BSMI, EMC, UL 60950-1, EN 60950-1, KN22, MSIP, RoHS 2011/65/EU, CNS 13438 Class B, ICES-003 issue 6 Class B, KN24 Class B, CAN/CSA-C22.2 No. 60950-1, AS/NZS CISPR32:2015 Class B, EN 55022:2015 Class B, EN 55035:2017, KN24 |
| Pricing Type | Customer-replaceable Unit (CRU) |
| Performance | |
| 4KB Random Read | 880000 IOPS |
| 4KB Random Write | 100000 IOPS |
| Average Latency | 10 µs |
| Drive Writes Per Day (DWPD) | 3 |
| Internal Data Rate | 6900 MBps (read) / 1400 MBps (write) |
| SSD Endurance | 4380 TB |
| Power | |
| Power Consumption | 14 watt (typical) |
| Reliability | |
| MTBF | 2,500,000 hours |
| Non-Recoverable Errors | 1 per 10^17 |
