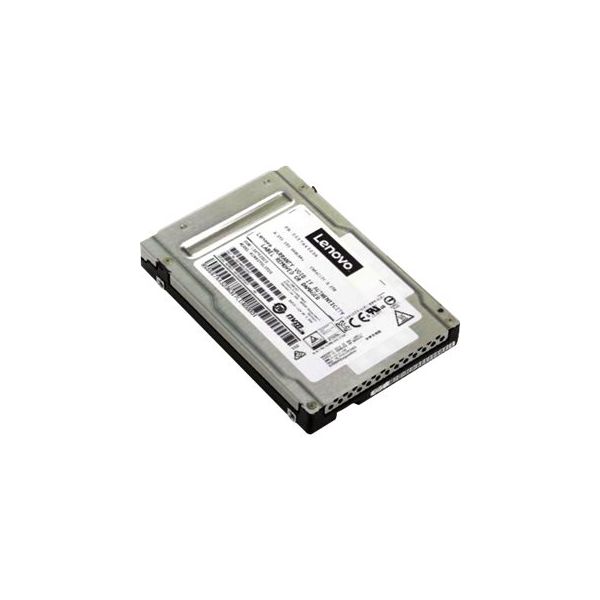

KIOXIA CM6-V Mainstream
The ThinkSystem Kioxia CM6-V Mainstream NVMe PCIe 4.0 x4 solid-state drives (SSDs) are advanced data center SSDs optimized for mixed read-write performance, endurance, and strong data protection for Lenovo servers. With a PCIe 4.0 x4 interface, they are designed for greater performance and endurance in a cost-effective design, and to support a broader set of workloads.
| General Information | |
|---|---|
| Category | Hard drives |
| Description | KIOXIA CM6-V Mainstream - SSD - 800 GB - hot-swap - 2.5" - U.3 PCIe 4.0 x4 (NVMe) - for ThinkAgile MX3330-F Appliance; MX3330-H Appliance; MX3331-F Certified Node |
| Manufacturer | Lenovo |
| MSRP | $1,309.00 |
| UNSPSC | 43201803 |
| Main Specifications | |
| Dimensions & Weight / Depth | 100 mm |
| Dimensions & Weight / Height | 15 mm |
| Dimensions & Weight / Weight | 130 g |
| Dimensions & Weight / Width | 70 mm |
| Hard Drive / Capacity | 800 GB |
| Hard Drive / Form Factor | 2.5" |
| Hard Drive / Hard Drive Type | Hot-swap hard drive |
| Hard Drive / Interface | U.3 PCIe 4.0 x4 (NVMe) |
| Hard Drive / Interface | U.3 PCIe 4.0 x4 (NVMe) |
| Header / Brand | KIOXIA |
| Miscellaneous / Product Color | Silver |
| Packaged Quantity | 1 |
| Service & Support / Type | 1-year warranty |
| Storage / Type | Solid state drive |
| Compatibility Information | |
| Designed For |
|
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Max Operating Temperature | 70 °C |
| Max Storage Temperature | 80 °C |
| Min Operating Temperature | 0 °C |
| Min Storage Temperature | -40 °C |
| Shock Tolerance (operating) | 1000 g @ 0.5 ms |
| Vibration Tolerance (operating) | 2.17 g @ 5-700 Hz |
| Expansion & Connectivity | |
| Compatible Bay | 2.5" |
| Interfaces | 1 x U.3 PCIe 4.0 x4 (NVMe) |
| General | |
| Capacity | 800 GB |
| Depth | 100 mm |
| Device Type | Solid state drive - hot-swap |
| Features | Power Loss Protection (PLP), End-to-end data protection, 96-layer 3D BiCS FLASH |
| Form Factor | 2.5" |
| Height | 15 mm |
| Interface | U.3 PCIe 4.0 x4 (NVMe) |
| NAND Flash Memory Type | 3D triple-level cell (TLC) |
| Weight | 130 g |
| Width | 70 mm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - replacement - 1 year |
| Miscellaneous | |
| Compliant Standards | UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, BSMI CNS 13438, AS/NZS CISPR32:2015 Class B, ICES-003 issue 6 Class B, EN 55022:2015 Class B, EN 55035:2017, RoHS 2011/65/EU, EN 50581:2012, TUV, EMC, KN22, KN24, MSIP |
| Performance | |
| 4KB Random Read | 880000 IOPS |
| 4KB Random Write | 100000 IOPS |
| Average Latency | 10 µs |
| Drive Writes Per Day (DWPD) | 3 |
| Internal Data Rate | 6900 MBps (read) / 1400 MBps (write) |
| SSD Endurance | 4380 TB |
| Power | |
| Power Consumption | 14 watt (maximum) |
| Reliability | |
| MTBF | 2,500,000 hours |
| Non-Recoverable Errors | 1 per 10^17 |
