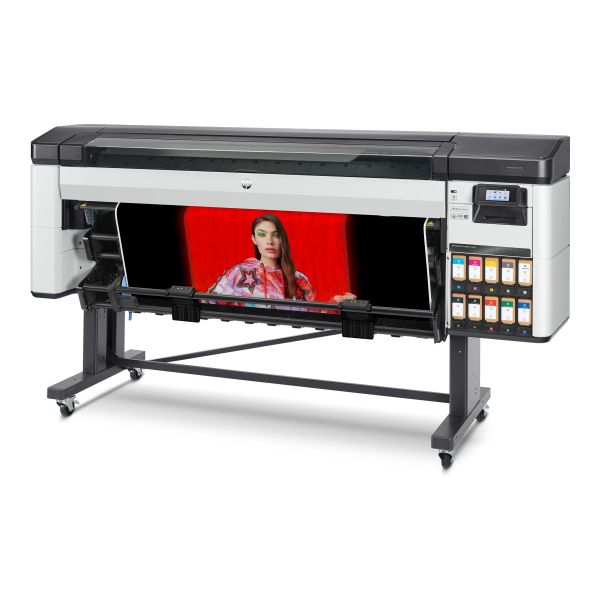

HP DesignJet Z9+ Pro
- Unique vibrancy from widest gamut 1 Amaze your clients delivering the highest professional-photo quality prints with widest gamut. 1 Impress with color accuracy, 2 smooth gradients and superior gloss uniformity. 3:
- Produce more with higher speed 4 Print up to 46% faster with better quality 4 and gain efficiency with fastest media handling. 5 Increase productivity and uptime with recyclable 1-liter inks 6 and universal HP HDNA printheads.:
- Control print operations with HP PrintOS 7 Monitor your print production, easily share media presets remotely and act fast receiving notifications on supplies, system, and connectivity status with HP PrintOS. 7:
- Professional photography Print large-format professional photo quality with confidence with an expanded color gamut enabled by RGB HP Vivid Photo Inks. 10:
- Fine art reproduction Produce exceptional fine art reproductions 1 on a range of printing materials from canvas to fine art papers.:
- POP/POS retail signage Create appealing advertising on multiple types of materials to give your store a premium feel with high-impact graphics.:
| General Information | |
|---|---|
| Category | Inkjet printers |
| Description | HP DesignJet Z9+ Pro - 64" large-format printer - color - ink-jet - Roll (162.6 cm) - 2400 x 1200 dpi - up to 98 sq.m/hour (mono) / up to 98 sq.m/hour (color) - capacity: 2 rolls - Gigabit LAN, USB host - cutter |
| Manufacturer | HP, Inc. |
| UNSPSC | 43212104 |
| Main Specifications | |
| Dimensions & Weight / Depth | 79 cm |
| Dimensions & Weight / Height | 140.2 cm |
| Dimensions & Weight / Weight | 170 kg |
| Dimensions & Weight / Width | 260.5 cm |
| Document & Media Handling / Large Format Printer Size | 64" |
| Header / Brand | HP |
| Header / Country Kits |
|
| Header / Localization |
|
| Miscellaneous / Product Color |
|
| Networking / Type | Print server |
| Office Machine / Functions | Printer |
| Office Machine / Printing Output Type | Color |
| Office Machine / Printing Technology | Ink-jet |
| Office Machine / Type | Printer |
| Packaged Quantity | 1 |
| PC Connectivity / PC Connection |
|
| Power Device / Type | Power supply |
| Printer / Connectivity Technology | Wired |
| Printer / PostScript Support | Standard |
| Printer / Total Media Capacity | 2 rolls |
| Printer / Type | Large-format printer |
| Scanner / Type | None |
| Service & Support / Type | 1-year warranty |
| Dimensions & Weight | |
| Depth | 79 cm |
| Height | 140.2 cm |
| Weight | 170 kg |
| Width | 260.5 cm |
| Dimensions & Weight (JTFpping) | |
| Depth (JTFpping) | 75 cm |
| Height (JTFpping) | 130.2 cm |
| Weight (JTFpping) | 264 kg |
| Width (JTFpping) | 280 cm |
| Environmental Parameters | |
| Humidity Range Operating | 20 - 80% |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 5 °C |
| Sound Emission (Idle) | 25 dBA |
| Sound Emission (Operating) | 52 dBA |
| Environmental Standards | |
| ENERGY STAR | Yes |
| Expansion / Connectivity | |
| Connections |
|
| General | |
| Localization | English, French, Portuguese, Spanish / Canada, Latin America, United States |
| Printer Type | 64" large-format printer - ink-jet - color |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Media Handling | |
| Max Media Size | Roll (162.6 cm) |
| Max Media Size (Custom) | 420 mm x 1626 mm |
| Max Printing Width | 1626 mm |
| Media Feeders | 1 x automatic - 2 rolls - Roll (162.6 cm) weight: 80 g/m² - 500 g/m² |
| Media Sizes | Roll (162.6 cm), Roll (152.4 cm x 30.5 m), Roll (91.4 cm x 30.5 m) |
| Media Thickness Range | Up to 0.6 mm |
| Media Type | Photo paper, fine art paper, bond paper, film, backlit paper, glossy paper, poster/banner paper, matte paper |
| Media Weight | 80 g/m² - 500 g/m² |
| Total Media Capacity | 2 rolls |
| Miscellaneous | |
| Compliant Standards | ICES, FCC, EMC, RCM, VCCI, KCC, WEEE, EU RoHS, China RoHS, REACH, IEC 60950-1+A1+A2, IEC 62368-1, CSA, EN 60950-1, EN 62368-1, LVD, EAC, IRAM, PSB, CCC |
| Consumables Included |
|
| Included Accessories | Introductory ink cartridges, maintenance cartridge, media bin, stand, setup poster, maintenance kit, 3" core adapter |
| Networking | |
| Networking | Print server |
| Power | |
| Frequency Required | 50/60 Hz |
| Power Consumption Operational | 150 Watt |
| Power Consumption Sleep | 9 Watt |
| Power Consumption Stand by | 35 Watt |
| Power Device | Power supply - internal |
| Voltage Required | AC 100-240 V |
| Printer | |
| Connectivity Technology | Wired |
| Cutter | Yes |
| Ink Cartridge Configuration | 9 cartridges (1 each: cyan, magenta, chromatic red, yellow, matte black, photo black, chromatic green, chromatic blue, gray) |
| Ink Palette Supported (Colors) | 6-ink - cyan, magenta, yellow, matte black, photo black, chromatic red, chromatic green, chromatic blue, gray |
| Ink Type | HP Vivid Photo Inks |
| Inkjet Technology | HP Thermal Inkjet |
| Interface | Gigabit LAN, USB host |
| Language Simulation | PostScript 3, PDF 1.7, CALS G4, JPEG, TIFF, HP GL/2, HP RTL |
| Max Resolution (B&W) | 2400 x 1200 dpi |
| Max Resolution (Color) | 2400 x 1200 dpi |
| Nozzle Configuration | 28224 nozzles |
| PostScript Support | Standard |
| Print Speed |
|
| Software / System Requirements | |
| Software Included | Drivers & Utilities, HP Click, HP PrintOS, HP Partner Link, HP DesignJet Accounting Tool, HP Web JetAdmin |
| Storage | |
| Hard Drive | 500 GB |
Onsite Service
Following your purchase, JTF will assign an authorized service partner in your area to your account. Your service calls are processed and dispatched in just minutes after they are received, thus minimizing your downtimes. All service partners are authorized, factory trained and 100% endorsed by JTF Network Partners, with over 600 service dealers nationwide*
Same Day Onsite Service:
Same Day Service is provided at your business or home during the contracted Maintenance period.
Exceptions:
1) Your offices are 40 miles away from the closest service providers.
2) Service in HI, AK & PR.
Convenient Assistance:
Having device issues?
Experts are here 8am -6pm weekly to help solve your technical problems.
Fast, free replacements:
If we can’t fix your printer, we’ll try to replace it by the next business day.
No hidden fees:
Parts and labor, replacements, even return shipping — it’s all covered by your JTF Warranty.
Optional extra coverage:
Additional coverage to include supplies are available for purchase.
No Expert Install
$349.00 Expert Install
Installation Service for equipment includes the following:
JTF will schedule an appointment with one person per site. Unless otherwise requested and/or scheduled, the standard practice is to start all installation services within one week the delivery of the hardware to the customer’s location.
Unpacking: JTF will inventory the shipment against the packing list, unpack and install all delivered products.
Setup/Installation: JTF will physically assemble, connect peripherals, network cables, and power cords that were purchased from JTF.
a. This service provides installation of drivers on a single PC workstation (not server), network setup, including the programming of the IP address and network settings and verification of the network functionality, wireless connection setup and verification of the functionality over the Internet.
b. For configuration networking, the Customer can choose between automatic configuration using BOOTCP or Dynamic Host Configuration Protocol (DHCP), or manual configuration with IP address, default gateway, and subnet mask.
c. For multifunction products, the service provides setup of the ‘send to email configuration’ and configuration of the SMTP or LDAP.
d. This service provides the Customer-identified key operator with a basic overview on how to install consumables, plus explanations of basic features and functionality such as drivers, control panel features, embedded Web server, and alerts.
