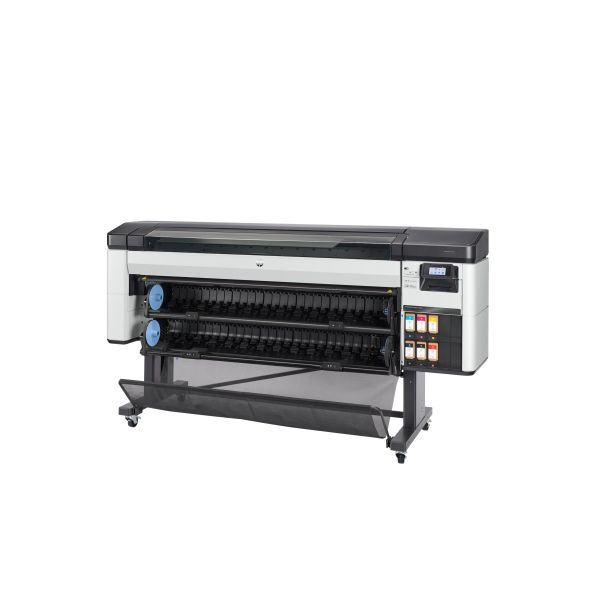

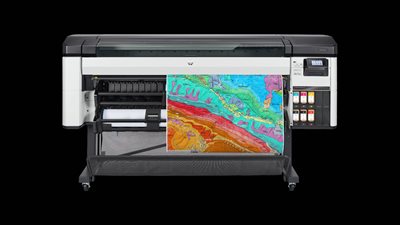

HP DesignJet Z6 Pro - 64" large-format printer
- Highest precision and fine line detail 1 Rely on clear PDF output 2 and achieve sharp lines and text with high-definition HP printheads. Get smooth gradients and work freely with water-/fade-resistant prints using HP Vivid Photo Inks. 3:
- Enhanced efficiency, higher speed 4 Save up to 40% time changing media with dual roll 5 and gain efficiency with fastest media handling. 6 Print 2 times faster without losing quality 4 and save time with HP Click job submission software. 7:
- World's most secure large-format printer 8 Get the best data and network protection 8 with built-in security features and keep your devices secure setting security preferences any time.:
- HP Vivid Photo Inks Designed to support the way you work, HP Vivid Photo Inks help you produce water- and fade-resistant prints 3 achieving highest precision 1 , fine line details and distinguishable colors.:
- HP Click Radically simple printing experience with the world's easiest job submission software 7 . With one click 10 , send multiple files to print from a PC or Mac 7 .:
- Security Firewalls alone can't withstand attacks from sophisticated hackers. You need the world's most secure large format printer 8 from HP to help protect your devices, data and documents.:
| General Information | |
|---|---|
| Category | Inkjet printers |
| Description | HP DesignJet Z6 Pro - 64" large-format printer - color - ink-jet - Roll (162.6 cm) - 2400 x 1200 dpi - up to 98 sq.m/hour (mono) / up to 98 sq.m/hour (color) - capacity: 2 rolls - Gigabit LAN, USB host - cutter |
| Manufacturer | HP, Inc. |
| UNSPSC | 43212104 |
| Main Specifications | |
| Dimensions & Weight / Depth | 79 cm |
| Dimensions & Weight / Height | 140.2 cm |
| Dimensions & Weight / Weight | 169 kg |
| Dimensions & Weight / Width | 260.5 cm |
| Document & Media Handling / Large Format Printer Size | 64" |
| Header / Brand | HP |
| Header / Country Kits |
|
| Header / Localization |
|
| Miscellaneous / Product Color |
|
| Networking / Type | Print server |
| Office Machine / Functions | Printer |
| Office Machine / Printing Output Type | Color |
| Office Machine / Printing Technology | Ink-jet |
| Office Machine / Type | Printer |
| Packaged Quantity | 1 |
| PC Connectivity / PC Connection |
|
| Power Device / Type | Power supply |
| Printer / Connectivity Technology | Wired |
| Printer / PostScript Support | Standard |
| Printer / Total Media Capacity | 2 rolls |
| Printer / Type | Large-format printer |
| Scanner / Type | None |
| Service & Support / Type | 1-year warranty |
| Dimensions & Weight | |
| Depth | 79 cm |
| Height | 140.2 cm |
| Weight | 169 kg |
| Width | 260.5 cm |
| Dimensions & Weight (JTFpping) | |
| Depth (JTFpping) | 75 cm |
| Height (JTFpping) | 130.2 cm |
| Weight (JTFpping) | 262 kg |
| Width (JTFpping) | 280 cm |
| Environmental Parameters | |
| Humidity Range Operating | 20 - 80% |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 5 °C |
| Sound Emission (Idle) | 25 dBA |
| Sound Emission (Operating) | 52 dBA |
| Environmental Standards | |
| ENERGY STAR | Yes |
| Expansion / Connectivity | |
| Connections |
|
| General | |
| Localization | English, French, Portuguese, Spanish / Canada, Latin America, United States |
| Printer Type | 64" large-format printer - ink-jet - color |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Media Handling | |
| Max Media Size | Roll (162.6 cm) |
| Max Media Size (Custom) | 420 mm x 1626 mm |
| Max Printing Width | 1626 mm |
| Media Feeders | 1 x automatic - 2 rolls - Roll (162.6 cm) weight: 80 g/m² - 500 g/m² |
| Media Sizes | Roll (162.6 cm), Roll (152.4 cm x 30.5 m), Roll (91.4 cm x 30.5 m) |
| Media Thickness Range | Up to 0.6 mm |
| Media Type | Photo paper, fine art paper, bond paper, film, backlit paper, glossy paper, poster/banner paper, matte paper |
| Media Weight | 80 g/m² - 500 g/m² |
| Total Media Capacity | 2 rolls |
| Miscellaneous | |
| Compliant Standards | ICES, FCC, EMC, RCM, VCCI, KCC, WEEE, EU RoHS, China RoHS, REACH, IEC 60950-1+A1+A2, IEC 62368-1, CSA, EN 60950-1, EN 62368-1, LVD, EAC, IRAM, PSB, CCC |
| Consumables Included |
|
| Included Accessories | Maintenance kit, 3" core adapter, introductory ink cartridges, maintenance cartridge, media bin, stand, setup poster |
| Networking | |
| Networking | Print server |
| Power | |
| Frequency Required | 50/60 Hz |
| Power Consumption Operational | 50 Watt |
| Power Consumption Sleep | 9 Watt |
| Power Consumption Stand by | 35 Watt |
| Power Device | Power supply - internal |
| Voltage Required | AC 100-240 V |
| Printer | |
| Connectivity Technology | Wired |
| Cutter | Yes |
| Ink Cartridge Configuration | 6 cartridges (1 each: cyan, magenta, yellow, gray, photo black, matte black) |
| Ink Palette Supported (Colors) | 6-ink - cyan, magenta, yellow, matte black, photo black, chromatic red |
| Ink Type | HP Vivid Photo Inks |
| Inkjet Technology | HP Thermal Inkjet |
| Interface | Gigabit LAN, USB host |
| Language Simulation | PostScript 3, PDF 1.7, CALS G4, JPEG, TIFF, HP GL/2, HP RTL |
| Max Resolution (B&W) | 2400 x 1200 dpi |
| Max Resolution (Color) | 2400 x 1200 dpi |
| Nozzle Configuration | 18816 nozzles |
| PostScript Support | Standard |
| Print Speed |
|
| Software / System Requirements | |
| Software Included | Drivers & Utilities, HP Click, HP PrintOS, HP Partner Link, HP DesignJet Accounting Tool, HP Web JetAdmin |
| Storage | |
| Hard Drive | 500 GB |
