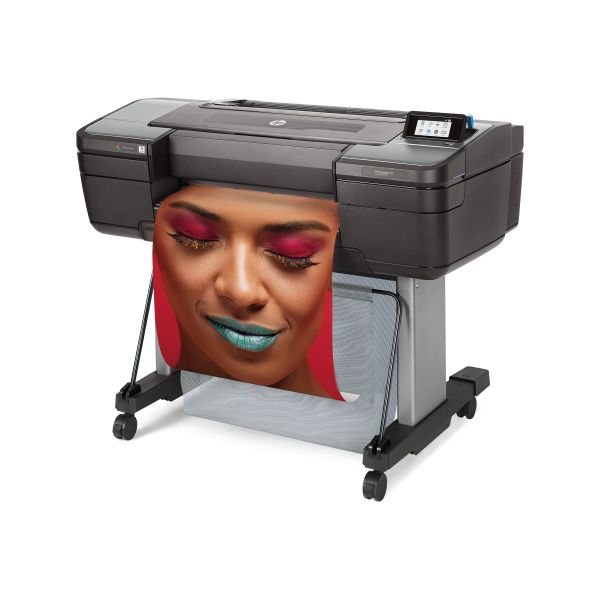

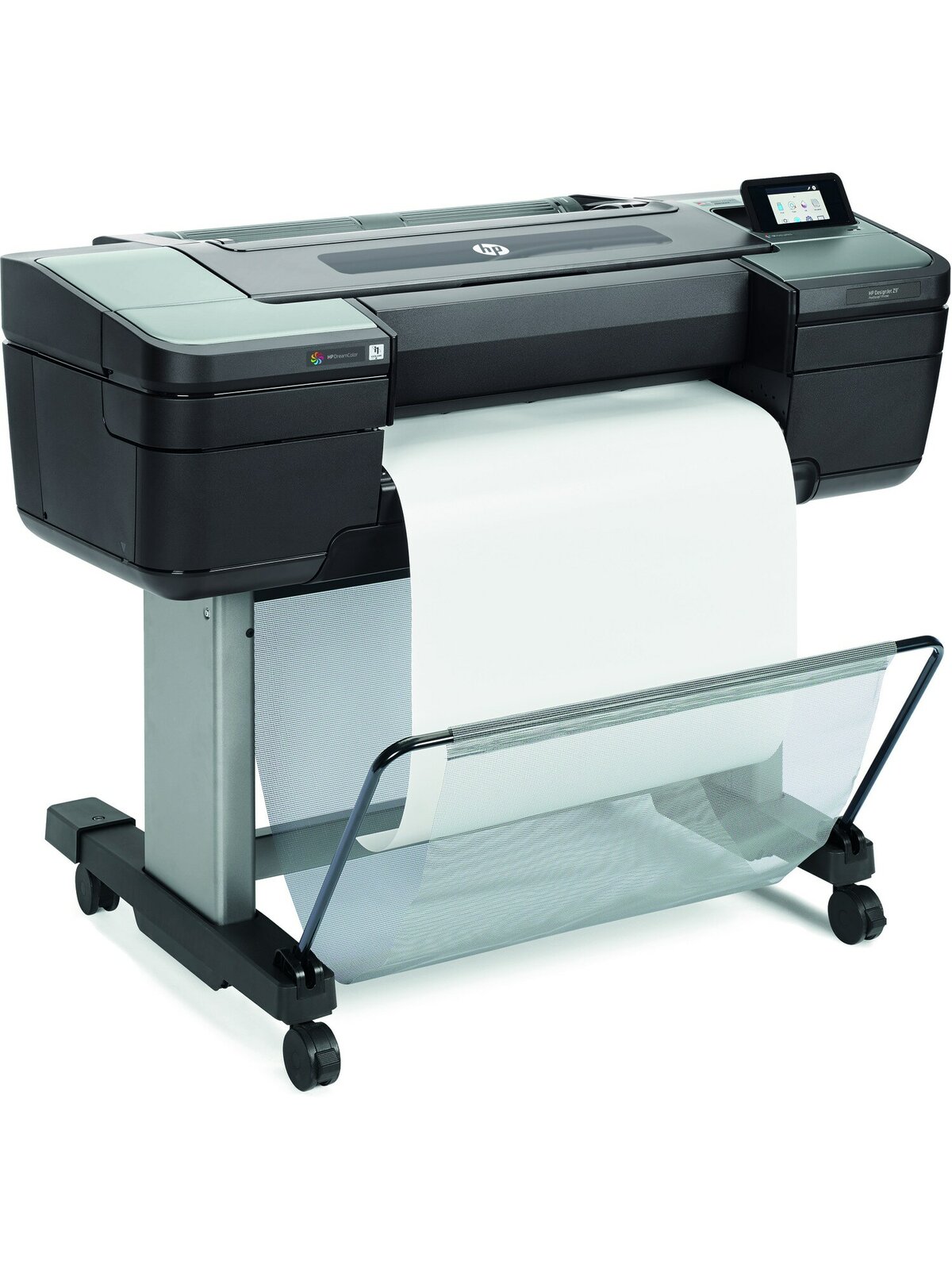

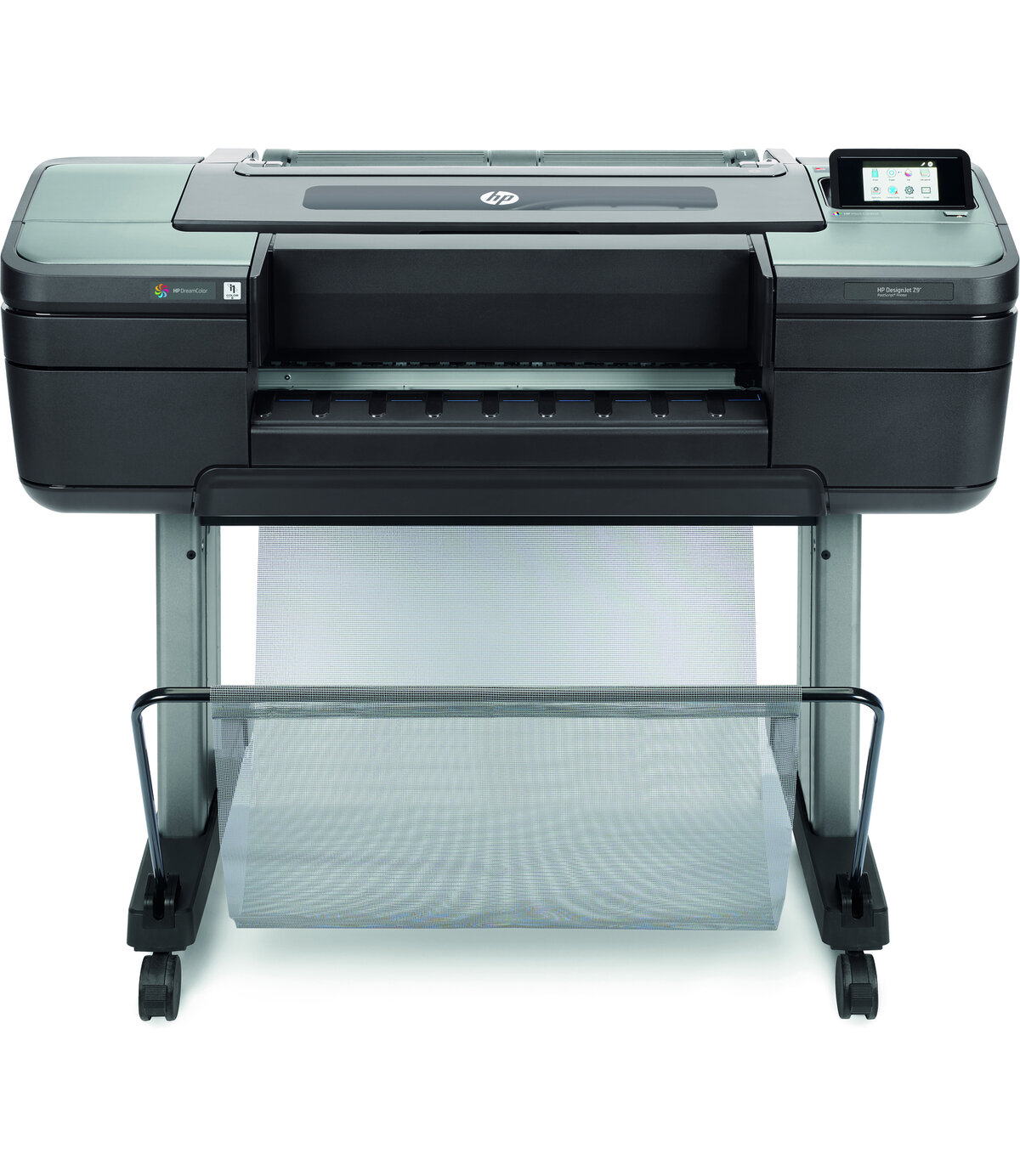

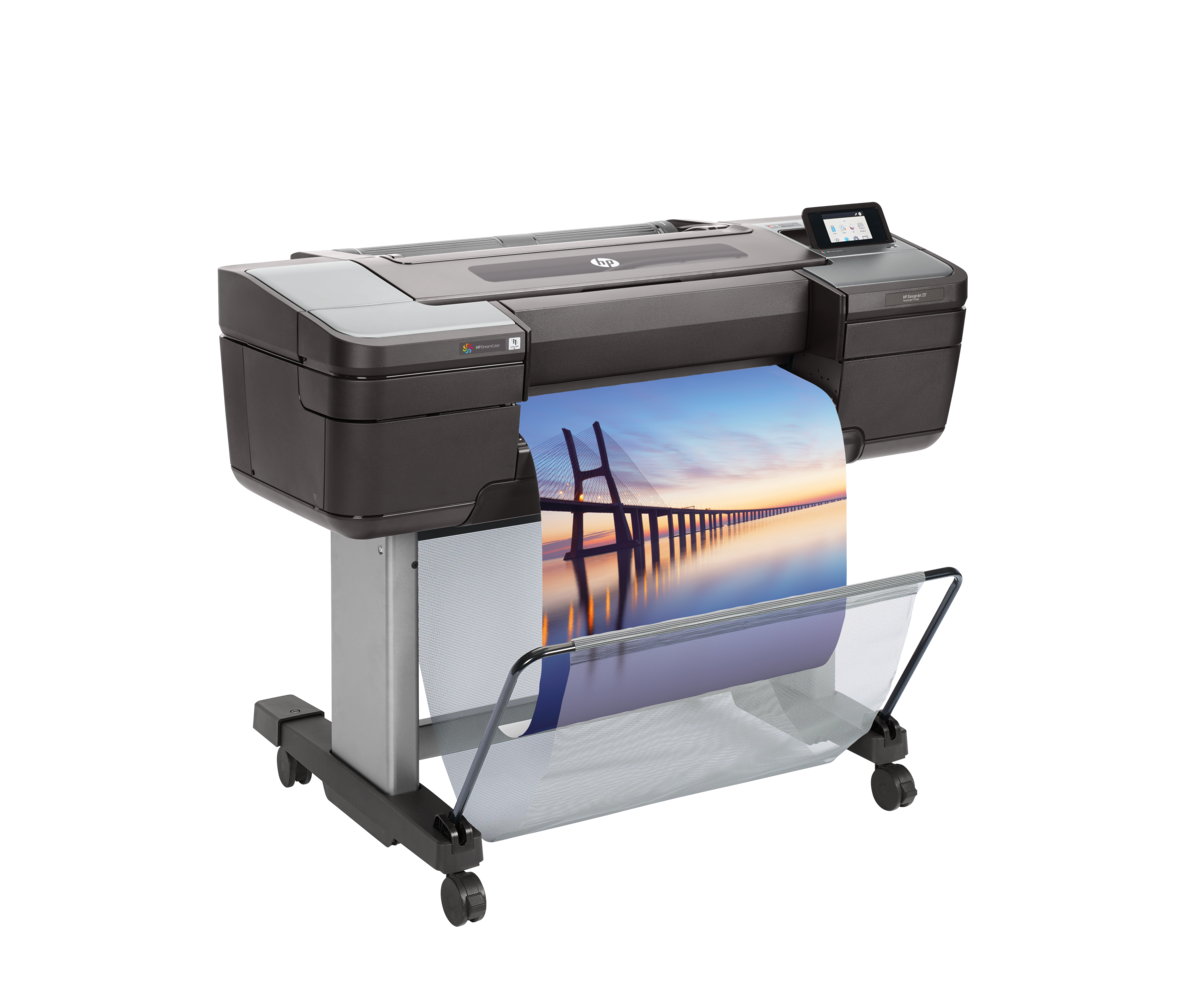

HP DesignJet Z9+ PostScript
- Model size: 24 in
- Memory: 128 GB (virtual) 1
- Hard Drive: 500 GB self-encrypting
- Print speed maximum: Fast: 600 ft/hr on plain media; Normal: 144 ft/hr on coated media; Best: 38 ft/hr on glossy media 2
- Resolution: Up to 2400 x 1200 optimized dpi
- AMAZING—Deliver high quality with confidence: Produce professional photo-quality prints with smooth transitions using HP Pixel Control—no need for light inks with new high-definition HP printheads. Achieve expanded gamut with RGB HP Vivid Photo Inks. Upgrade to get superior gloss uniformity. 6
- FAST—Work without delays: Print 2.5 times faster 3 without losing quality with 2400 nozzle-per-inch high-definition printheads. Cut post-processing labor time up to 20% with the first printer to include an integrated vertical trimmer. 4 Save time with dual roll support. 4
- SIMPLE—New tools for you and your customers: Simplify your workflow. Easily design applications from posters to banners and canvas with the HP Applications Center. 5 Use your current RIPs. 7 Get remote visibility and control to better manage your print production environment with HP PrintOS.
| General Information | |
|---|---|
| Category | Inkjet printers |
| Description | HP DesignJet Z9+ PostScript - 24" large-format printer - color - ink-jet - Roll (61 cm) - 2400 x 1200 dpi - up to 1.5 min/page (mono) / up to 1.5 min/page (color) - capacity: 1 roll - Gigabit LAN, USB host |
| Manufacturer | HP, Inc. |
| UNSPSC | 43212104 |
| Main Specifications | |
| Dimensions & Weight / Depth | 69.5 cm |
| Dimensions & Weight / Height | 99.8 cm |
| Dimensions & Weight / Weight | 66 kg |
| Dimensions & Weight / Width | 129.3 cm |
| Document & Media Handling / Large Format Printer Size | 24" |
| Header / Brand | HP |
| Header / Country Kits |
|
| Header / Localization |
|
| Miscellaneous / Product Color | Black |
| Networking / Type | Print server |
| Office Machine / Functions | Printer |
| Office Machine / Printing Output Type | Color |
| Office Machine / Printing Technology | Ink-jet |
| Office Machine / Type | Printer |
| Packaged Quantity | 1 |
| PC Connectivity / PC Connection |
|
| Power Device / Type | Power supply |
| Printer / Connectivity Technology | Wired |
| Printer / PostScript Support | Standard |
| Printer / Total Media Capacity | 1 roll |
| Printer / Type | Large-format printer |
| Scanner / Type | None |
| Service & Support / Type | 1-year warranty |
| Dimensions & Weight | |
| Depth | 69.5 cm |
| Height | 99.8 cm |
| Weight | 66 kg |
| Width | 129.3 cm |
| Dimensions & Weight (JTFpping) | |
| Depth (JTFpping) | 76.6 cm |
| Height (JTFpping) | 71.8 cm |
| Weight (JTFpping) | 97 kg |
| Width (JTFpping) | 144 cm |
| Environmental Parameters | |
| Humidity Range Operating | 20 - 80% |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 5 °C |
| Sound Emission (Idle) | 33 dBA |
| Sound Emission (Operating) | 42 dBA |
| Environmental Standards | |
| ENERGY STAR | Yes |
| EPEAT Compliant | EPEAT Silver |
| Expansion / Connectivity | |
| Connections |
|
| General | |
| Localization | English, French, Portuguese, Spanish / Canada, Latin America, United States |
| Printer Type | 24" large-format printer - ink-jet - color |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Media Handling | |
| Max Media Size | Roll (61 cm) |
| Max Media Size (Custom) | 610 mm x 1676 mm |
| Max Printing Width | 610 mm |
| Media Feeders | 1 x manual - 1 roll - Roll (61 cm) weight: 80 g/m² - 500 g/m² |
| Media Sizes | ANSI A (Letter) (216 x 279 mm), A4 (210 x 297 mm), A3 (297 x 420 mm), A2 (420 x 594 mm), A1 (594 x 841 mm), ANSI B (Ledger) (279 x 432 mm), ANSI C (432 x 559 mm), ANSI D (559 x 864 mm), 610 x 1676 mm, 210 x 279 mm, Roll (61 cm) |
| Media Thickness Range | Up to 0.8 mm |
| Media Type | Photo paper, fine art paper, bond paper, film, backlit paper, glossy paper, poster/banner paper, matte paper |
| Media Weight | 80 g/m² - 500 g/m² |
| Min Media Size (Custom) | 210 mm x 279 mm |
| Total Media Capacity | 1 roll |
| Miscellaneous | |
| Compliant Standards | FCC Class B certified, CSA, CCC, PSB, IRAM, RoHS, EN 60950-1, ICES Class B, CCC Class B, WEEE, REACH, KCC Class B, LVD, ERP, EMC Class B, VCCI Class B, EAC, BIS, SABS Class B, ACMA, RSM |
| Consumables Included |
|
| Included Accessories | Spindle, media bin, stand |
| Networking | |
| Networking | Print server |
| Power | |
| Frequency Required | 50/60 Hz |
| Power Consumption Operational | 100 Watt |
| Power Consumption Sleep | 0.3 Watt |
| Power Consumption Stand by | 32 Watt |
| Power Device | Power supply - internal |
| Printer | |
| Connectivity Technology | Wired |
| Cutter | Yes |
| Ink Cartridge Configuration | 9 cartridges (1 each: cyan, magenta, chromatic red, yellow, matte black, photo black, chromatic green, chromatic blue, gray) |
| Ink Palette Supported (Colors) | 9-ink - cyan, magenta, yellow, matte black, photo black, chromatic red, chromatic green, chromatic blue, gray |
| Ink Type | HP Vivid Photo Inks |
| Inkjet Technology | HP Thermal Inkjet |
| Interface | Gigabit LAN, USB host |
| Language Simulation | PostScript 3, HP RTL, CALS G4, HP GL/2, TIFF, PDF 1.7, JPEG |
| Max Resolution (B&W) | 2400 x 1200 dpi |
| Max Resolution (Color) | 2400 x 1200 dpi |
| Nozzle Configuration | 2112 nozzles |
| PostScript Support | Standard |
| Print Speed |
|
| Printer Features | Print from mobile device, print from e-mail |
| Software / System Requirements | |
| Software Included | Drivers & Utilities, HP Web JetAdmin, HP Click, HP JetAdvantage Security Manager, HP Partner Link, HP MPS, HP DesignJet Utility, HP Color Center |
| Storage | |
| Hard Drive | 500 GB |
