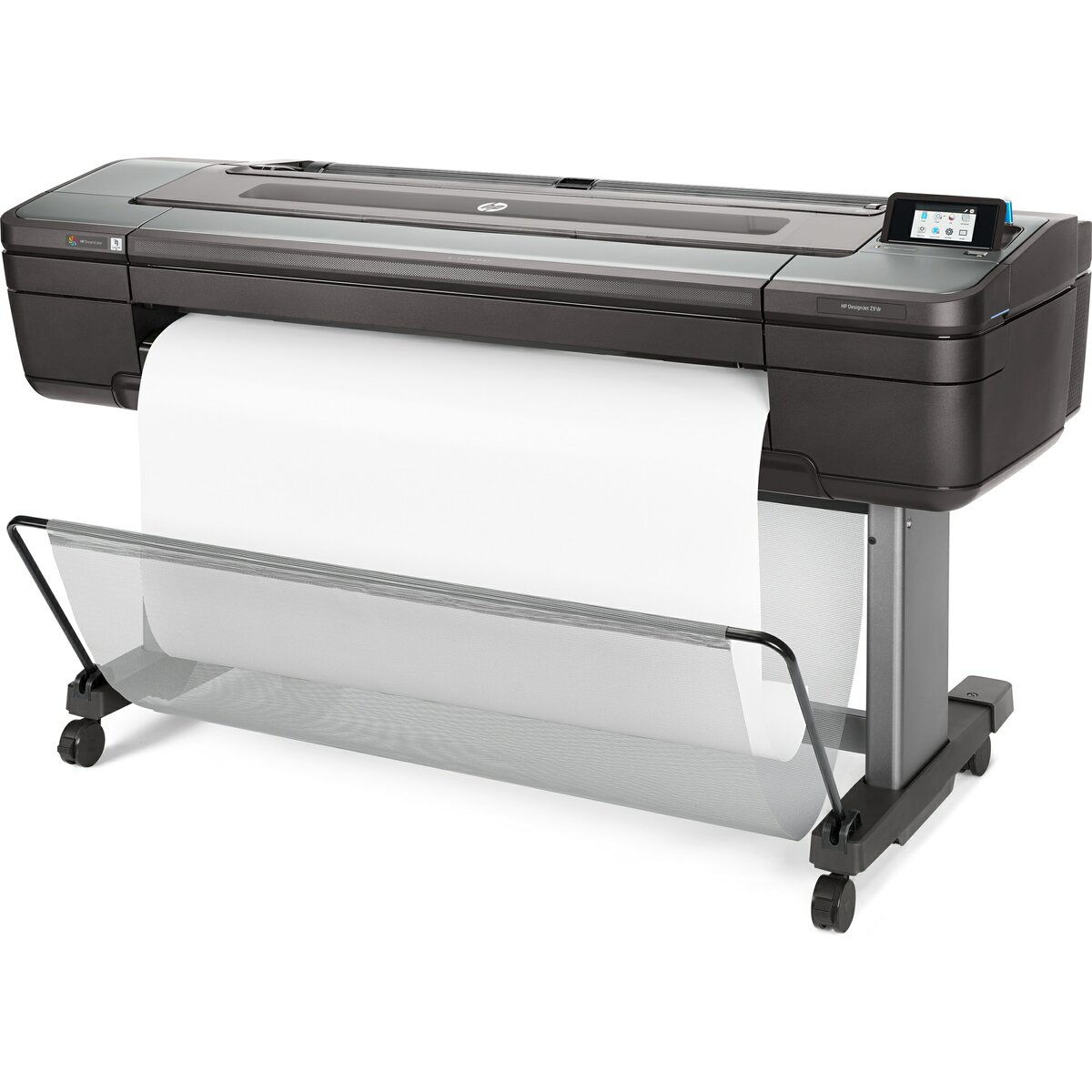

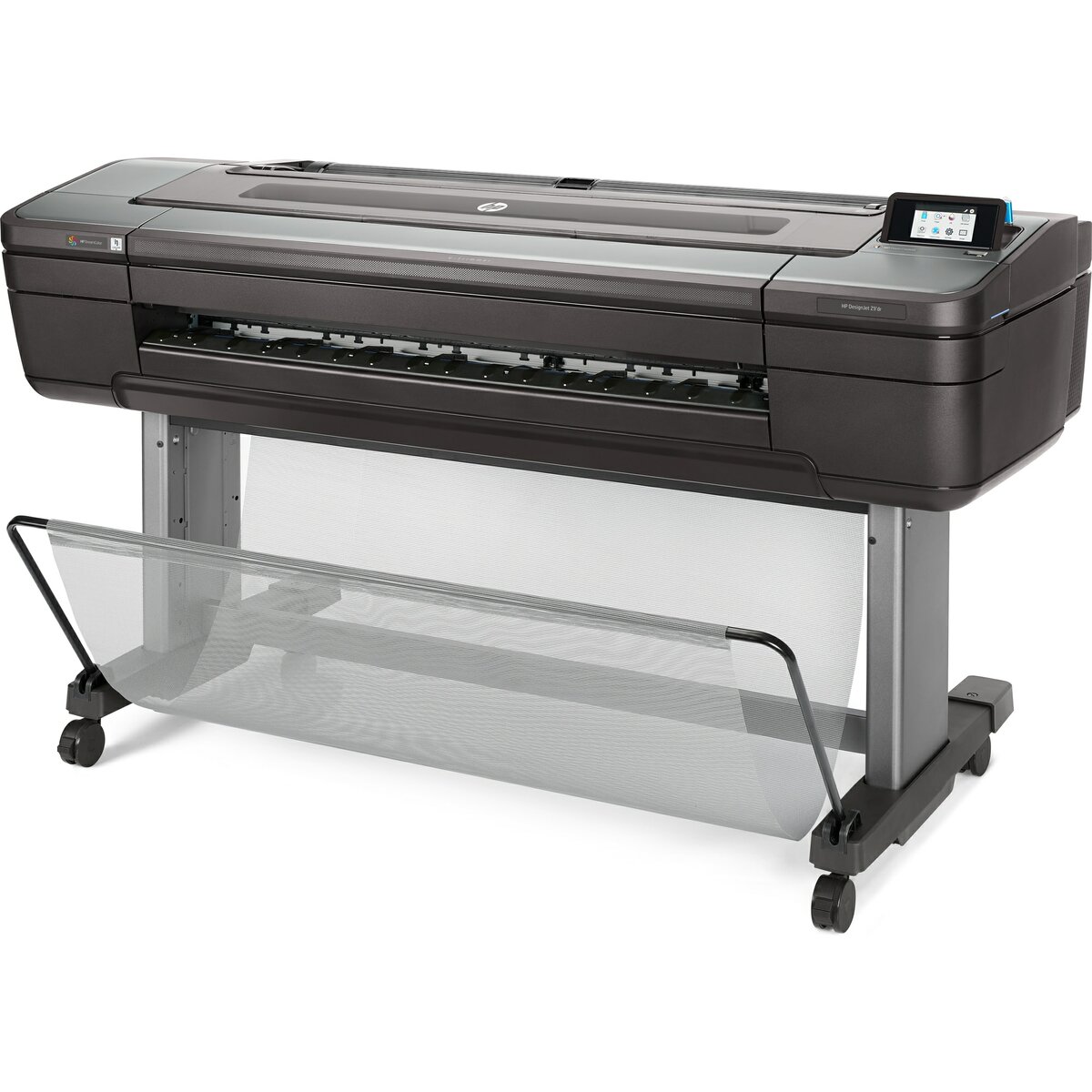

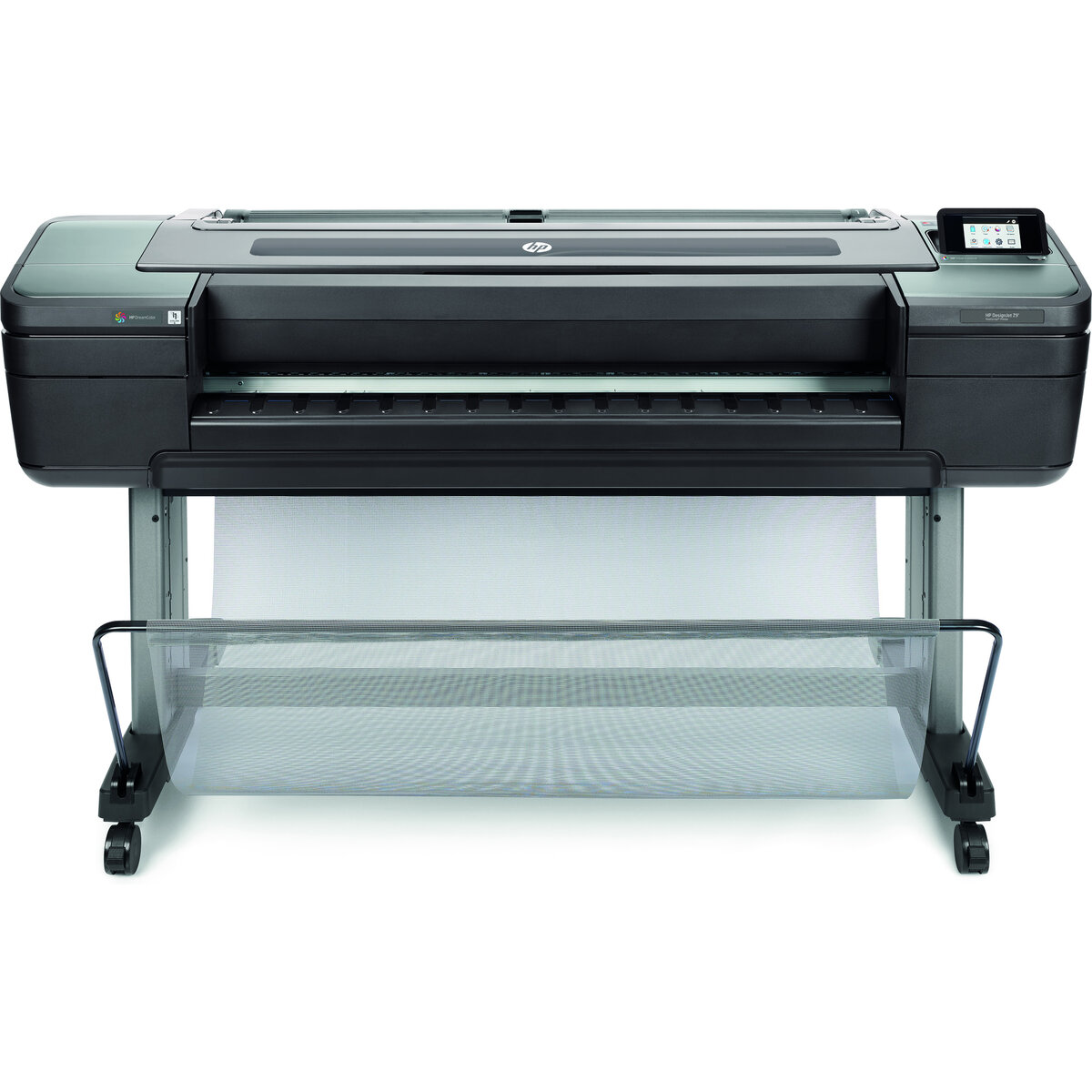

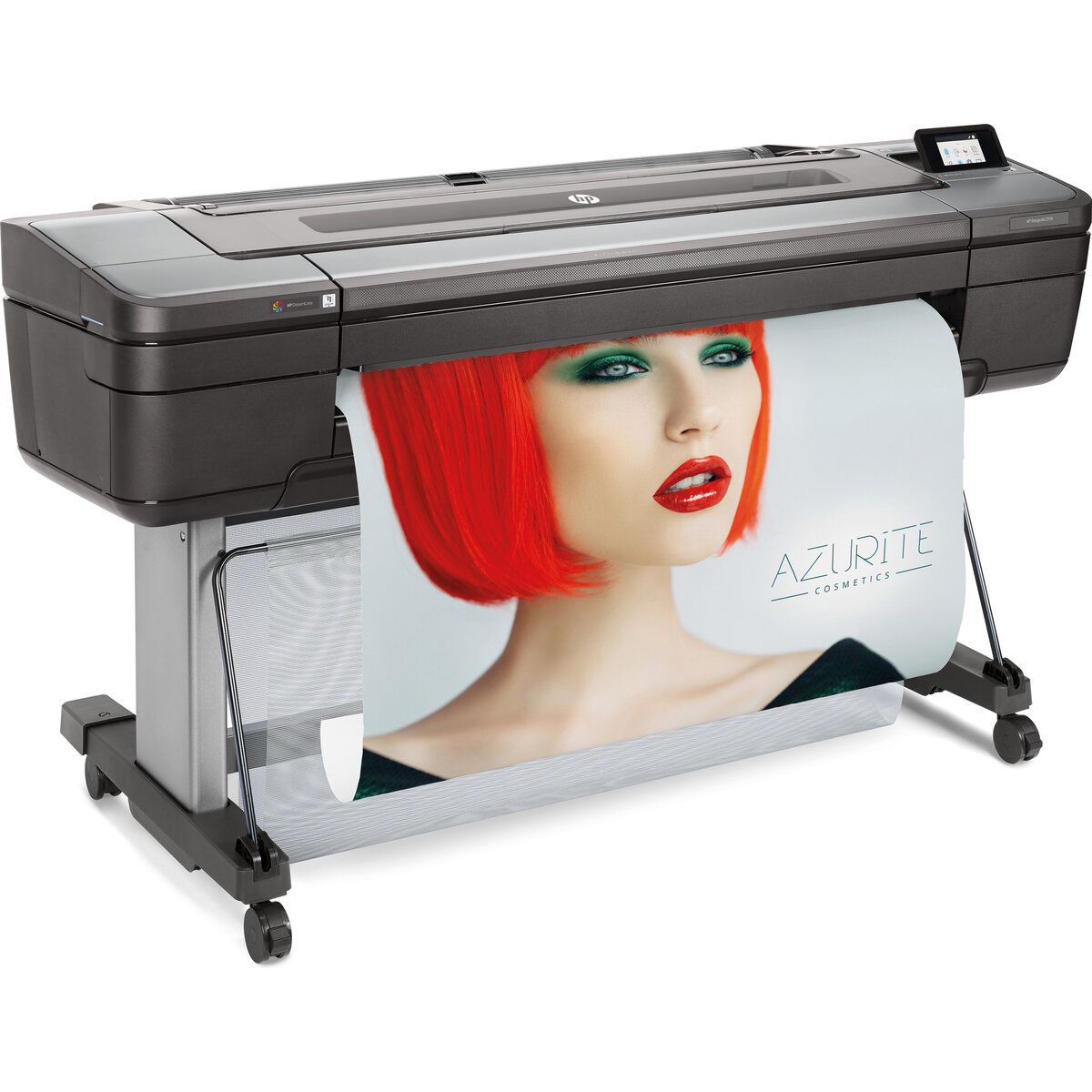

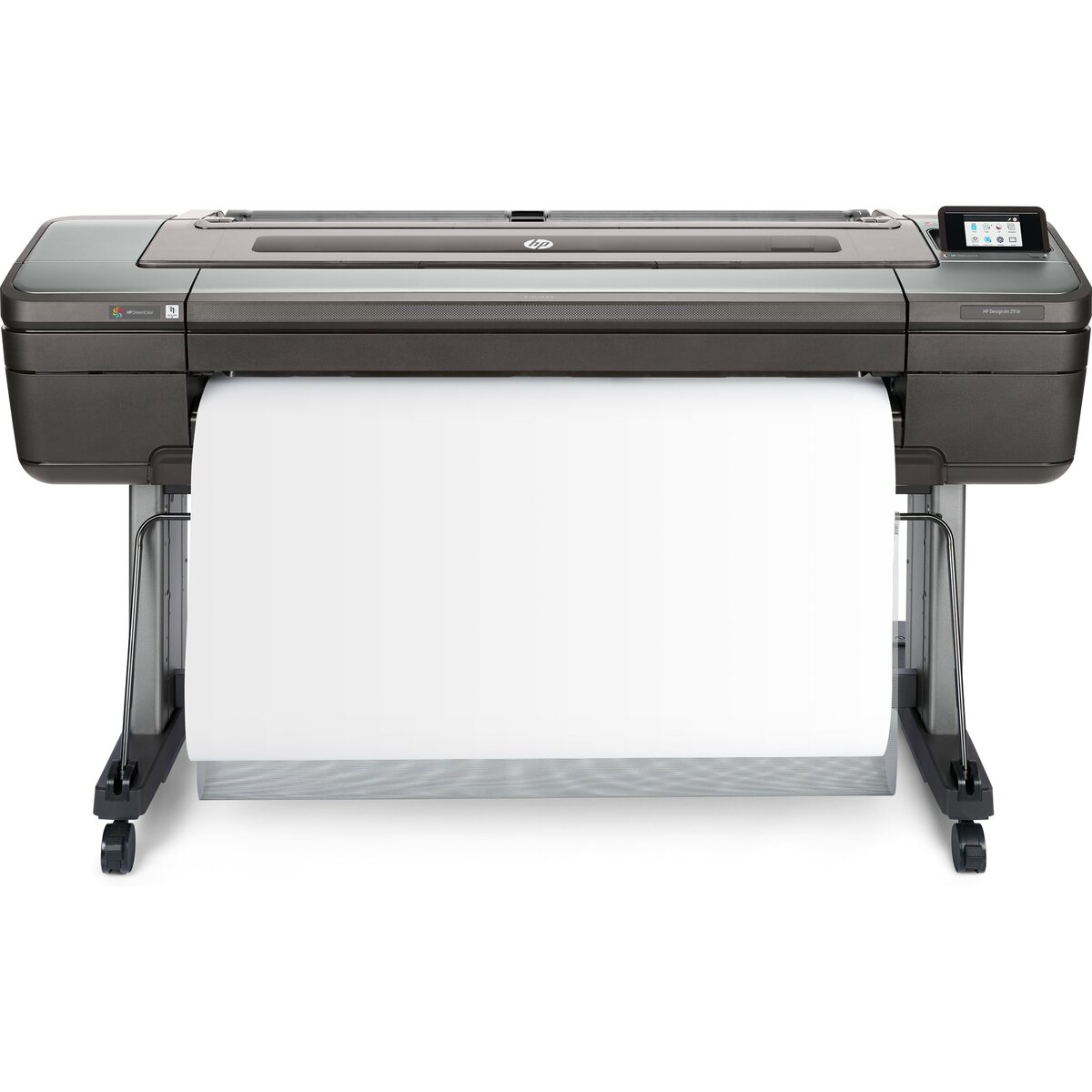

HP DesignJet Z9+dr PostScript
- Model size: 44 in
- Memory: 128 GB (virtual) 1
- Hard Drive: 500 GB self-encrypting
- Print speed maximum: Fast: 769 ft/hr on plain media; Normal: 185 ft/hr on coated media; Best: 48 ft/hr on glossy media 2
- Resolution: Up to 2400 x 1200 optimized dpi
- AMAZING—Deliver high quality with confidence: Produce professional photo-quality prints with smooth transitions using HP Pixel Control—no need for light inks with new high-definition HP printheads. Achieve expanded gamut with RGB HP Vivid Photo Inks. Upgrade to get superior gloss uniformity. 6
- FAST—Work without delays: Print 2.5 times faster 3 without losing quality with 2400 nozzle-per-inch high-definition printheads. Cut post-processing labor time up to 20% with the first printer to include an integrated vertical trimmer. 4 Save time with dual roll support. 4
- SIMPLE—New tools for you and your customers: Simplify your workflow. Easily design applications from posters to banners and canvas with the HP Applications Center. 5 Use your current RIPs. 7 Get remote visibility and control to better manage your print production environment with HP PrintOS.
| General Information | |
|---|---|
| Category | Inkjet printers |
| Description | HP DesignJet Z9+dr PostScript - 44" large-format printer - color - ink-jet - Roll (111.8 cm x 30.5 m) - 2400 x 1200 dpi - up to 73.9 sq.m/hour (mono) / up to 49.7 sq.m/hour (color) - capacity: 2 rolls - Gigabit LAN, USB host |
| Manufacturer | HP, Inc. |
| UNSPSC | 43212104 |
| Main Specifications | |
| Dimensions & Weight / Depth | 69.5 cm |
| Dimensions & Weight / Height | 99.8 cm |
| Dimensions & Weight / Weight | 98 kg |
| Dimensions & Weight / Width | 180.2 cm |
| Document & Media Handling / Large Format Printer Size | 44" |
| Header / Brand | HP |
| Header / Country Kits |
|
| Header / Localization |
|
| Miscellaneous / Product Color |
|
| Networking / Type | Print server |
| Office Machine / Functions | Printer |
| Office Machine / Printing Output Type | Color |
| Office Machine / Printing Technology | Ink-jet |
| Office Machine / Type | Printer |
| Packaged Quantity | 1 |
| PC Connectivity / PC Connection |
|
| Power Device / Type | Power supply |
| Printer / Connectivity Technology | Wired |
| Printer / Total Media Capacity | 2 rolls |
| Printer / Type | Large-format printer |
| Scanner / Type | None |
| Service & Support / Type | 1-year warranty |
| Dimensions & Weight | |
| Depth | 69.5 cm |
| Height | 99.8 cm |
| Weight | 98 kg |
| Width | 180.2 cm |
| Dimensions & Weight (JTFpping) | |
| Depth (JTFpping) | 76.6 cm |
| Height (JTFpping) | 71.8 cm |
| Weight (JTFpping) | 137 kg |
| Width (JTFpping) | 195 cm |
| Environmental Parameters | |
| Humidity Range Operating | 20 - 80% |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 5 °C |
| Sound Emission (Idle) | 33 dBA |
| Sound Emission (Operating) | 45 dBA |
| Environmental Standards | |
| ENERGY STAR | Yes |
| EPEAT Compliant | EPEAT Silver |
| Expansion / Connectivity | |
| Connections |
|
| General | |
| Localization | English, French, Portuguese, Spanish / Canada, Latin America, United States |
| Printer Type | 44" large-format printer - ink-jet - color |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Media Handling | |
| Max Media Size | Roll (111.8 cm x 30.5 m) |
| Max Media Size (Custom) | 1118 mm x 1676 mm |
| Max Printing Length | 30.5 m |
| Media Feeders | 1 x manual - 2 rolls - 1118 x 1676 mm 500 g/m² |
| Media Sizes | A4 (210 x 297 mm), A3 (297 x 420 mm), A2 (420 x 594 mm), A1 (594 x 841 mm), A0 (841 x 1189 mm), 210 x 279 mm, 1118 x 1676 mm |
| Media Type | Plain paper, vinyl, bond paper, film, backlit paper, translucent bond paper, photographic paper, glossy paper, matte paper, semi-gloss paper |
| Media Weight | 80 g/m² - 500 g/m² |
| Min Media Size (Custom) | 210 mm x 279 mm |
| Total Media Capacity | 2 rolls |
| Miscellaneous | |
| Compliant Standards | FCC Class B certified, CSA, CCC, PSB, IRAM, RoHS, EN 60950-1, ICES Class B, WEEE, REACH, KCC Class B, LVD, ERP, EMC Class B, VCCI Class B, EAC, BIS, SABS Class B, ACMA, RSM |
| Consumables Included |
|
| Features | Self-Encrypting Drive (SED) support, Adobe PDF Print Engine, V-Trimmer |
| Included Accessories | Spindle, media bin, stand, 3-inch spindle adapter kit |
| Networking | |
| Networking | Print server |
| Remote Management Protocol | HTTPS, IPPS |
| Security Protocols & Features | TLS, IPsec, 802.1x |
| Power | |
| Frequency Required | 50/60 Hz |
| Power Consumption Operational | 100 Watt |
| Power Consumption Sleep | 0.3 Watt |
| Power Consumption Stand by | 32 Watt |
| Power Device | Power supply - internal |
| Printer | |
| Color Management Features | PANTONE Digital Color |
| Connectivity Technology | Wired |
| Cutter | Yes |
| Ink Cartridge Configuration | 9 cartridges (1 each: cyan, magenta, chromatic red, yellow, matte black, photo black, chromatic green, chromatic blue, gray) |
| Ink Palette Supported (Colors) | 9-ink - cyan, magenta, yellow, matte black, photo black, chromatic red, chromatic green, chromatic blue, gray |
| Ink Type | HP Vivid Photo Inks |
| Inkjet Technology | HP Thermal Inkjet |
| Interface | Gigabit LAN, USB host |
| Language Simulation | PostScript 3, CALS G4, HP GL/2, PDF, TIFF, PDF 1.7, URF, JPEG |
| Max Resolution (B&W) | 2400 x 1200 dpi |
| Max Resolution (Color) | 2400 x 1200 dpi |
| Media Handling | 2 automatic roll feeds |
| Nozzle Configuration | 2112 nozzles |
| Print Speed |
|
| Printer Features | Print from mobile device, HP DreamColor |
| RAM | |
| RAM Installed (Max) | 4 GB |
| Software / System Requirements | |
| Software Included | HP Web JetAdmin, HP Embedded Web Server, HP Click, HP Partner Link, HP DesignJet Utility, HP Color Center, HP Applications Center, HP PrintOS |
| Storage | |
| Hard Drive | 500 GB |
Onsite Service
Following your purchase, JTF will assign an authorized service partner in your area to your account. Your service calls are processed and dispatched in just minutes after they are received, thus minimizing your downtimes. All service partners are authorized, factory trained and 100% endorsed by JTF Network Partners, with over 600 service dealers nationwide*
Same Day Onsite Service:
Same Day Service is provided at your business or home during the contracted Maintenance period.
Exceptions:
1) Your offices are 40 miles away from the closest service providers.
2) Service in HI, AK & PR.
Convenient Assistance:
Having device issues?
Experts are here 8am -6pm weekly to help solve your technical problems.
Fast, free replacements:
If we can’t fix your printer, we’ll try to replace it by the next business day.
No hidden fees:
Parts and labor, replacements, even return shipping — it’s all covered by your JTF Warranty.
Optional extra coverage:
Additional coverage to include supplies are available for purchase.
No Expert Install
$349.00 Expert Install
Installation Service for equipment includes the following:
JTF will schedule an appointment with one person per site. Unless otherwise requested and/or scheduled, the standard practice is to start all installation services within one week the delivery of the hardware to the customer’s location.
Unpacking: JTF will inventory the shipment against the packing list, unpack and install all delivered products.
Setup/Installation: JTF will physically assemble, connect peripherals, network cables, and power cords that were purchased from JTF.
a. This service provides installation of drivers on a single PC workstation (not server), network setup, including the programming of the IP address and network settings and verification of the network functionality, wireless connection setup and verification of the functionality over the Internet.
b. For configuration networking, the Customer can choose between automatic configuration using BOOTCP or Dynamic Host Configuration Protocol (DHCP), or manual configuration with IP address, default gateway, and subnet mask.
c. For multifunction products, the service provides setup of the ‘send to email configuration’ and configuration of the SMTP or LDAP.
d. This service provides the Customer-identified key operator with a basic overview on how to install consumables, plus explanations of basic features and functionality such as drivers, control panel features, embedded Web server, and alerts.
secure transaction
Quick Details
- 44" large-format printer
- color
- ink-jet
- Roll (111.8 cm x 30.5 m)
- 2400 x 1200 dpi
