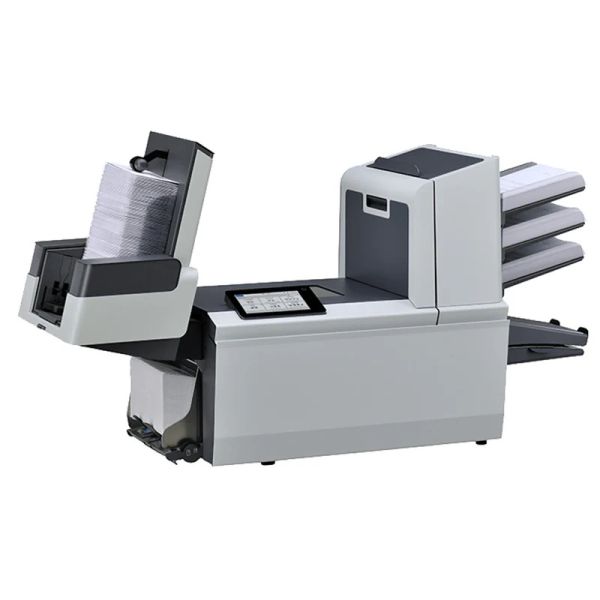

Formax FD 6308 ProFold Standard 2Fi Inserter
secure transactionFormax FD 6308 ProFold Standard 2Fi Inserter
The Formax FD 6308 ProFold Standard 2Fi Inserter is a reliable and efficient folder inserter designed for mid to high-volume mailing applications. It includes two feeder stations: one high-capacity document feeder and one standard feeder, providing flexibility in handling various document types and paper weights. The model comes equipped with advanced reading hardware and a Multi-Read License, enabling the accurate reading of OMR, 1D, and 2D barcodes for automatic job recognition and precise processing. A 7” full-color touchscreen simplifies operation and job management, while the double document detection ensures consistent, error-free output. Ideal for corporate mailrooms, financial institutions, and healthcare providers, the FD 6308 Standard 2Fi provides a combination of power, precision, and efficiency.
Formax FD 6308 - Comes Standard With:
- One high-capacity document feeder (up to 500 sheets of 20# bond paper)
- One standard feeder (up to 325 sheets of 20# bond paper)
- OMR, 1D, and 2D barcode reading hardware
- Multi-Read License for advanced document reading and verification
- 7” full-color touchscreen graphical interface for simple programming
- Top-loading envelope hopper (up to 325 envelopes capacity)
- Vertical output stacker (holds up to 500 filled envelopes)
- Supports C, V, Z, Double Parallel, and No Fold types
- Double document detection system for precise processing
- Eco mode for energy efficiency
- Sealing and non-sealing options available
- Clamshell design for easy maintenance
- Up to 50 programmable jobs
- Supports sheets (3.5"–14" H x 5"–9" W) and envelopes (3.5"–6.4" H x 5.5"–9.8" W)
-
Formax FD 6308 ProFold Standard 2Fi Inserter
| Product Name | Formax FD 6308 ProFold Standard 2Fi Inserter |
| Processing Speed | Up to 3,800 pieces per hour |
| Monthly Duty Cycle | Up to 40,000 pieces |
| Fold Types Supported | C, V, Z, Double Parallel, No Fold |
| High-Capacity Document Feeder | Holds up to 500 sheets of 20# bond paper |
| Standard Feeder | Holds up to 325 sheets of 20# bond paper |
| Reading Hardware | OMR, 1D, and 2D barcode reading system |
| Multi-Read License | Advanced document reading capabilities |
| Envelope Hopper Capacity | Up to 325 envelopes (top-loading) |
| Vertical Stacker Capacity | Up to 500 filled envelopes |
| Sheet Size Range | 3.5"–14" Height x 5"–9" Width |
| Envelope Size Range | 3.5"–6.4" Height x 5.5"–9.8" Width |
| Programmable Jobs | Up to 50 programmable jobs |
| Maximum Insert Thickness | 1 mm |
| Maximum Set Thickness | 2.5 mm |
| Control Interface | 7" full-color touchscreen graphical interface |
| Energy Efficiency | Eco mode available |
| Sealing Capability | Sealing and non-sealing modes supported |
| Document Detection | Double document detection system |
| Clamshell Design | Easy access to paper path for maintenance |
Popup Text
No Expert Install
$349.00 Expert Install
Installation Service for equipment includes the following:
JTF will schedule an appointment with one person per site. Unless otherwise requested and/or scheduled, the standard practice is to start all installation services within one week the delivery of the hardware to the customer’s location.
Unpacking: JTF will inventory the shipment against the packing list, unpack and install all delivered products.
Setup/Installation: JTF will physically assemble, connect peripherals, network cables, and power cords that were purchased from JTF.
a. This service provides installation of drivers on a single PC workstation (not server), network setup, including the programming of the IP address and network settings and verification of the network functionality, wireless connection setup and verification of the functionality over the Internet.
b. For configuration networking, the Customer can choose between automatic configuration using BOOTCP or Dynamic Host Configuration Protocol (DHCP), or manual configuration with IP address, default gateway, and subnet mask.
c. For multifunction products, the service provides setup of the ‘send to email configuration’ and configuration of the SMTP or LDAP.
d. This service provides the Customer-identified key operator with a basic overview on how to install consumables, plus explanations of basic features and functionality such as drivers, control panel features, embedded Web server, and alerts.
