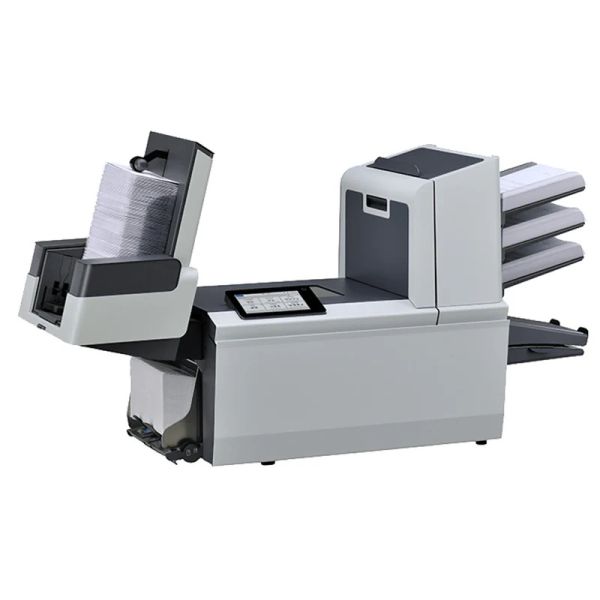

Formax FD 6308 ProFold Special 2Fi Inserter
secure transactionFormax FD 6308 ProFold Special 2Fi Inserter
The Formax FD 6308 ProFold Special 2Fi Inserter is a high-performance, fully automated folder inserter designed for demanding mid to high-volume mailing applications. It includes two feeder stations: one high-capacity document feeder and one special feeder located at the bottom, enabling seamless handling of a wide variety of document types, cards, and inserts. Equipped with advanced reading hardware and a Multi-Read License, the unit reliably reads OMR, 1D, and 2D barcodes for precise job selection and document processing. Featuring a 7” full-color touchscreen interface, the system provides easy job programming, intuitive operation, and efficient management of up to 50 programmable jobs. Ideal for corporate mailrooms, financial organizations, and healthcare providers, the FD 6308 Special 2Fi delivers superior speed, accuracy, and flexibility.
Formax FD 6308- Comes Standard With:
- One high-capacity document feeder (holds up to 500 sheets of 20# bond paper)
- One special feeder (bottom-positioned) for inserts, cards, or labels
- OMR, 1D, and 2D barcode reading hardware
- Multi-Read License for advanced reading capabilities
- 7” full-color touchscreen graphical interface for easy operation
- Top-loading envelope hopper (up to 325 envelopes capacity)
- Vertical output stacker (up to 500 filled envelopes)
- Supports C, V, Z, Double Parallel, and No Fold types
- Double document detection system for high accuracy
- Eco mode for reduced power consumption
- Sealing and non-sealing modes available
- Clamshell design for easy access and maintenance
- Up to 50 programmable jobs
- Supports sheets (3.5"–14" H x 5"–9" W) and envelopes (3.5"–6.4" H x 5.5"–9.8" W)
Formax FD 6308 ProFold Special 2Fi Inserter
| Product Name | Formax FD 6308 ProFold Special 2Fi Inserter |
| Processing Speed | Up to 3,800 pieces per hour |
| Monthly Duty Cycle | Up to 40,000 pieces |
| Fold Types Supported | C, V, Z, Double Parallel, No Fold |
| High-Capacity Document Feeder | Holds up to 500 sheets of 20# bond paper |
| Special Feeder | Bottom-positioned special feeder for inserts, cards, or labels |
| Reading Hardware | OMR, 1D, and 2D barcode reading system |
| Multi-Read License | Advanced document reading capabilities |
| Envelope Hopper Capacity | Up to 325 envelopes (top-loading) |
| Vertical Stacker Capacity | Up to 500 filled envelopes |
| Sheet Size Range | 3.5"–14" Height x 5"–9" Width |
| Envelope Size Range | 3.5"–6.4" Height x 5.5"–9.8" Width |
| Programmable Jobs | Up to 50 programmable jobs |
| Maximum Insert Thickness | 1 mm |
| Maximum Set Thickness | 2.5 mm |
| Control Interface | 7" full-color touchscreen graphical interface |
| Energy Efficiency | Eco mode available |
| Sealing Capability | Supports sealing and non-sealing operations |
| Document Detection | Double document detection system |
| Clamshell Design | Easy access to paper path for maintenance |
Popup Text
No Expert Install
$349.00 Expert Install
Installation Service for equipment includes the following:
JTF will schedule an appointment with one person per site. Unless otherwise requested and/or scheduled, the standard practice is to start all installation services within one week the delivery of the hardware to the customer’s location.
Unpacking: JTF will inventory the shipment against the packing list, unpack and install all delivered products.
Setup/Installation: JTF will physically assemble, connect peripherals, network cables, and power cords that were purchased from JTF.
a. This service provides installation of drivers on a single PC workstation (not server), network setup, including the programming of the IP address and network settings and verification of the network functionality, wireless connection setup and verification of the functionality over the Internet.
b. For configuration networking, the Customer can choose between automatic configuration using BOOTCP or Dynamic Host Configuration Protocol (DHCP), or manual configuration with IP address, default gateway, and subnet mask.
c. For multifunction products, the service provides setup of the ‘send to email configuration’ and configuration of the SMTP or LDAP.
d. This service provides the Customer-identified key operator with a basic overview on how to install consumables, plus explanations of basic features and functionality such as drivers, control panel features, embedded Web server, and alerts.
