Formax FD 2350 High-Volume Production - Pile Feed
Formax FD 2350 High-Volume Production - Pile Feed

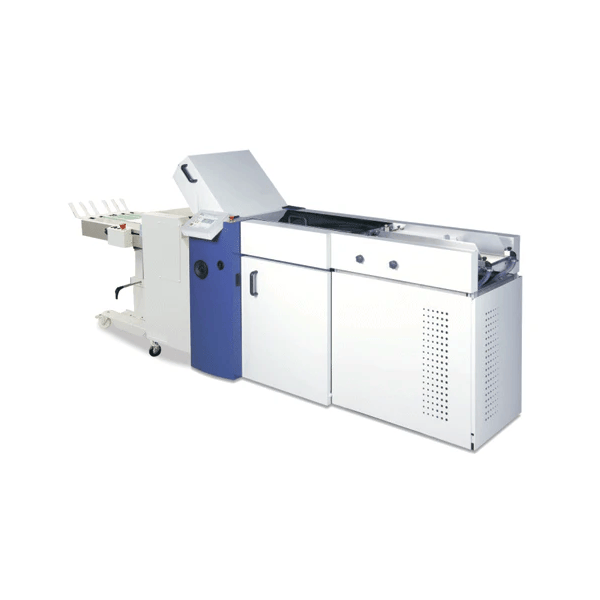

The Formax AutoSeal® FD 2350 is a high-volume production pressure sealer designed for large-scale operations that demand speed, reliability, and minimal interruptions. Unlike air-feed models, the FD 2350 features a pile-feed system with a capacity of up to 3,500 sheets, allowing long production runs without frequent reloading.
Engineered for heavy-duty performance, the FD 2350 processes up to 43,000 forms per hour and offers an unlimited duty cycle, making it ideal for payroll, billing, direct mail, and other high-volume applications. The color touchscreen control panel, fully automated fold settings, and storage for 200 custom jobs provide unmatched convenience and efficiency.
Safety and reliability are built-in with jam detection, static elimination, and insulated fold plates for quieter operation. Optional accessories, including the V-STACK36i vertical stacker, enhance output handling and productivity.
Formax FD 2350 High-Volume Production - Pile Feed
-
Pile-feed system with up to 3,500-sheet capacity
-
Graphics-based color touchscreen control panel
-
Fully automated fold and seal adjustments
-
200 programmable jobs for quick setup and recall
-
Resettable and batch counters for production tracking
-
Adjustable 28″–42″ conveyor with photo-eye sensor
-
Steel/polyurethane rollers and insulated fold plates for quiet operation
-
Jam detection, static eliminators, and safety interlocks
Formax FD 2350 High-Volume Production - Pile Feed
| Model | Formax AutoSeal® FD 2350 – Pile Feed |
| Speed | Up to 43,000 sheets per hour |
| Duty Cycle | Unlimited – built for continuous production |
| Feeding System | Pile-feed system |
| Hopper Capacity | Up to 3,500 sheets (24 lb / 90 gsm) |
| Form Size | Up to 11.5″ wide × 25″ long (292 × 635 mm) |
| Fold Types | Z, uneven Z, C, half, custom; 20 standard folds programmable |
| Programmable Jobs | Stores up to 200 custom fold/seal jobs |
| User Interface | Graphics-based color touchscreen |
| Counters | Resettable counter, batch counter |
| Output Conveyor | Adjustable 28″–42″ conveyor with photo-eye for neat stacking |
| Rollers & Plates | Steel and polyurethane rollers; insulated fold plates for quiet use |
| Safety Features | Jam detection, interlocks, static eliminator |
| Options | V-STACK36i vertical stacker, two-up form kit, additional accessories |
Popup Text
No Expert Install
$349.00 Expert Install
Installation Service for equipment includes the following:
JTF will schedule an appointment with one person per site. Unless otherwise requested and/or scheduled, the standard practice is to start all installation services within one week the delivery of the hardware to the customer’s location.
Unpacking: JTF will inventory the shipment against the packing list, unpack and install all delivered products.
Setup/Installation: JTF will physically assemble, connect peripherals, network cables, and power cords that were purchased from JTF.
a. This service provides installation of drivers on a single PC workstation (not server), network setup, including the programming of the IP address and network settings and verification of the network functionality, wireless connection setup and verification of the functionality over the Internet.
b. For configuration networking, the Customer can choose between automatic configuration using BOOTCP or Dynamic Host Configuration Protocol (DHCP), or manual configuration with IP address, default gateway, and subnet mask.
c. For multifunction products, the service provides setup of the ‘send to email configuration’ and configuration of the SMTP or LDAP.
d. This service provides the Customer-identified key operator with a basic overview on how to install consumables, plus explanations of basic features and functionality such as drivers, control panel features, embedded Web server, and alerts.
