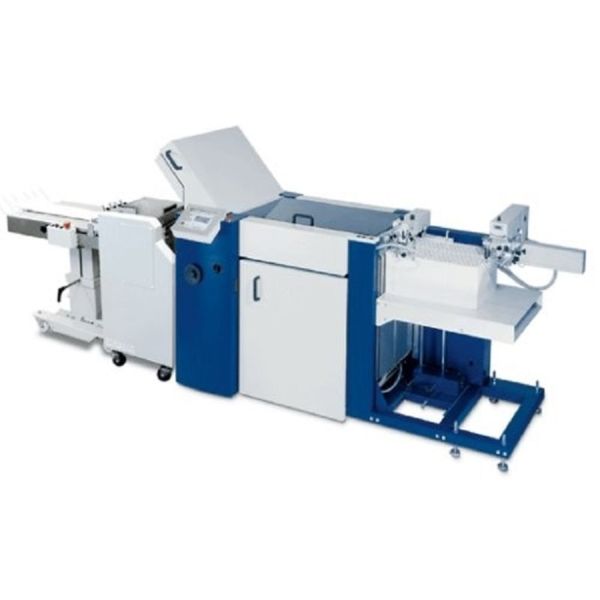

Formax FD 2300-EXT High-Volume Production – Air Feed
secure transactionThe Formax AutoSeal® FD 2300-EXT is a high-volume production pressure sealer designed for organizations with large-scale document processing needs. Equipped with an extended air-feed table, it offers a significantly larger in-feed capacity, holding up to 2,500 sheets for uninterrupted operation.
This model delivers production-level performance with speeds of up to 43,000 sheets per hour, making it ideal for payroll, billing statements, direct mail, and other pressure-sensitive documents. The color touchscreen control panel and fully automated setup simplify operation, while up to 200 programmable jobs allow fast recall of repeat tasks.
The FD 2300-EXT ensures accuracy, efficiency, and security with features such as jam detection, static eliminators, and noise-reduction design. Optional output accessories like the V-STACK36i vertical stacker further enhance productivity in demanding environments.
Formax FD 2300-EXT High-Volume Production – Air Feed Comes Standard with:
-
Extended air-feed table (capacity up to 2,500 sheets)
-
Graphics-based color touchscreen control panel
-
Fully automated fold and seal adjustments
-
200 programmable jobs for quick setup and recall
-
Adjustable 28″–42″ conveyor with photo-eye sensor
-
Resettable and batch counters for production tracking
-
Steel/polyurethane rollers and insulated fold plates for quiet operation
-
Jam detection and safety interlocks
-
Static eliminators for reliable feeding and sealing
Formax FD 2300-EXT High-Volume Production – Air Feed
| Model | Formax AutoSeal® FD 2300-EXT – Air Feed |
| Speed | Up to 43,000 sheets per hour |
| Duty Cycle | Unlimited – built for continuous production |
| Feeding System | Extended air-feed (bottom suction) |
| Hopper Capacity | Up to 2,500 sheets (24 lb / 90 gsm) |
| Form Size | Up to 11.5″ wide × 25″ long (292 × 635 mm) |
| Fold Types | Z, uneven Z, C, half, custom; 20 standard folds programmable |
| Programmable Jobs | Stores up to 200 custom fold/seal jobs |
| User Interface | Graphics-based color touchscreen |
| Counters | Resettable counter, batch counter |
| Output Conveyor | Adjustable 28″–42″ conveyor with photo-eye for neat stacking |
| Rollers & Plates | Steel and polyurethane rollers; insulated fold plates for quiet use |
| Safety Features | Jam detection, interlocks, static eliminator |
| Options | V-STACK36i vertical stacker, two-up form kit, additional accessories |
Popup Text
No Expert Install
$349.00 Expert Install
Installation Service for equipment includes the following:
JTF will schedule an appointment with one person per site. Unless otherwise requested and/or scheduled, the standard practice is to start all installation services within one week the delivery of the hardware to the customer’s location.
Unpacking: JTF will inventory the shipment against the packing list, unpack and install all delivered products.
Setup/Installation: JTF will physically assemble, connect peripherals, network cables, and power cords that were purchased from JTF.
a. This service provides installation of drivers on a single PC workstation (not server), network setup, including the programming of the IP address and network settings and verification of the network functionality, wireless connection setup and verification of the functionality over the Internet.
b. For configuration networking, the Customer can choose between automatic configuration using BOOTCP or Dynamic Host Configuration Protocol (DHCP), or manual configuration with IP address, default gateway, and subnet mask.
c. For multifunction products, the service provides setup of the ‘send to email configuration’ and configuration of the SMTP or LDAP.
d. This service provides the Customer-identified key operator with a basic overview on how to install consumables, plus explanations of basic features and functionality such as drivers, control panel features, embedded Web server, and alerts.
