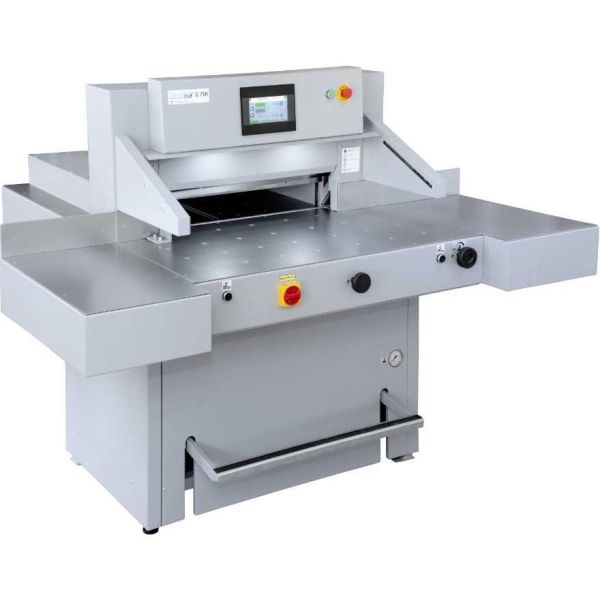

Formax Cut-True 31H Hydraulic Guillotine Paper Cutter
secure transactionFormax Cut-True 31H Hydraulic Guillotine Paper Cutter
The Formax Cut-True 31H Hydraulic Guillotine Paper Cutter is a high-capacity, industrial-grade paper cutter engineered for precision and efficiency in high-volume environments. With the ability to cut sheets up to 28.7” (730 mm) wide and paper stacks up to 3.94” (100 mm) high, it delivers razor-sharp, accurate cuts with a precision of 0.1 mm. The system utilizes a hydraulically-controlled blade and clamp drive, ensuring consistent performance for demanding two-shift operations.
Designed for user convenience, the Cut-True 31H features a color touchscreen for easy job programming and adjustments, an automatically-adjusting back gauge, and the capacity to store up to 100 programmable jobs. The LED laser cut line and infrared safety curtain provide precision and safety during operation. An anti-friction ball deck with air-assist makes handling large paper stock effortless, while the robust construction, large side tables, and advanced safety features (key lock, blade lock, blade change safety tool) make it ideal for professional print shops and in-plant finishing operations.
Formax Cut-True 31H-Comes Standard With:
- Dual-button hydraulic operation for safety
- Hardened steel blade for precision and long life
- LED laser cut line for exact alignment
- Color touchscreen control panel with up to 100 programmable jobs
- Infrared light beam safety curtain for operator safety
- Automatically-adjusting back gauge for precision setup
- Foot pedal pre-clamp to hold paper in place before cutting
- Anti-friction ball deck with air-assist for easy handling of large paper sheets
- False clamp to minimize marking sensitive paper stock
- Hydraulic pressure gauge and adjustment knob
- Internal light to illuminate cutting area
- Solid steel blade carrier for stability
- Wide side tables to handle large-format media
- Automatic blade return from any position
- Blade change safety tool kit included
- Electronic fine-tuning back gauge switch
- Business card cutting mode
- CE certified safety compliance
Formax Cut-True 31H Hydraulic Guillotine Paper Cutter
| Product Name | Formax Cut-True 31H Hydraulic Guillotine Paper Cutter |
| Cutting Action | Dual-button hydraulic operation |
| Maximum Cutting Width | 28.7” (730 mm) |
| Maximum Paper Stack Height | 3.94” (100 mm) |
| Programmable Jobs | Up to 100 jobs / 100 steps |
| Minimum Cut w/False Clamp | 2.36” (60 mm) |
| Minimum Cut w/o False Clamp | 1.18” (30 mm) |
| Table Size w/Side Tables | 72.75” W x 25.125” D (1848 x 638 mm) |
| Table Size w/o Side Tables | 43.12” W x 21.125” D (1095 x 537 mm) |
| Clamp Style | Automatic, Hydraulic |
| Hydraulic Pressure Range | 700 - 4,500 psi (49 - 316 kg/cm²) |
| Back Gauge Adjustment | Electronic fine-tuning switch, accurate to 0.1 mm |
| Blade Change Safety Tool | Included |
| Infrared Safety Curtain | Stops operation if beam is interrupted |
| Foot Pedal Pre-Clamp | Holds paper in place to check alignment |
| LED Cutting Line | Yes |
| False Clamp | Included – reduces risk of marking sensitive stock |
| Dimensions (Standard) | 73” W x 69” D x 59.9” H (1857 x 1754 x 1445 mm) |
| Weight | 1,323 lbs (600 kg) |
| Power Supply | 208V, 60Hz, 30A dedicated line |
Popup Text
No Expert Install
$349.00 Expert Install
Installation Service for equipment includes the following:
JTF will schedule an appointment with one person per site. Unless otherwise requested and/or scheduled, the standard practice is to start all installation services within one week the delivery of the hardware to the customer’s location.
Unpacking: JTF will inventory the shipment against the packing list, unpack and install all delivered products.
Setup/Installation: JTF will physically assemble, connect peripherals, network cables, and power cords that were purchased from JTF.
a. This service provides installation of drivers on a single PC workstation (not server), network setup, including the programming of the IP address and network settings and verification of the network functionality, wireless connection setup and verification of the functionality over the Internet.
b. For configuration networking, the Customer can choose between automatic configuration using BOOTCP or Dynamic Host Configuration Protocol (DHCP), or manual configuration with IP address, default gateway, and subnet mask.
c. For multifunction products, the service provides setup of the ‘send to email configuration’ and configuration of the SMTP or LDAP.
d. This service provides the Customer-identified key operator with a basic overview on how to install consumables, plus explanations of basic features and functionality such as drivers, control panel features, embedded Web server, and alerts.
